Manual Toddler Roller v. 3.3
Picture 4, only for the Scooter 2.0 / Scooter S / Scooter 4, Scooter
4S / Viking toddler roller

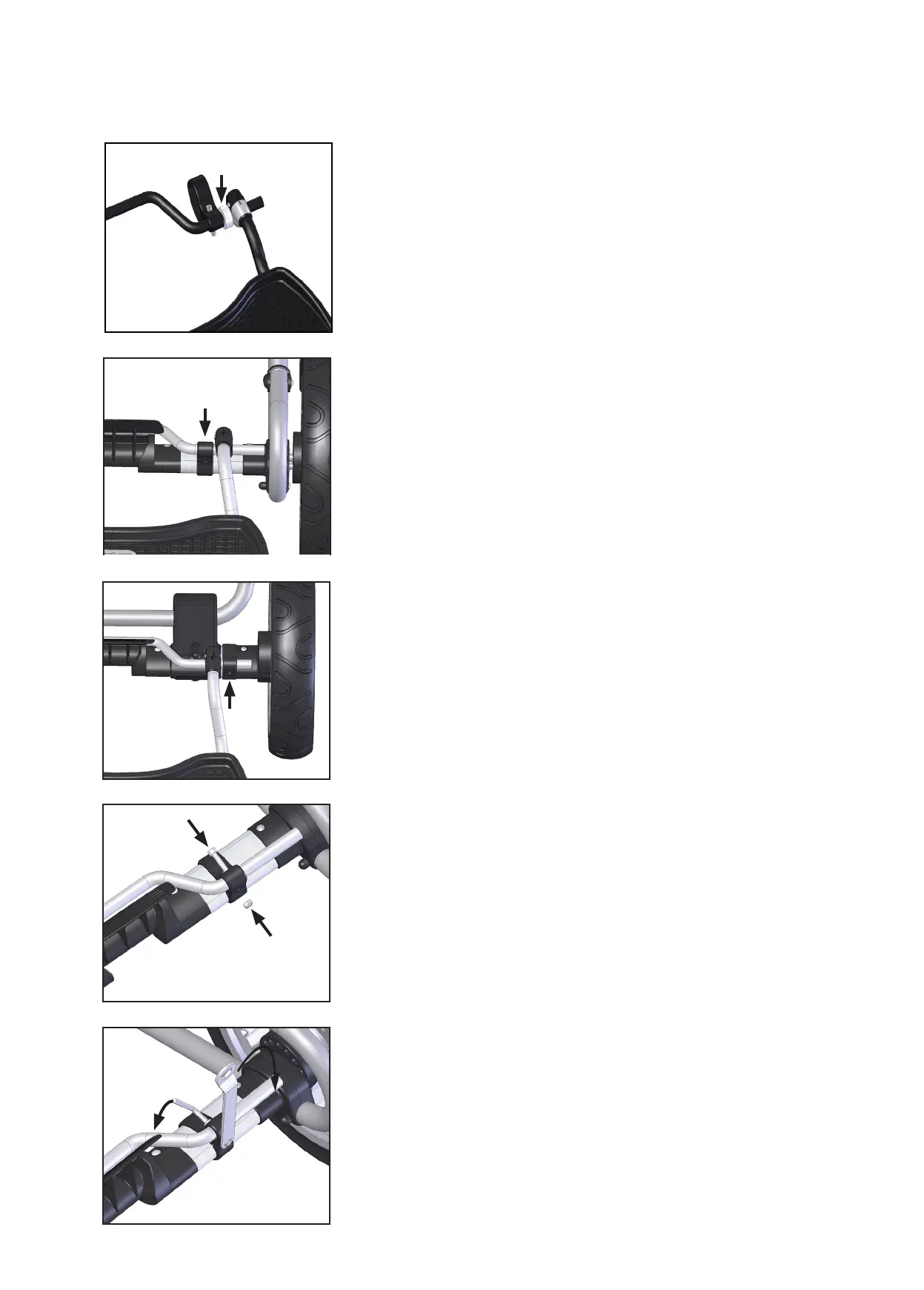

• To avoid the Toddler Roller moving from sideways when in use,
place the spacers between the Toddler Roller attachment and the
Toddler Roller arm om both sides.
• Place the Toddler Roller against the adaptor bar and ensure that
there will be at least a 1mm gap between the brake axle attach-
ments and the Toddler Roller arm attachment points.
• Depending on the pram model, the brake axle attachments can be
placed either on the inside…
• Use the allen key and the ring spanner to tighten the bolts.
• Tighten the bolts to prevent any sideways movement of the adaptor
bar.
Assembly of the adaptor
• Attach the adaptor to the brake axle using the M5 bolt and M5 nut
on both sides of the adaptor bar.
IMPORTANT
• Make sure that the adaptor bar is positioned above the brake pedal
and check that the brake pedal is free to operate.
…or on the outside of the Toddler Roller attachment points.
IMPORTANT!
• Depending on the pram model, you may nd the Toddler Roller may
lean a little forward or backwards. This is not a cause for complaint
as it is the result of the product being compatible with many diffe-
rent Emmaljunga pram models.
