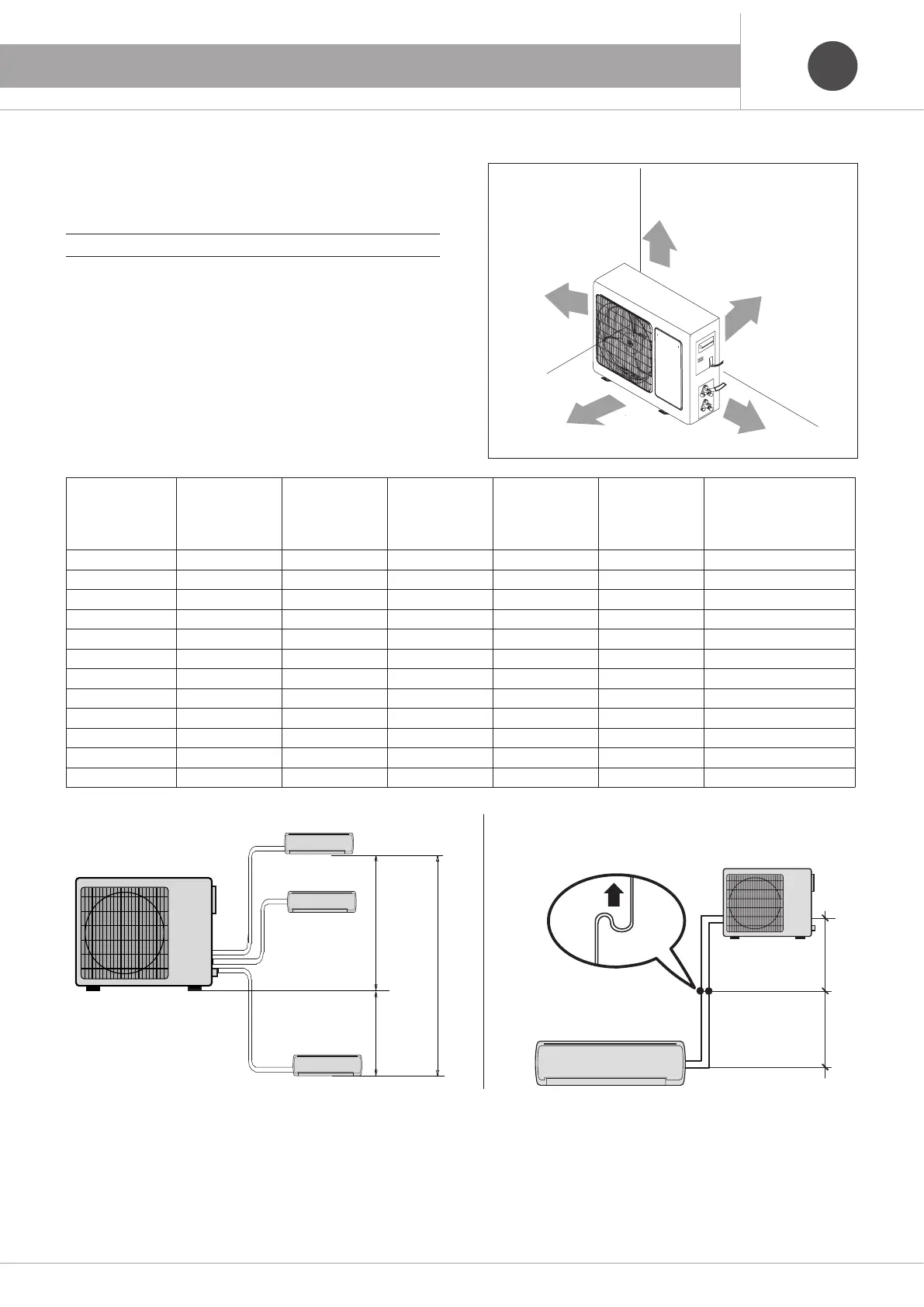

12
ITIT
A
Unità interna
B
B
Massima differenza
in altezza
Unità Esterna
Unità interna
Unità interna
Le unità interne vengono collegate all'unità esterma mediante tubazioni in rame.
È consentito un massimo di 10 curvature , oltre questo numero non si garantiscono più il corretto funzionamento e la resa dichiarata del climatizzatore.
In caso di installazione dell’unità interna più bassa dell’unità esterna con dislivello superiore a 5 metri realizzare un sifone trappola olio intermedio.
Attenzione! - Il sifone deve essere realizzato su entrambe le tubazioni.
A
D
E
C
B
1/2
1/2
Unità esterna
Unità interna
SIFONE
A (mm) B (mm) C (mm) D (mm) E (mm)
> 300 > 600 > 300 > 2000 > 600
5.3 Distanza tra le unità
5.2 Distanze minime funzionali
UNITÀ ESTERNA
Modello
Dislivello
massimo
tra U. Interna e
U. Interna (A)
Dislivello
massima
tra U. Interna
e U. Esterna (B)
Distanza
massima
tra U. Interna
e U. Esterna
Lunghezza
massima
totale
dei tubi
Lunghezza
totale
standard (m)
Carica addizionale di
gas oltre la lunghezza
totale standard (g/m)
m m m m m g/m
X-REVO-0919E - 5 15 15 5 20
X-REVO-1219E - 5 15 15 5 20
X-REVO-1819E - 5 15 15 5 20
X-REVO-2419E - 5 15 15 5 30
X-REVO-0919EX - 10 25 25 5 12
X-REVO-1219EX - 15 25 25 5 12
X-REVO-1819EX - 15 30 30 5 12
X-REVO-1419DE 7.5 15 15 30 15 12
X-REVO-1819DE 7.5 15 15 30 15 12
X-REVO-2419TE 7.5 15 20 45 15 12
X-REVO-3619QE 7.5 15 20 60 20 12
5. POSIZIONAMENTO DELL'UNITÀ
