144 Kabeldragning Emotron AB 01-3991-11r2
(2) IP20 chassi 2: Enfas VSA 23-07, -10
Trefas VSA 48-002, -004, -005

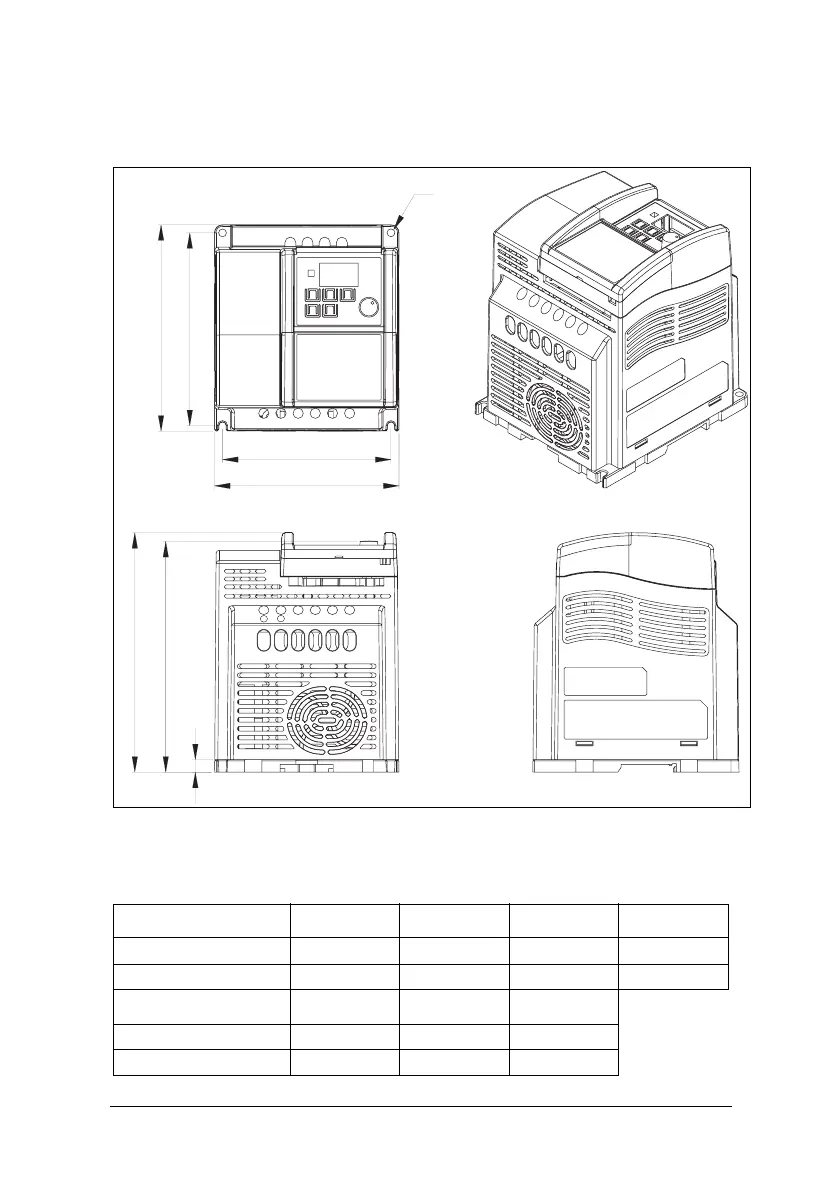

Fig. 34 Mått, omriktarchassi 2 VSA
Tabell 67 Mått i mm/tum
Mått, mm/tum A B C D
Chassi 1 132/5,2 123,5/4,86 67/2,64 77/3,03
Chassi 2 132/5,2 123,5/4,86 108/4,25 118/4,65
Mått, mm/tum E F G
Chassi 1 130,5/5,13 128,45/5,06 8/0,315
Chassi 2 148/5,83 144/5,67 8/0,315
A
B
D
C
F E
G
4- Ø*4.5
L1(L) L2 L3(N) PE
T1 T2 T3 PE
+
-
+ - T3 PET2T1
+
-
T3
PE
T2
T1
