36 Introduction Emotron AB 01-3991-11r2
ENGLISH
Introduction
This guide is designed to assist in installing and running the variable speed drive
to verify that the drive and motor are working properly. Starting, stopping and
speed control will be from the keypad. If your application requires external con-
trol or special system programming, consult the VSA Instruction Manual sup-
plied with your variable speed drive.
Step 1 Before starting the variable speed drive
Please refer to the chapters Preface and Safety Precautions in the VSA Instruc-
tion Manual. Verify that the drive is installed in accordance with the procedures
described in the chapter Environment description and installation. If not, do
not start the drive until qualified personnel have corrected the installation. (Fail-
ure to do so could result in serious injury.)
• Check VSD and motor nameplates to determine that they have the same
power and voltage ratings. (Ensure that full load motor current does not
exceed that of the VSD.)
• Remove the terminal cover to expose the motor and power terminals.
a. Verify that AC power is wired to L1, L2, and L3.
b. Verify that motor leads are connected to T1, T2, and T3.
c. If a brake module is necessary, please connect terminal voltage of the brak-
ing unit to + and - of the VSD.

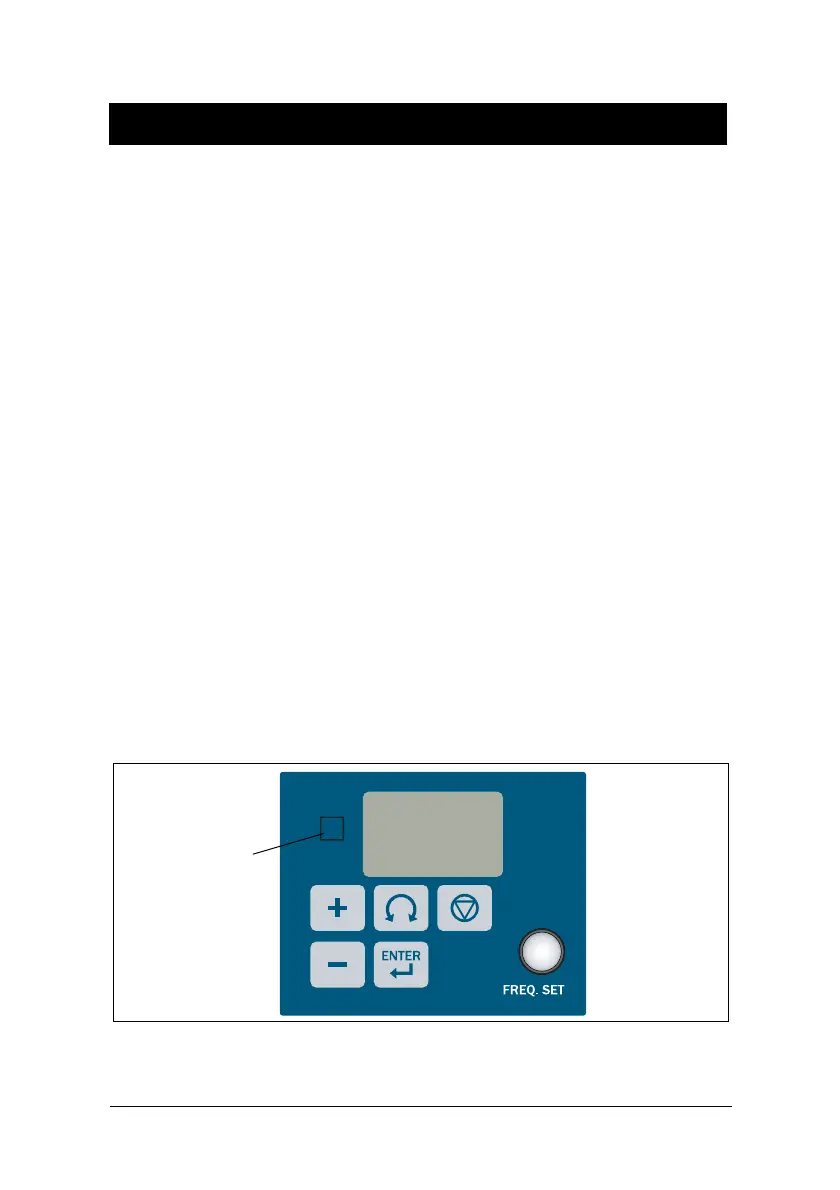

Fig. 8 Panel
Power
indicator
