Emotron VSA Series User Manual

Emotron AB 01-3991-11r2 Wiring notes 45
(2) IP20 Frame 2: Single phase VSA 23-07, -10
Three phase VSA 48-002, -004, -005

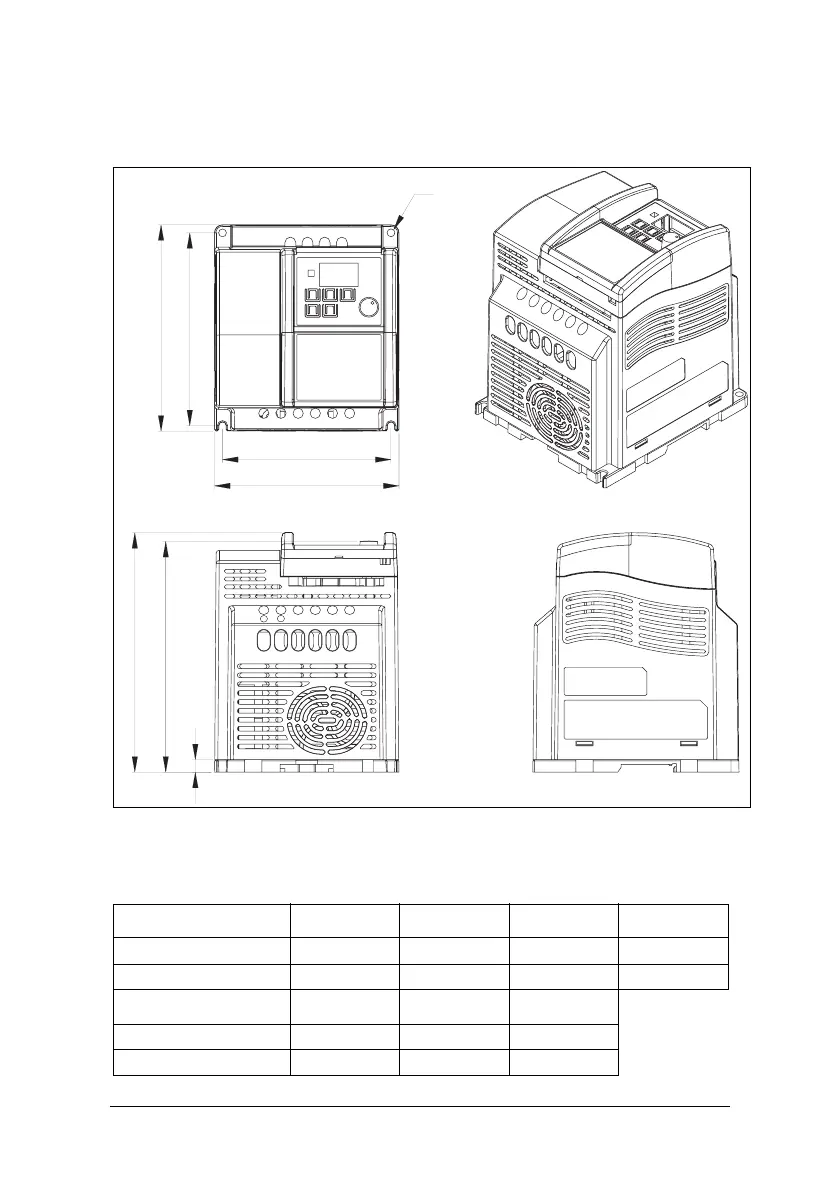

Fig. 13 VSA drive frame 2 dimensions
Table 22 Dimensions in mm/inches
Length, mm/inches A B C D
Frame 1 132/5.2 123.5/4.86 67/2.64 77/3.03
Frame 2 132/5.2 123.5/4.86 108/4.25 118/4.65
Length, mm/inches E F G
Frame 1 130.5/5.13 128.45/5.06 8/0.315
Frame 2 148/5.83 144/5.67 8/0.315
A
B
D
C
F E
G
4- Ø*4.5
L1(L) L2 L3(N) PE
T1 T2 T3 PE
+
-
+ - T3 PET2T1
+
-
T3
PE
T2
T1
