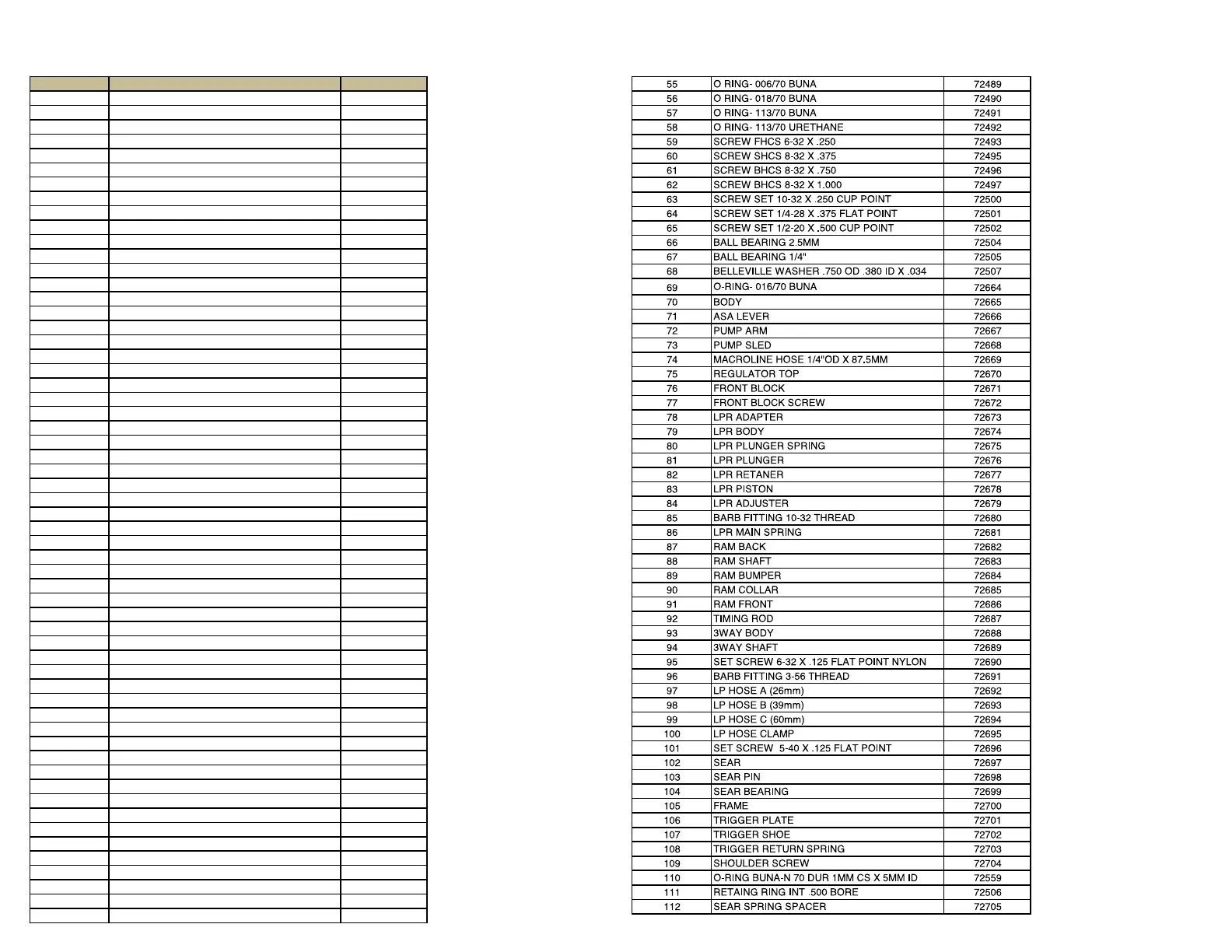

11. DIAGRAMS / PARTS LIST
DIAGRAM #
DESCRIPTION PART #
1
VALVE
72660
2
O-RING- 007/70 BUNA
10258
3
O RING- 015/70 BUNA
10260
4
O-RING- 011/ 70 BUNA
10460
5
VALVE SCREW
72661
6
O RING- 011/70 URETHANE
10608
7
SCREW BHCS 6-32 X .250
17653
8
GRIP
17959
9
BALL DETENT
19275
10
O RING- 008/70 URETHANE
41015
11
MACROLINE FITTING STRAIGHT
55112
12
O RING- 010/70 BUNA
57608
13
O-RING- 003/70 BUNA
57736
14
O RING- 015/70 URETHANE
57738
15
O-RING-013/70 BUNA
57976
16
SEAR SPRING
72423
17
SAFETY
72424
18
SAFETY SPRING
72425
19
ASA BODY
72429
20
ASA PIN
72431
21
ASA PLUG
72432
22
ASA GUIDE
72433
23
BOLT
72443
24
BOLT PIN
72444
25
BOLT SPRING
72445
26
HAMMER
72446
27
HAMMER LUG
72447
28
HAMMER RETAINER
72448
29
END CAP
72449
30
HAMMER SPRING
72450
31
VALVE SPRING
72451
32
CUPSEAL
72452
33
DETENT COVER LEFT
72455
34
DETENT COVER RIGHT
72456
35
FEEDNECK BUSHING
72457
36
FEEDNECK
72458
37
FEEDNECK LEVER
72459
38
FEEDNECK THUMB NUT
72460
39
BARREL TIP 14" ALUM
72461
40A
BARREL BACK .675
72462
40B
BARREL BACK .680
72463
40C
BARREL BACK .685
72464
40D
BARREL BACK .690
72662
40E
BARREL BACK .695
72663
41
BARREL EMPIRE JEWEL
72465
42
REGULATOR BODY
72468
43
REGULATOR ADAPTER
72469
44
REGULATOR PISTON
72471
45
REGULATOR RETAINER
72472
46
REGULATOR SEAL ADJUSTER
72473
47
REGULATOR VENT ADJUSTER PISTON
72474
48
REGULATOR ADJUSTER PISTON
72475
49
REGULATOR CAP
72476
50
REGULATOR SPRING
72477
51
REGULATOR ADJUSTER SPRING
72478
52
O RING- 015/90 URETHANE
75541
53
O RING- 1MM X 3MM ID 70 RED BUNA
72487
54
O RING- 1MM X 19.5MM ID 70 BUNA
72488
