EMPORIA VUE 3 User Manual

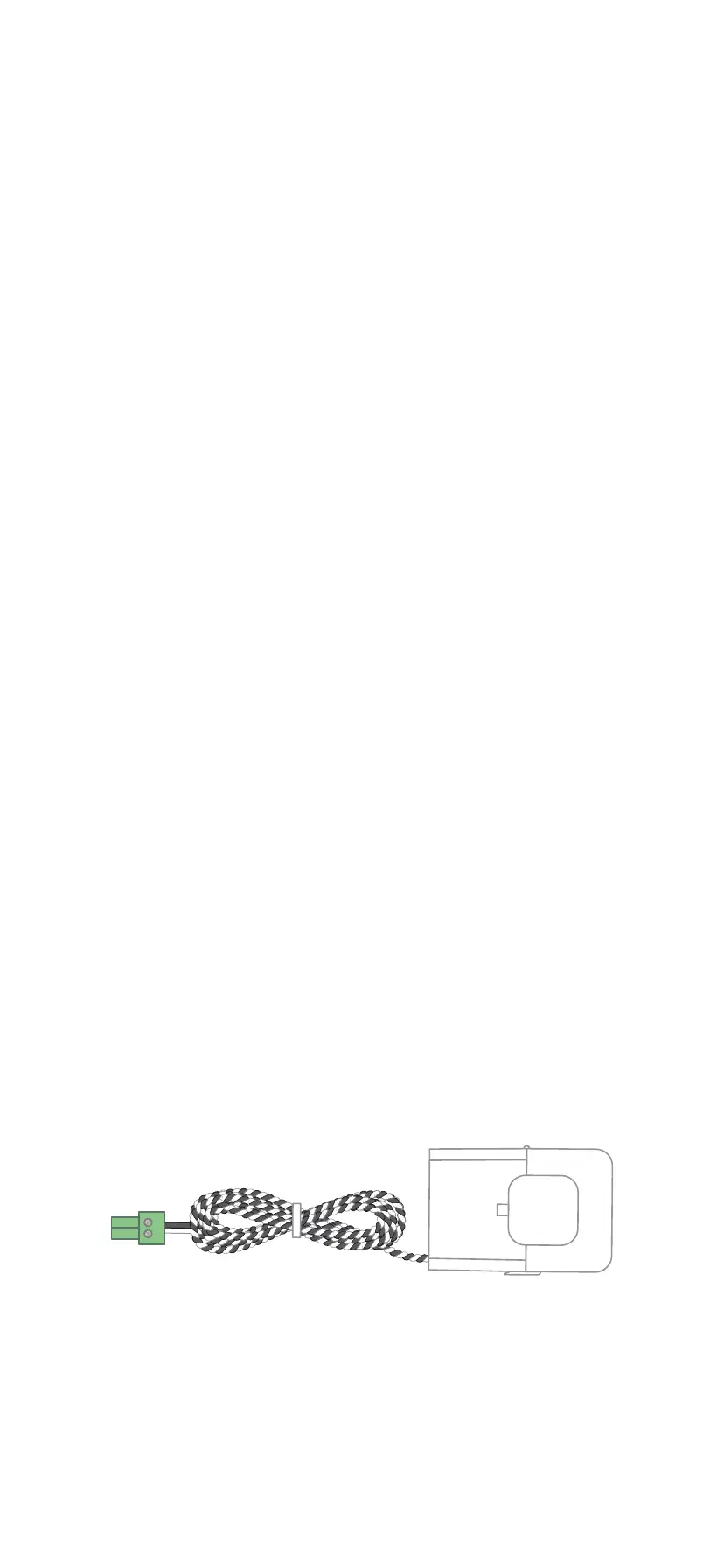

Step 5: Installing the
Main current transformers
The Main CTs will attach to the incoming
live mains. They should not be used on
neutral lines. They will be installed
differently depending upon whether or not
the home has solar and how that solar
system is connected to the electrical
system. The Vue will be installed differently
depending on whether the solar is a
breaker-fed or a line-side tap installation.
The Main CTs that connect to the mains will
provide net metering out of the box —
displaying electricity used minus electricity
produced. These installations are covered in
the subsequent pages. To monitor
electricity used and electricity produced
separately, Branch CTs will be used as
described in Step 8.
Need help?
emporiaenergy.com/support
support@emporiaenergy.com
1-844-EMPORIA (367-6742)



Step 5(a): No solar Main CT
Step 5(b): Breaker-fed solar Main CT
Step 5(c): Line-side tap solar Main CT




EMPORIA VUE 3 Specifications

General

Voltage	120V/240V
Connectivity	Wi-Fi
Compatibility	Works with smart home platforms
Installation	Professional installation recommended
Maximum Amperage	200A
Operating Temperature	-4°F to 122°F (-20°C to 50°C)
Wireless Communication	2.4GHz Wi-Fi
Current Range	0-200A
Frequency	50/60 Hz
Communication	Wi-Fi
Power Consumption Monitoring	Yes
Alerts	Customizable alerts
Warranty	1-year limited warranty
Type	Energy Monitor
Data Monitoring	Real-time and historical data
Accuracy	±2%
App Support	Emporia App
Energy Usage History	Yes
