EMX Industries, Inc. IRB-4X User Manual

3
Document no. 10060104 REV 1.6 Date 1-24-17

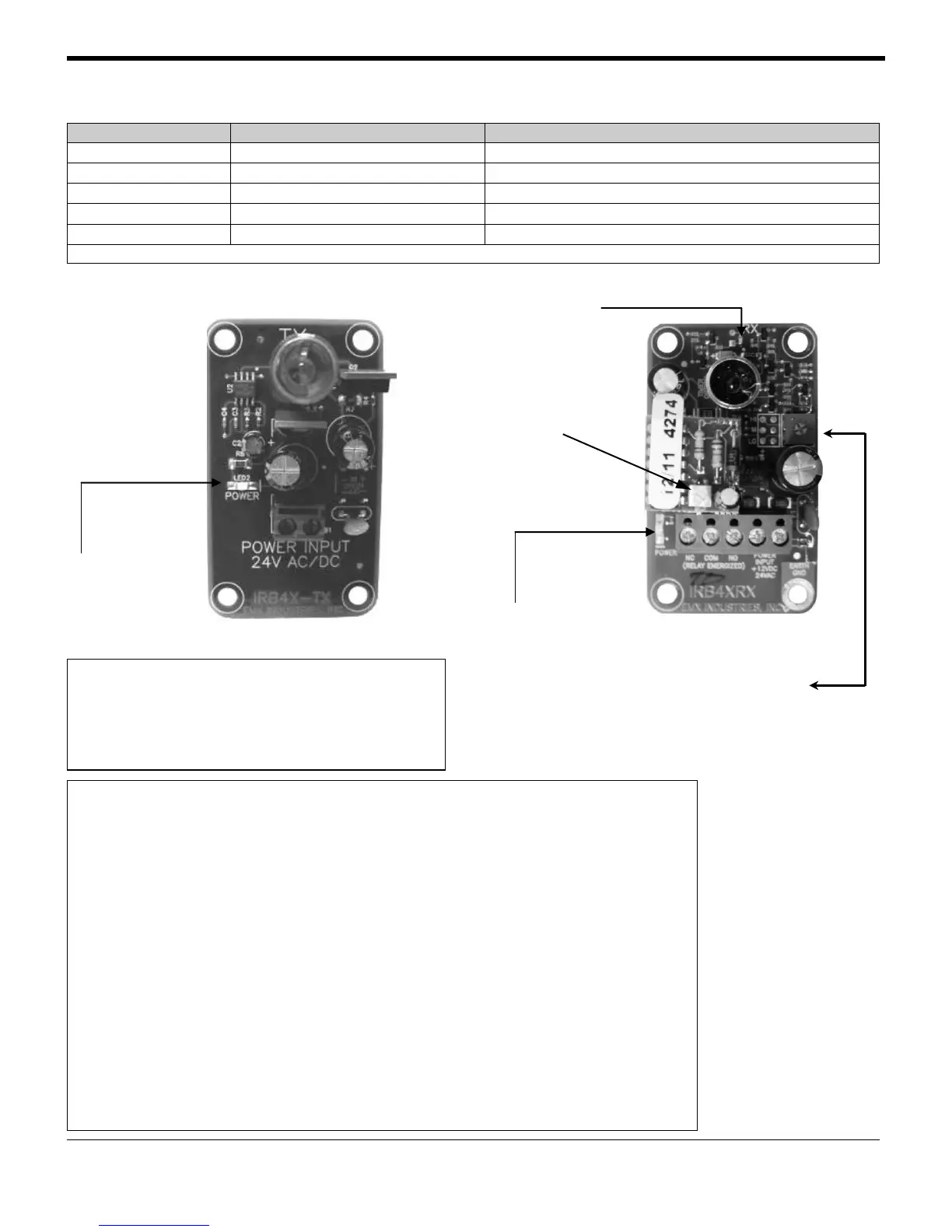

IRB-4X Transmitter connections (figure 1)
1. Connect power (12 – 24V AC/DC) to
Power input terminals (no polarity) LED2
Power LED will glow green when powered.
IRB-4X Receiver connections (figure 2)
Terminal output connections from left to right are:
Normally closed, Common, Normally open, Power, Power
1. Connect power (12 – 24V AC/DC to Power input terminals (no polarity)
2. Connect the Common to the operator control terminal per manufacturer
3. Connect either the Normally open or Normally Closed as needed to the
Control input terminal specified by the operator manufacturer.
4. The Power LED will glow green when powered.
5. Adjust sensitivity potentiometer as needed by turning counter clockwise
to increase gain. (range is 3 to 115 feet). (see arrow)
6. The detect Led will glow red when an obstruction occurs.
7. On some variable frequency drives and noisy installations, it may be
necessary to connect the bottom right mounting hole labeled
“Earth Ground” to a wire connected to earth ground.
* Do not connect unless necessary
Use minimum gain setting needed to achieve reliable detection.
Connections
Operational settings
Detect LED
Optional output
timer delay order
IRB-4X-T
Note (1) IRB-4X-T
has been discontinued
Power LED
Figure 1 Power LED Figure 2
Sensitivity Gain Adjustment
Transmitter
Receiver
Power
Power Positive (+)
Power Positive (+)
Power
Power Negative (-)
Power Negative (-)
Common
Internal Relay Common Output
Normally Closed
Internal Relay Normally Closed Output
Normally Open
Internal Relay Normally Open Output
Terminal connection on receiver from left to right are N/C Com, N/O, Power -, Power+
