Installation:
(1) BE SURE all locks of head-stock & column are tighten before operation.
(2) ALWAYS Keep proper footing & balance while moving this 300kgs machine. And only use

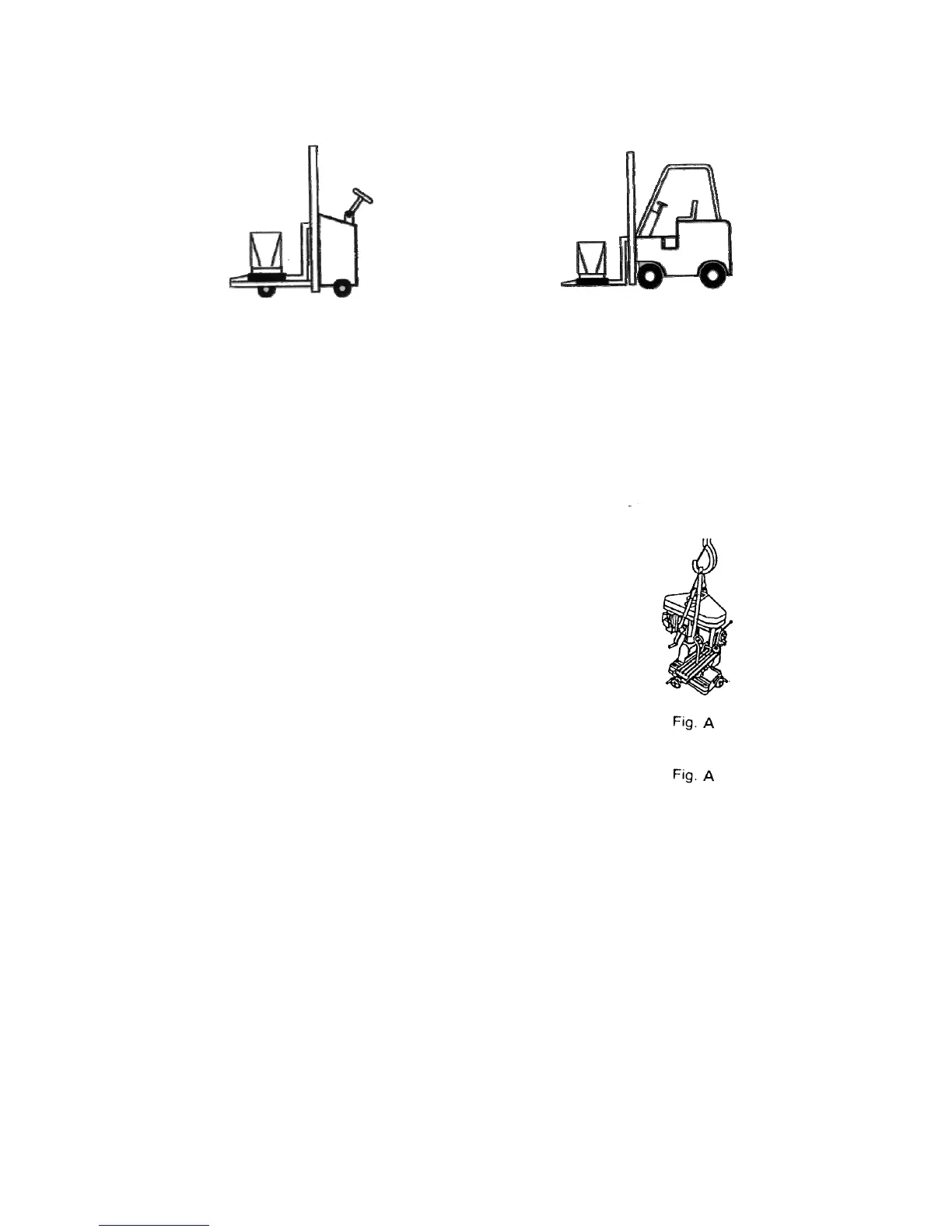

heavy duty fiber belt to lift the machine as per Fig. A.
(3) KEEP machine always out from sun, dust, wet, raining area.
(4) POSITION & tighten 4 bolts into base holes properly after
machine in balance.
(5) TURN OFF the power before wiring & be sure machine in
proper grounding. Overload & circuit breaker is recommended for
safety wiring.
(6) CHECK carefully if main shaft in clockwise direction while
running test. If not, reverse the wiring then, repeat the test till
spindle direction is correct.
(7) Finish removing this wooden case/crate from the machine.
Unbolt the machine from the crate bottom.
(8) Carefully lift the machine to a sturdy stand or work bench. For best performance, through bolt
the machine to bench or stand.
(9) Bolt the stand legs to the floor, while using a sturdy stand.
Before Bolting The Machine To A Bench Or Stand Or Floor, The Unit Must Be Level In Both
Directions.
