Replacement Parts
1.888.398.8643
5
WARNING
When heated, lava rocks may react by
breaking and throwing fragments of
rock. Be sure to season the lava rocks
at a high temperature before use
in order to avoid potential personal
injury or damage.
IMPORTANT BEFORE USE
HOW TO SEASON LAVA ROCK ON
PAGE 8.
Tools Required for Assembly (Not Included)
#2 Phillips Head Screwdriver 1 pc
Hardware Pack 58-23-862
A
Screw
M5x12 Black Nickel Plated Truss Head
16 pcs
B
Screw
M6X12 Black Nickel Plated Truss Head
4 pcs
C
Screw
M6X12 Black Nickel Plated Step Head
1 pc
D
AA Battery 1 pc
9
Parts List
1
Black Fire Glass
GLS-BLK
2
Table Insert
58-23-046
3
Bowl Assembly*
58-23-895
4
Igniter Cover*
58-23-896
5
Burner*
58-23-251
6
Control Knob*
58-23-139
7
Battery Cap*
58-23-897
8
Regulator/Hose
Assembly*
58-23-922
9
Mantel
58-24-119
10
Side Panel (3)
58-24-110
11
Leg A (2)
58-24-055
12
Magnet (2)*
58-24-056
13
Leg B
58-24-057
14
Leg C
58-24-058
15
Door Knob*
58-24-059
16
Base*
58-24-060
17
Foot (4)*
58-23-061
18
Door
58-24-111
19
LP Gas Tank Retainer
Bolt*
58-24-062
20
Cover
58-24-063
21
Lava Rock (not required
and sold separately)**
55-05-833
* Pre-assembled
W **CAUTION: Use only Bar-B-Q
Products LLC. factory-authorized
fire glass/lava rock. The use of
any fire glass/lava rock that is
not factory-authorized can be
dangerous and will void your
warranty.

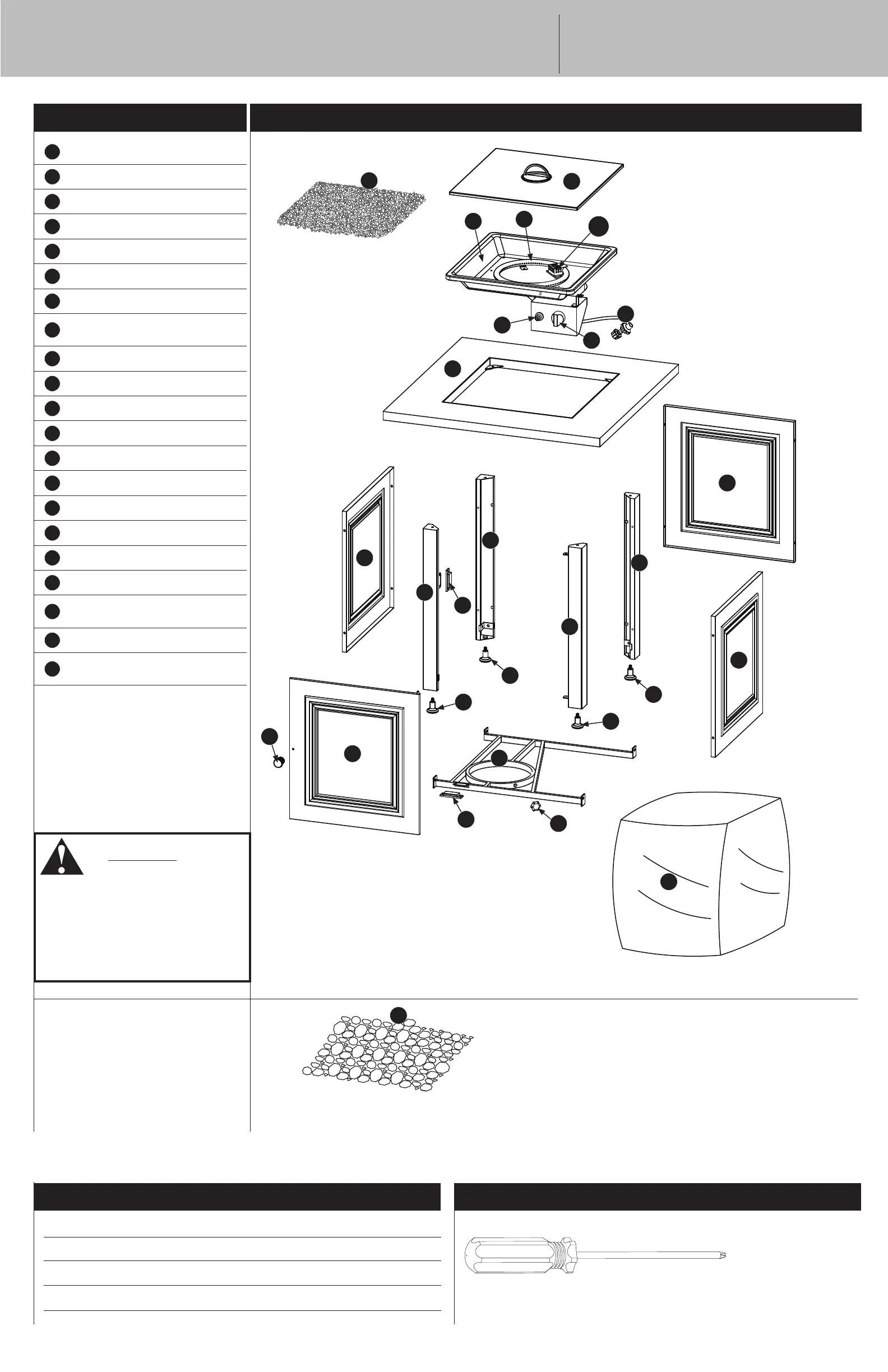

Expanded View
18
11
11
8
2
6
13
10
10
10
Sold Separately
21
14
5
16
12
17
19
15
7
4
20
3
1
12
17
17
17
