RSL Torque Wrench
7.5 Square Drive Torque Wrench Set Dimensions and Specifications
7.5.1 Imperial System Table - RSL Square Drive Cassette
(see Fig. 7.5-1 for locations of dimensions W, W1, H, L, L1 and R)

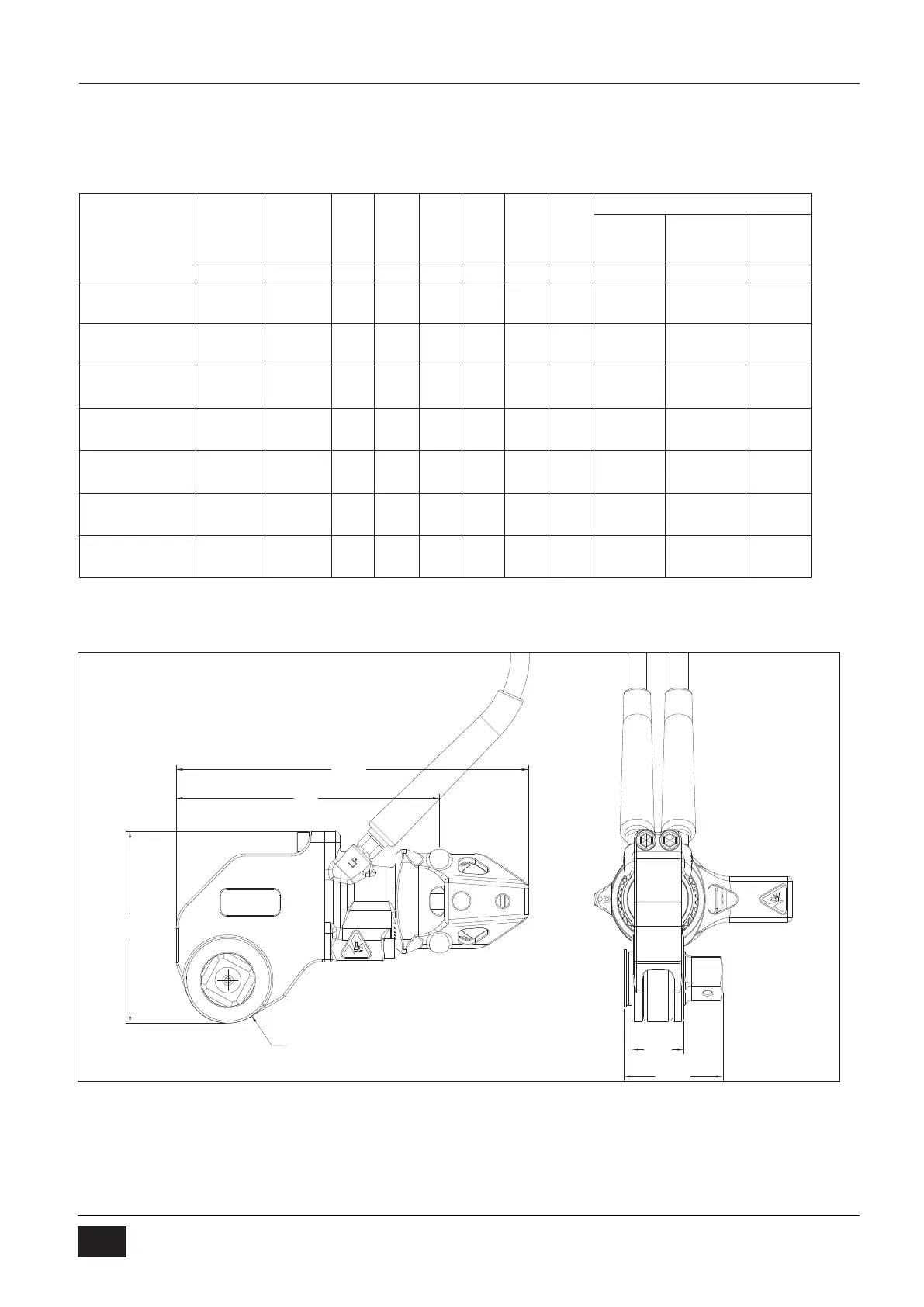

Fig. 7.5-1
R
H
W
L
L1
W1
Square
Drive
Model
Max
Torque
Output
Square
Drive
Size
W W1 H L L1 R
Weight
Torque
Wrench
Drive
Reaction
Arm
Sq Dr
Cassette
Ft.lbs in in in in in in in lb lb lb
RSQ1500ST 1408 3/4 1.25 2.30 4.48 6.29 7.45 0.94 3.4 1.0 2.8
RSQ3000ST 3080 1 1.50 2.88 5.57 7.67 10.30 1.25 5.6 2.2 5.2
RSQ5000ST 5303
1
1
/2
1.75 3.71 6.42 9.27 11.67 1.52 8.9 4.0 9.1
RSQ8000ST 7862
1
1
/2
2.40 4.14 6.65 9.47 11.78 1.52 10.6 4.3 11.6
RSQ11000ST 11,154
1
1
/2
2.50 4.63 7.93 11.20 12.40 1.88 11.6 6.6 18.4
RSQ19000ST 18,843
2
1
/2
3.25 6.38 9.48 13.46 18.97 2.50 20.0 15.7 28.9
RSQ28000ST 28,002
2
1
/2
3.50 6.54 10.35 14.09 21.07 2.50 22.0 11.1 39.3
