36
RSL Torque Wrench
7.6 ERA-Series, Extended Reaction Arms Dimensions and Specifications
(see Fig. 7.6-1 for locations of dimensions A, B, C, D, and E)
For Torque
Wrench
Model Size
Model
Number
mm kg inch lb
A B C D E Weight A B C D E l
RSL1500
ERA15114 87 145 195 29 36 0.9
3.4 5.7 7.7 1.1 1.4 1.98
ERA15228 113 181 230 29 36 1.8
4.4 7.1 9.1 1.1 1.4 3.97
ERA15342 139 226 276 29 36 2.7
5.5 8.9 10.9 1.1 1.4 5.95
ERA15456 164 236 286 29 36 3.6
6.5 9.3 11.3 1.1 1.4 7.94
ERA15570 189 287 337 29 36 4.5
7.4 11.3 13.3 1.1 1.4 9.92
RSL3000
ERA30114 105 195 257 34 41 2.7
4.1 7.7 10.1 1.3 1.6 5.95
ERA30228 131 231 293 34 41 3.6
5.2 9.1 11.5 1.3 1.6 7.94
ERA30342 156 266 328 34 41 4.5
6.1 10.5 12.9 1.3 1.6 9.92
ERA30456 181 302 364 34 41 5.4
7.1 11.9 14.3 1.3 1.6 11.90
RSL5000
ERA50114 131 208 284 44 48 4.1
5.2 8.2 11.2 1.7 1.9 9.04
ERA50228 156 243 320 44 48 5.0
6.1 9.6 12.6 1.7 1.9 11.02
ERA50342 181 279 355 44 48 5.9
7.1 11.0 14.0 1.7 1.9 13.01
ERA50456 207 314 391 44 48 6.8
8.1 12.4 15.4 1.7 1.9 14.99
RSL11000
ERA110114 125 219 296 51 59 6.3
4.9 8.6 11.7 2.0 2.3 13.89
ERA110228 150 255 331 51 59 7.3
5.9 10.0 13.0 2.0 2.3 16.09
ERA110342 176 291 367 51 59 8.2
6.9 11.5 14.4 2.0 2.3 18.08
ERA110456 201 326 402 51 59 9.1
7.9 12.8 15.8 2.0 2.3 20.06
RSL28000
ERA280228 171 335 411 57 85 11.3
6.7 13.2 16.2 2.2 3.3 24.91
ERA280342 197 370 447 57 85 13.6
7.8 14.6 17.6 2.2 3.3 29.98
Only to be used on RSL-drive units with RSQ-square drive wrenches. Used in place of standard reaction arm.
Note: Extended Reaction Arms for RSL8000 and RSL19000 are available on request.

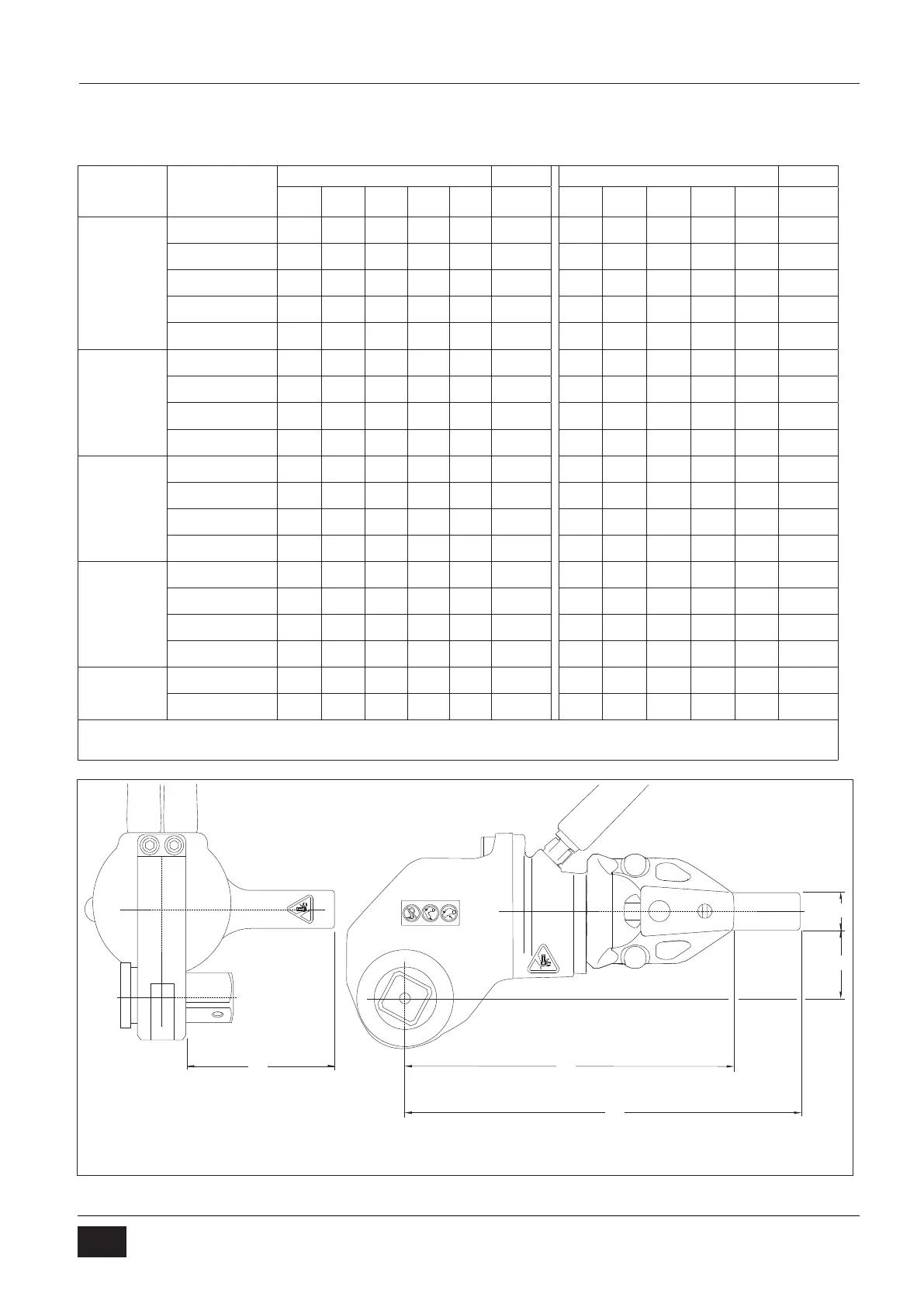

Fig. 7.6-1
A
C
B
D
E
