37
RSL Torque Wrench

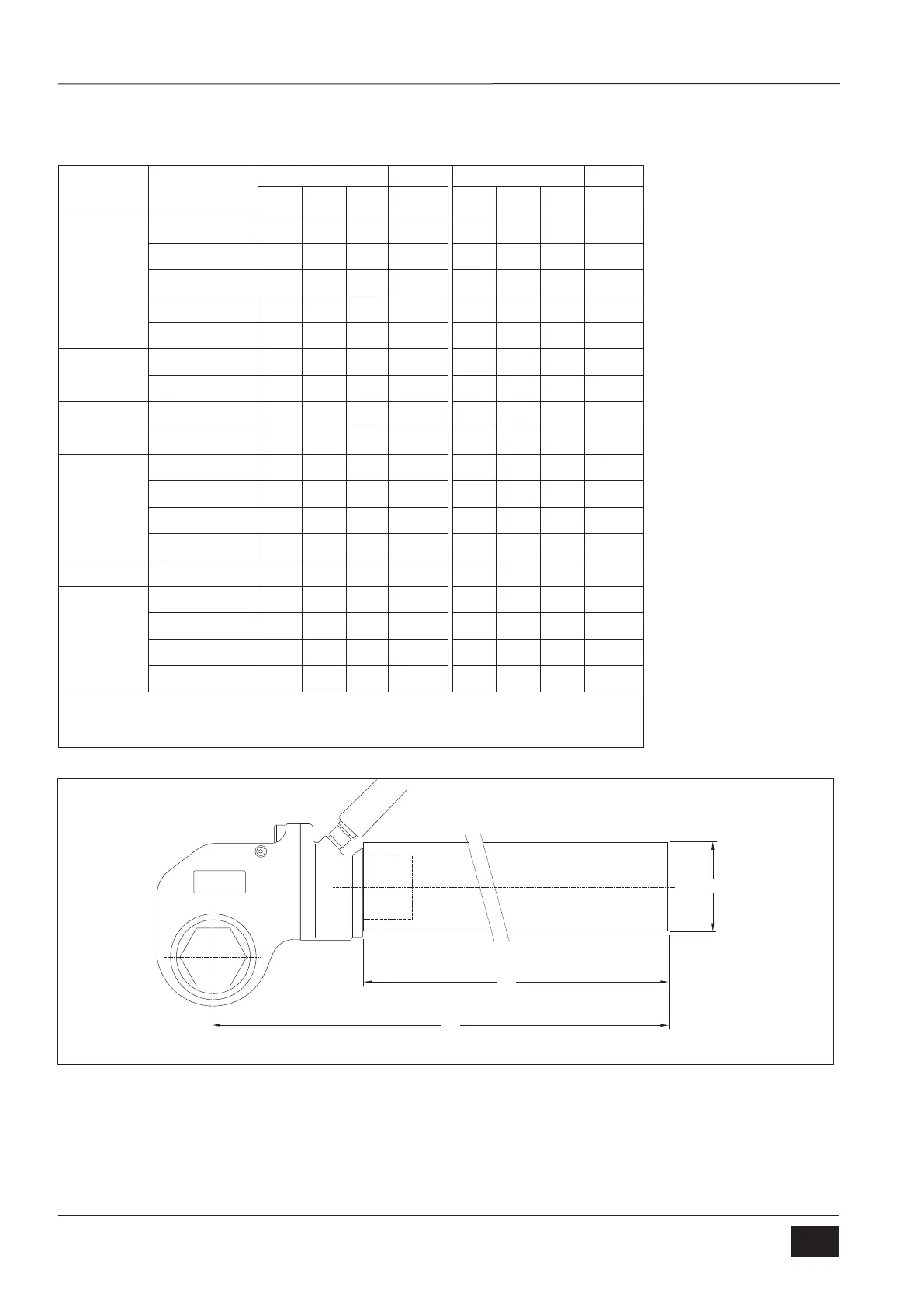

7.7 ERT-Series, Extended Reaction Tubes Dimensions and Specifications
(see Fig. 7.7-1 for locations of dimensions A, B, and C)
For Torque
Wrench
Model Size
Model
Number
mm kg inch lb
A B C Weight A B C Weight
RSL1500
ERT152 157 51 57 0.9
6.2 2.0 2.2 1.98
ERT156 259 152 57 1.6
10.2 6.0 2.2 3.53
ERT159 335 229 57 2.5
13.2 9.0 2.2 5.51
ERT1512 411 305 57 3.4
16.2 12.0 2.2 7.50
ERT1524 716 610 57 6.7
28.2 24.0 2.2 14.77
RSL3000
ERT3012 429 305 70 3.0
16.9 12.0 2.8 6.61
ERT3024 734 610 70 5.9
28.9 24.0 2.8 13.01
RSL5000
ERT5012 451 305 89 5.6
17.8 12.0 3.5 12.35
ERT5024 756 610 89 11.3
29.8 24.0 3.5 24.91
RSL11000
ERT1106 330 152 95 2.1
13.0 6.0 3.7 4.63
ERT11012 483 305 95 4.1
19.0 12.0 3.7 9.04
ERT11018 635 457 95 6.1
25.0 18.0 3.7 13.45
ERT11024 787 610 95 8.4
31.0 24.0 3.7 18.52
RSL19000 ERT19024
800 610 127 16.7 31.5 24.0 5.0 36.82
RSL28000
ERT2806 351 152 127 3.6
13.8 6.0 5.0 7.94
ERT28012 503 305 127 7.3
19.8 12.0 5.0 16.09
ERT28018
655 457 127 10.9 25.8 18.0 5.0 24.03
ERT28024
808 610 127 16.6 31.8 24.0 5.0 36.60
Only to be used on RSL-drive units with RLP-hexagon cassettes. Used in place of standard reaction
arm.
Note: Extended Reaction Tubes for RSL8000 are available on request.
Fig. 7.7-1
A
B
C
