ENERSHIELD Microshield MCS-72 - Installation Dimensions; Installation Guide

4

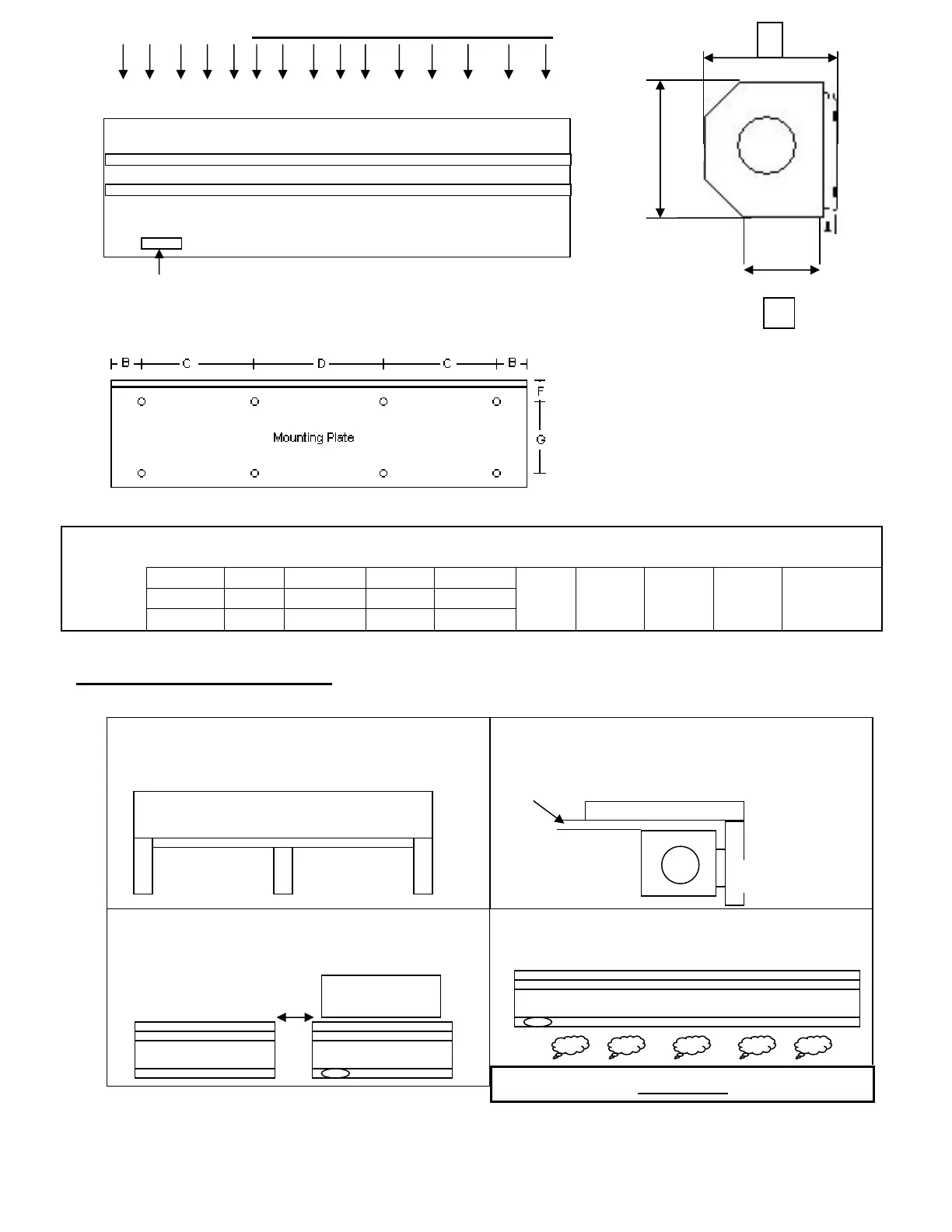

INSTALLATION DIMENSION
Model A B C D E F G H I J
MCS-36
900mm 95mm 347.5mm NA 347.5mm
MCS-48
1200mm 95mm 347.5mm 295mm 347.5mm 46mm 100mm 230mm 215mm 123mm
MCS-72
1800mm 95mm 695mm 190mm 695mm
2. INSTALLATION GUIDE
Use the following guide when installing the Enershield Microshield Air Barrier:
I
Intake A
Front View
On/Off Switch
H
Doorway
Header
2.1 Secure the unit to a sturdy location to avoid
vibration. (ie. solid beams above the door)
Minimum clearance:
2.2 Installing the unit inside the room.
Do Not Install outside for any reason.
INDOOR
OUTDOOR
Over 50 mm or 2”
20-40mm
2.3 When the entrance is wider than the unit,
installing two or more units in parallel is
recommended. In this case, provide 20-40 mm
gaps between the units.
2.4 Don’t install the unit in a place where it may
be splashed by water, exposed to excessive steam,
explosive gas or corrosive gas
CAUTION:
J
I
