EnerSys IMPAQ EI1 Series User Manual

IMPAQ™
Owner’s Manual
AM-IMPAQ-OM
Rev AB October 2018
13

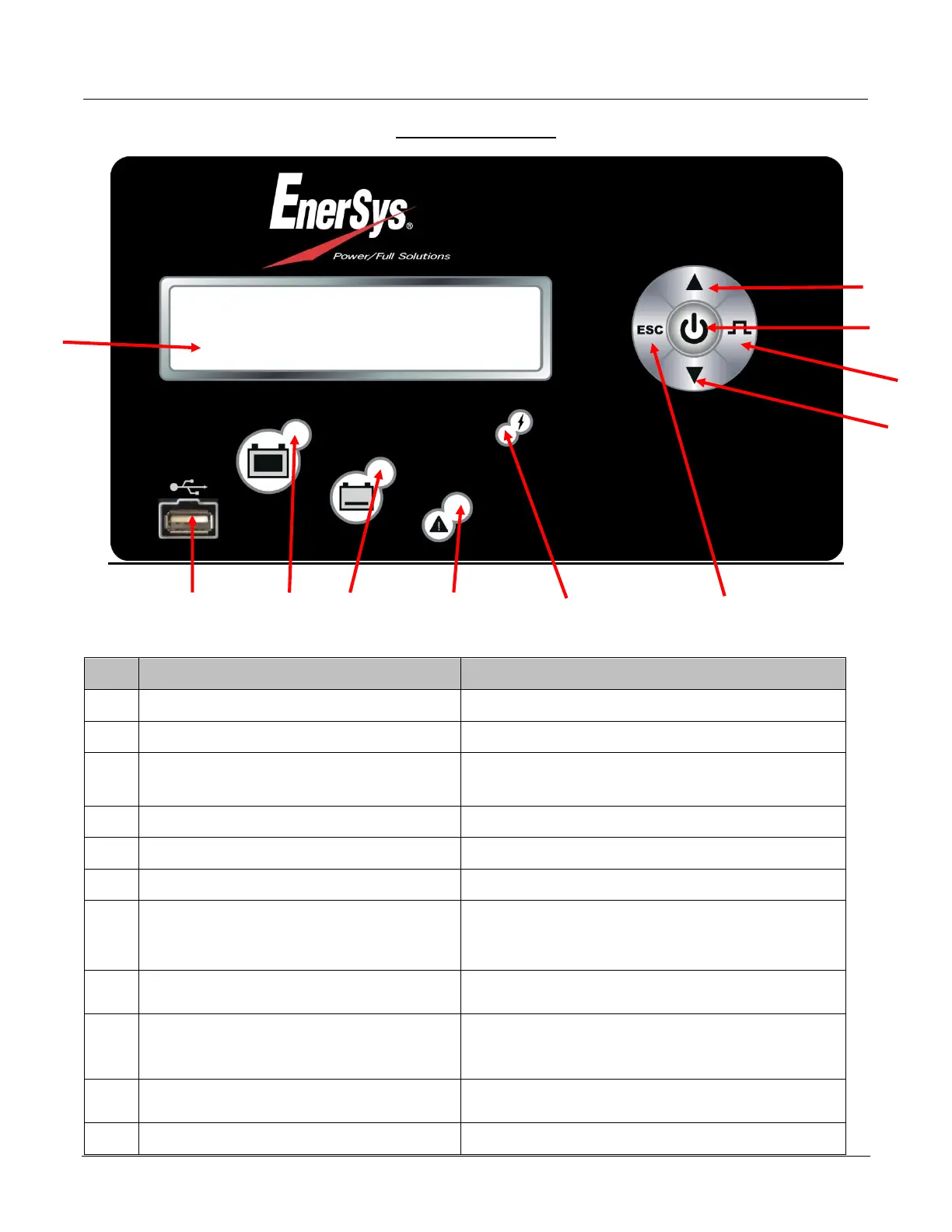

CONTROL PANEL
Ref.
Function
Description
1
LCD display
Display charger operation info/menus
2
Navigate UP button
Navigate menus/Change values
3
ENTER/STOP&START button
Select menu items/Enter values/Stop and
restart battery charge
4
Navigate RIGHT/EQUALIZE button
Scroll right/Start equalize or desulfation
5
Navigation DOWN button
Navigate menus/Change values
6
Navigation LEFT/ESC button
Enter Main Menu/Scroll left/Exit menus
7
RED fault indicator
OFF = no fault
FLASHING = ongoing fault detected
ON = fault
8
YELLOW charging indicator
OFF = charger output is off
ON = charging in progress
9
GREEN charge complete indicator
OFF = charger off or battery not available
Flashing = cooling phase
ON = battery ready and available
10
BLUE AC supply indicator
OFF = AC missing
ON = AC present
11
USB port
Download memos/Upload software
8
9
11
6
1
2
5
7
4
3
10
