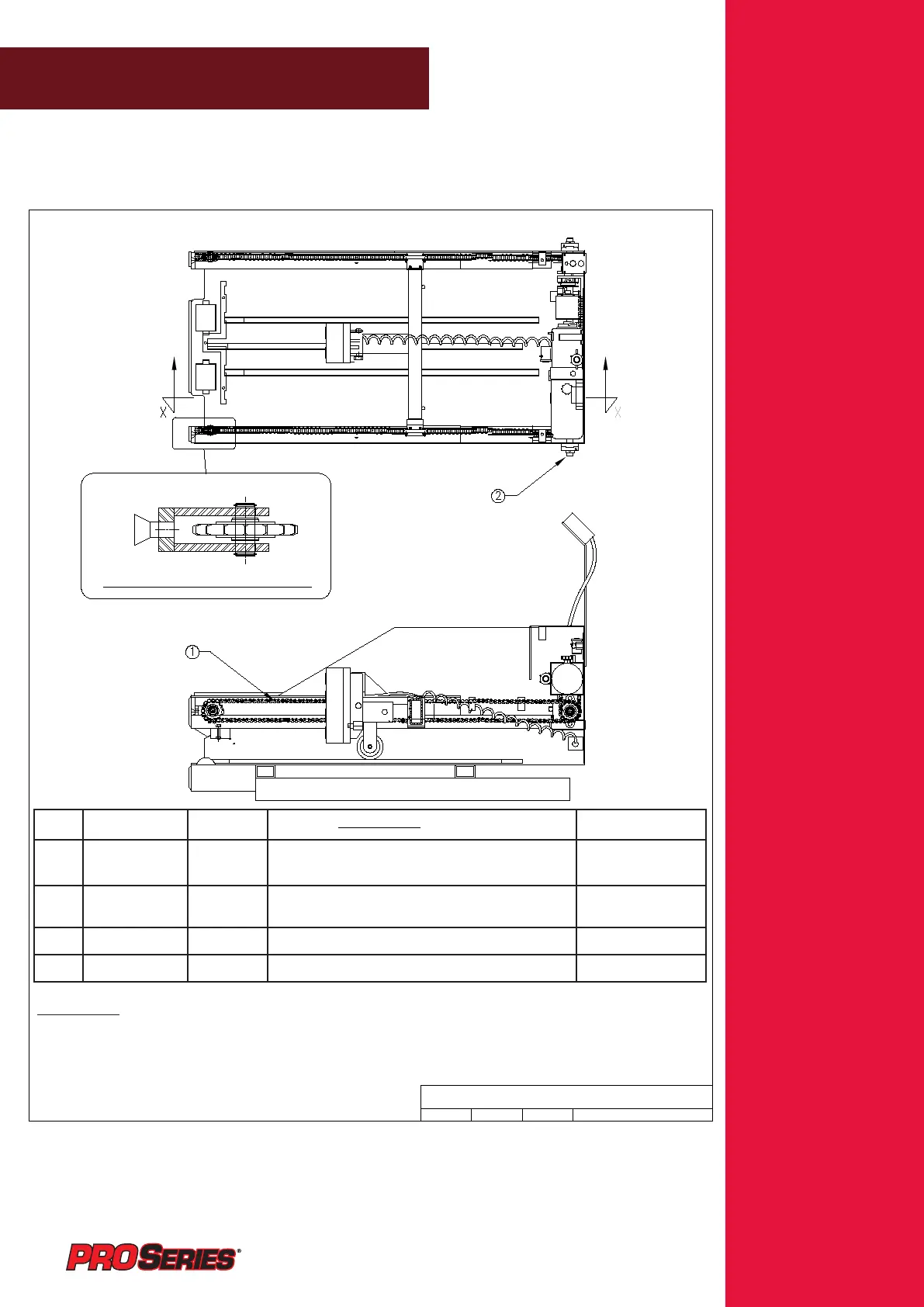

Drive Mechanism Maintenance (Figure – 7)
SECTION "A-A"
Drive Mechanism Maintenance
MJS 04/03/02
btmanualdrawings.dwg
DESIGNED:
TITLE:
CAD File:
DRIVE CHAIN TENSION ADJUSTMENT
Item Grease Points # Of Points Lubricant Part Number
1 Drive Chain 3 Spray into container use brush to apply monthly
SCHAEFFERS 200
CBS-3597
2 Bearing 2 ‘Rotanium’ / LOWSON Blue grease or equiualent
2 Months. P-35000
CBS-1208
Cleaner WD-40 (Local purchase)
Antiseize Loctite silver grade (76759) CBS-4236
ATTENTION: Check monthly and tighten any bolts that have become loose.
Check the drive chain tension. There should be no more than ½” of deection.
See ‘Drive Chain Tension Adjustment’ inset.
If excessively slack, remove one full link or ½ link and reset tension.
If chain is badly worn or stretched, replace it.
