OUTPUT RANGE AND NOZZLES RECOMMENDED
Oil capacity Output Recommended nozzle Recommended
kg/h kW Mcal/h Angle Danfoss Monarch Pump pressure
60-2 ø 130 20,0-63,0 237-747 204-642 45° - 60° S, B R, PLP 14 bar
60-2 ø 120 35,0-75,0 415-889 357-765 45° - 60° S, B R, PLP 14 bar
60-2 ø 110 40,0-90,0 474-1067 408-918 45° - 60° S, B R, PLP 14 bar
TECHNICAL DATA
Type designation B 60-2

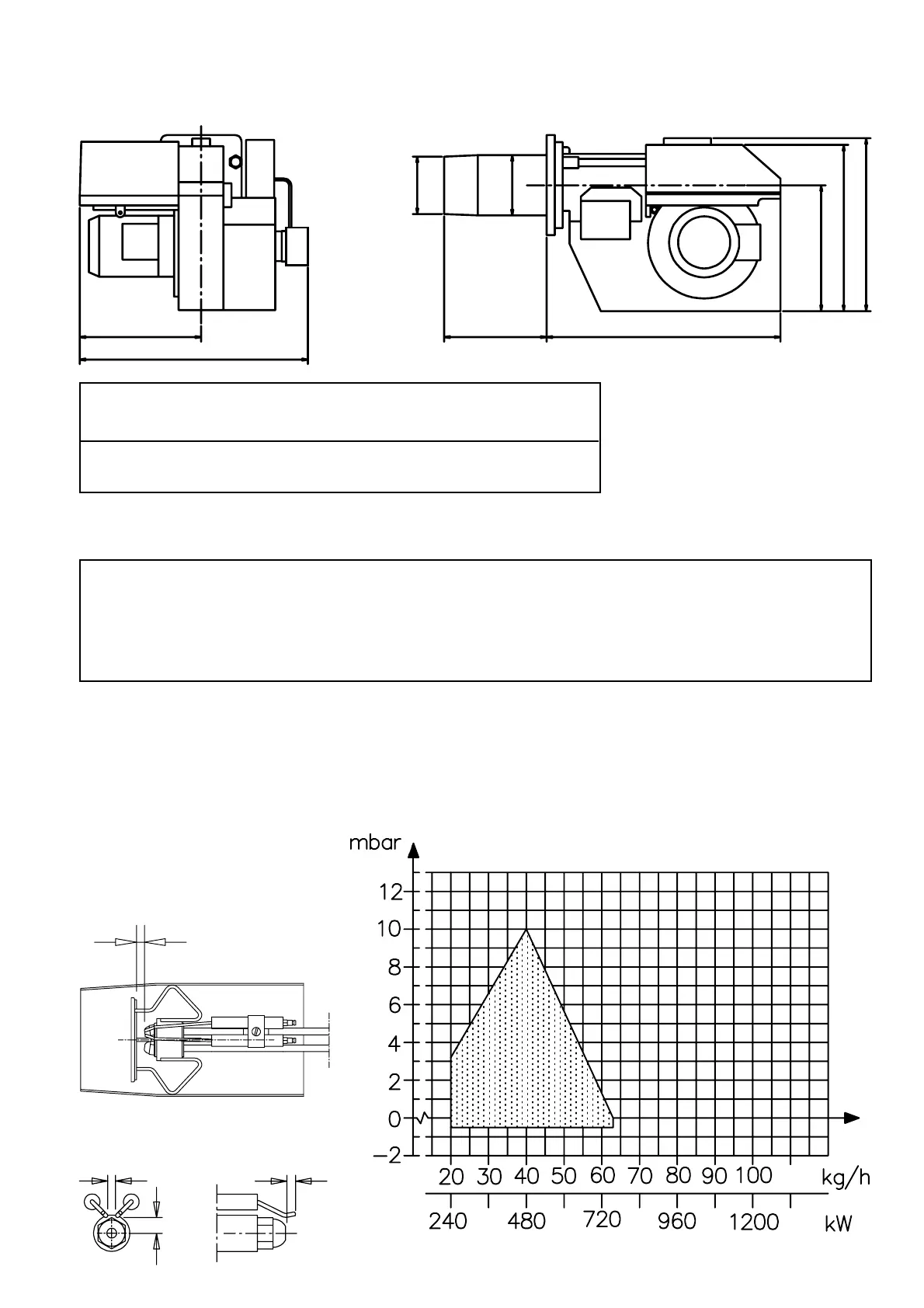

DIMENSIONS
Length of Flange
burner tube Measure B
Burner head Standard 290 260
Burner head Long design 390 360
595
290
ø155
ø158
B
610
321
400
405
171 215 78 00-02
BURNER HEAD
Brake plate ø130
The net calorific value of 11,86 kWh/kg for light oil has been used.
RECOMMENDED NOZZLE
Because of different boiler types
existing on the market, with varying
combustion chamber designs, it is not
possible to state a definite spray angle
or spray pattern.
Note that the spray angle and the spray
pattern change with the pump pressure.
RECOMMENDED PUMP PRESSURE
Recommended pump pressure 14 bar.
10,0-13,0
3,5-4,0 2,0-3,0
7,0-9,0
