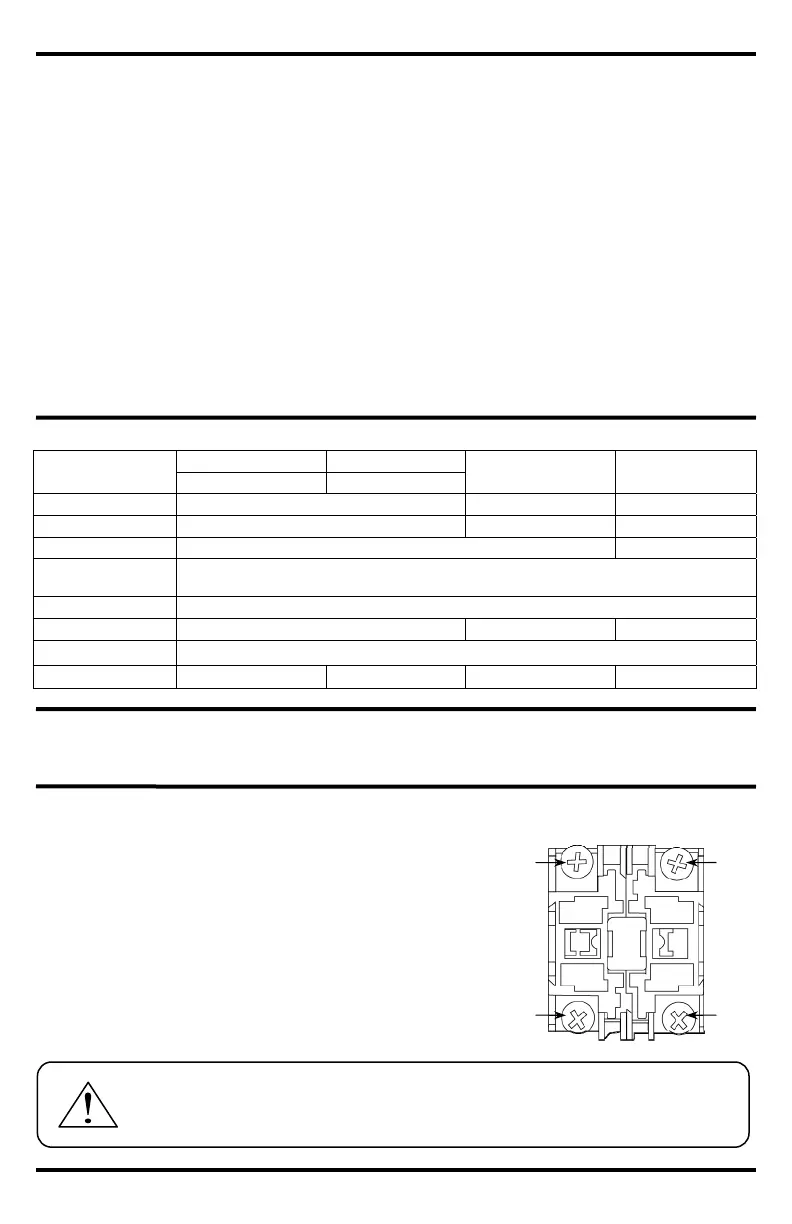

ENFORCER SD-7201GC-PEQ User Manual

ENFORCER Pushbutton Request-to-Exit Plates
2 SECO-LARM U.S.A., Inc.
Specifications:
Models:
1x Request-to-exit plate 2x Wall-plate screws 1x Installation manual
Parts List:
SD-7201GC-PEQ SD-7201GCPE1Q SD-7201GFPE1Q
 "Push to Exit" brushed stainless steel
faceplate
 SPDT
Same as SD-7201GC-PEQ except:
 "Exit" and "Salida" faceplate
Same as SD-7201GC-PEQ except:
 "Exit" and "Salida" faceplate
 DPDT
SD-7217GWQ SD-7201RCPE1Q SD-7201GAPT1Q
Same as SD-7201GC-PEQ except:
 White plastic blank faceplate
Same as SD-7201GC-PEQ except:
 "Exit" and "Salida" faceplate
 Red button
Same as SD-7201GC-PEQ except:
 "Exit" and "Salida" faceplate
 Timer (1~180s) and buzzer output
 NO/NC contact rated 3A@24VDC
Model
SD-7201GC-PEQ SD-7201GCPE1Q
SD-7201GAPT1Q SD-7217GWQ
SD-7201GFPE1Q SD-7201RCPE1Q
Operating voltage N/A 12 or 24VDC N/A
Current rating 50A@24VAC 3A@24VDC 50A@24VAC
Faceplate Brushed stainless White plastic
Operating
temperature
-40°~167° F (-40°~75° C)
IP rating IP65
Built-in timer No Yes No
Dimensions 4
1
/
2
"x2
3
/
4
"x2
3
/
4
" (114x70x70 mm)
Weight 3.7-oz (105g) 2.2-oz (62g) 4.7-oz (133g) 5.1-oz (144g)
Wiring the RTE Button:
IMPORTANT
Users and installers of this product are responsible for ensuring that the installation and
configuration of this product complies with all national, state, and local laws and codes related to
locking and egress devices. SECO-LARM will not be held responsible for the use of this product
COM
N.O N.C.
COM
1. Run two wires from a device (such as an alarm or an access control
system which can unlock an electronically-controlled lock) through the
wall to a single-gang back-box as follows:
a. One wire from either the NO or NC terminal
b. One wire from the COM terminal
2. Connect to the RTE
terminals as shown in Fig. 1.
3. Use silicone sealant where the faceplate meets the back box and
around the mounting screws to ensure a weather-proof installation.
Screw plate to the back box, using caution not to pinch any wires.
Fig. 1*
*SD-7201GFPE1Q has 2x N.O. and 2x N.C. connectors.
Please read the manual carefully before beginning installation.
The ENFORCER Weather-Resistant Mushroom-Cap RTE Plates are ideal for many outdoor access
situations, with a 1
1
/
2
" (38mm) diameter mushroom-cap (green or red), single-gang faceplate and NO/NC
contact rated 50A@24VAC.
