ENFORCER SK-2323-SPQ User Manual

ENFORCER Outdoor Stand-Alone Keypads
6 SECO-LARM U.S.A., Inc.
1
Connect included diode and metal oxide varistor (MOV) as close as possible and in parallel with an
electric strike. This absorbs possible electromagnetic interference to prevent operation of the strike from
damaging the keypad. Do not connect a diode or MOV when using electromagnetic locks.
2
Output #2 controls the arm/disarm of the alarm control panel. Consult the alarm control panel manual for
more information.
Connecting to a Doorbell
If the keypad is connected to a doorbell, press to activate the doorbell. The doorbell output lasts for 1
second. For instructions on how to program the keypad for doorbell, see page 13, Programming the
Output #2 Function.
Purple—Output #2
Blue—Output #2
12~24
VAC/VDC
Power
Supply
Doorbell

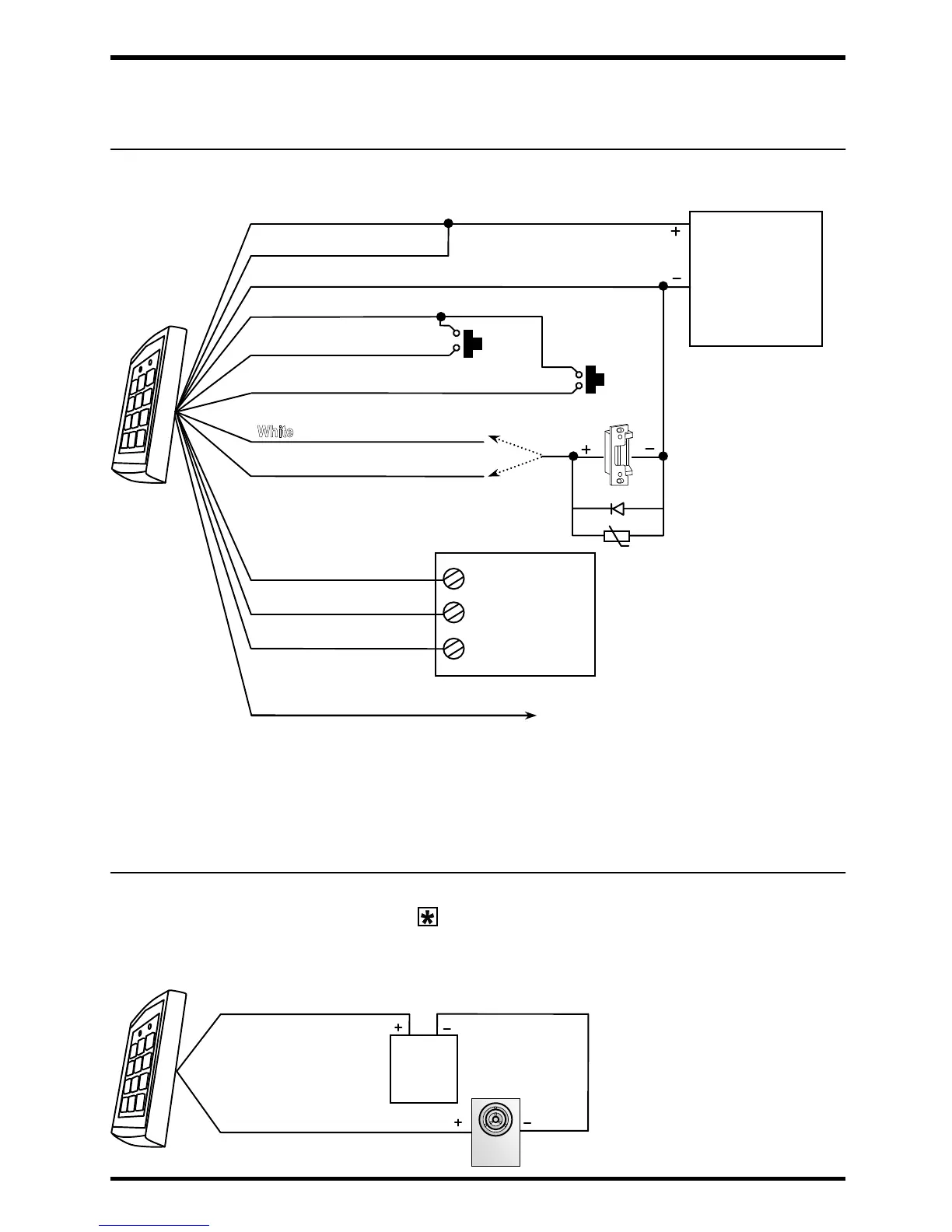

Sample Wiring and Application
(SK-1323 series shown. All examples apply to both the SK-1323 and SK-2323 series.)
Note: Sample applications are based on VDC power supplies.
Connection to Lock Device and Alarm System Arm/Disarm Control
Orange—Egress Input 1 (N.O.)
Uninsulated Chassis Ground
Black—12~24 VAC/VDC (-)
Red—12~24 VAC/VDC (+)
Pink—Output #1 (COM)
Yellow—Egress Input 2 (N.O.)
—Output #1 (N.O.)
Aqua—Output #1 (N.C.)
Blue—Output #2 (N.O.)
Purple—Output #2 (COM)
Gray—Output #2 (N.C.)
To Chassis Ground
Electric Strike
N.O.
N.C.
12~24
VAC/VDC
Power Supply
Alarm
Control
Panel
2
Egress
Button
Egress
Button
Diode
1
MOV
1
Green—Common ground (-)
