Engel MHD13F-DM - How to Replace DC Cord Fuse; Shoulder Strap Attachment

DC CORD
UPMARK
THIS PART IS ONLY FOR DC12V
DC24V IS THE OTHER CORD
(
OPTION
)
SPECIAL THERMAL
FUSE
HEAD
TERMINAL
COVER
(

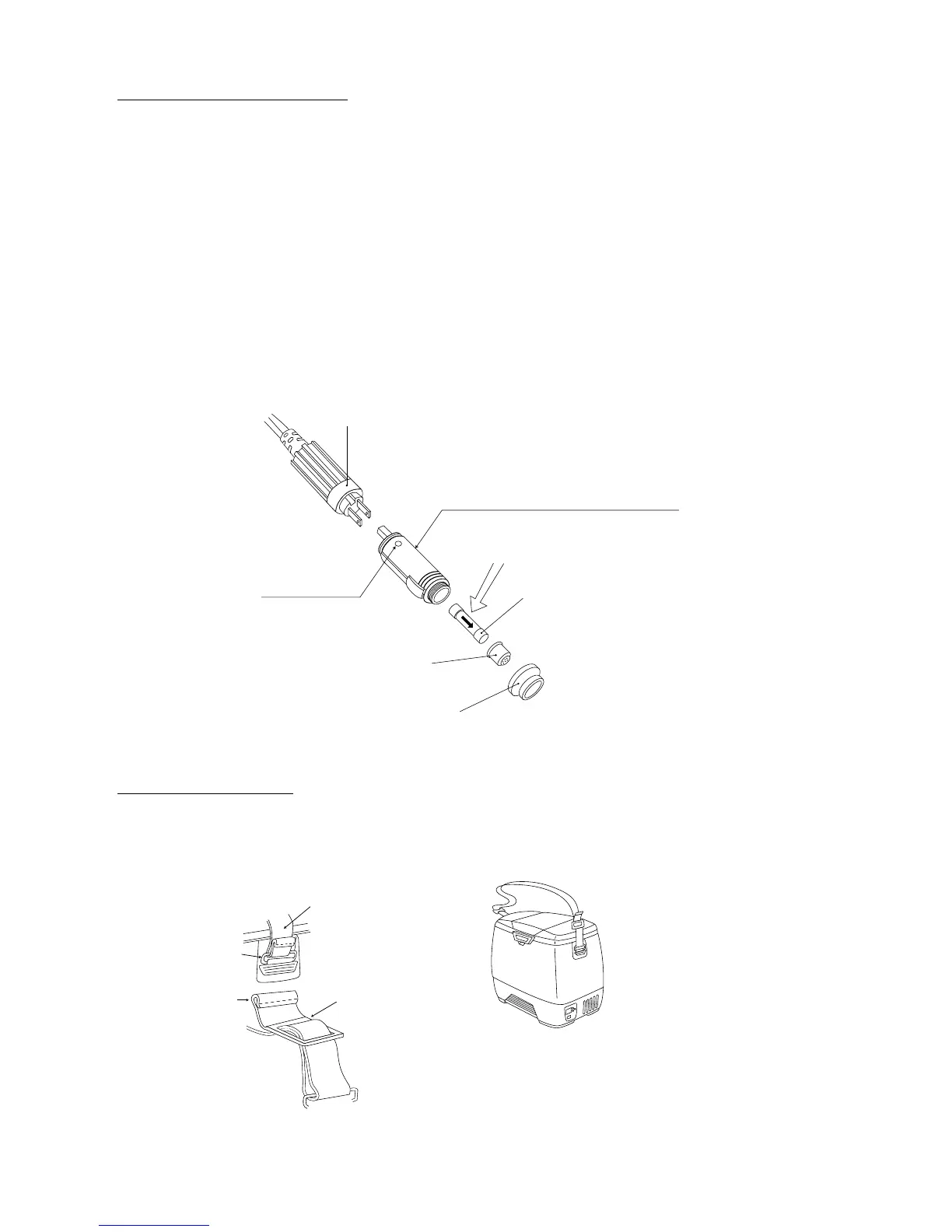

Fig 9
)
OPTION
(
For European built vehicles
)
GREEN
POWER LAMP
SAWAFUJI ELECTRIC CO.,LTD.
GUNMA JAPAN
(
Cat.No.5490 356 1000
)
Printed in Japan
(
Fig 10
)
Holder B
Holder A
SHOULDER STRAP
Seam Should
be upper side
①
②
③
1. Remove the cover at the tip of the DC cord plug by turning the black cover in the
counterclockwise direction.
2. When removing the cover, the head terminal and the special thermal fuse are also removed at the
same time.
3. Pull out the special thermal fuse from the metal head terminal.
4. Replaced the blown fuse with a new one after making sure that the polarity connection is correct.
=CAUTION=
・Use the special thermal Engel fuse made by SAWAFUJI at all times without fail.
・The special thermal fuse should be placed in the plug in the direction of the arrow as shown and it
should be pointing in the direction of the head terminal (Fig 9)
5. Re-assemble the DC cord plug (reverse order of disassembly) and tighten the cover firmly.
6. Check whether the product is operating normally.
If you encounter any further trouble, please contact your Authorized Engel dealer.
HOW TO REPLACE (Fig 9)
Secure SHOULDER STRAP onto the product by referring to Fig 10.
1. Thread both ends of the SHOULDER STRAPS through holder A (on both sides of your ENGEL).
2. Then fasten both ends of the SHOULDER STRAPS onto holder B as shown on ② of Fig10.
SHOULDER STRAP
− 8 −
