Engl 930/60 - Page 6

35
MASTER FX LOOP: SEND RIGHT
Signal output right channel for the
Master stereo FX loop.
Connect this output to the signal processor's
right input/return jack via a shielded cable
with 1/4" plugs.
36
MASTER FX LOOP: SEND LEFT
Signal output left channel for the
Master stereo FX loop.
Connect this output to the signal processor's
left input/return jack via a shielded cable
with 1/4" plugs.
37
MASTER FX LOOP: RETURN RIGHT
Signal input right channel for the
Master stereo FX loop.
Connect this intput to the signal processor's
right output/send jack via a shielded cable
with 1/4" plugs.
38
MASTER FX LOOP: RETURN LEFT
Signal input left channel for the
Master stereo FX loop.
Connect this intput to the signal processor's
left output/send jack via a shielded cable
with 1/4" plugs.
39,
40
SPEAKER OUTPUT:
8 OHM PARALLEL LEFT
8Z left channel speaker output jacks;
internal parallel signal path for the
connection of one 8Z or two 16Z cabinets.
41,
42
SPEAKER OUTPUT: 4 OHM
PARALLEL LEFT
4Z left channel speaker output jacks;
internal parallel signal path for the
connection of one 4Z or two 8Z cabinets.
43
SPEAKER OUTPUT: 16 OHM LEFT
16Z left channel speaker output jack for
the connection of one 16Z cabinet.
44
SPEAKER OUTPUT: 16 OHM RIGHT
16Z right channel speaker output jack for
the connection of one 16Z cabinet.
45,
46
SPEAKER OUTPUT: 4 OHM
PARALLEL RIGHT
4Z right channel speaker output jacks;
internal parallel signal path for the
connection of one 4Z or two 8Z cabinets.
47,
48
SPEAKER OUTPUT: 8 OHM
PARALLEL RIGHT
8Z right channel speaker output jacks;
internal parallel signal path for the
connection of one 8Z or two 16Z cabinets.
IMPORTANT: If you choose to use just one
power amp channel, ensure you switch the
other channel's STANDBY switch off.
Never operate an active stereo channel
without a connected speaker, you may
destroy the power amp!
Ensure your cabinet's specifications match
the respective output's specs!
TIP6
TIP6
TIP6
TIP6
TIP7
TIP7
TIP7
TIP7
TIP7
TIP7

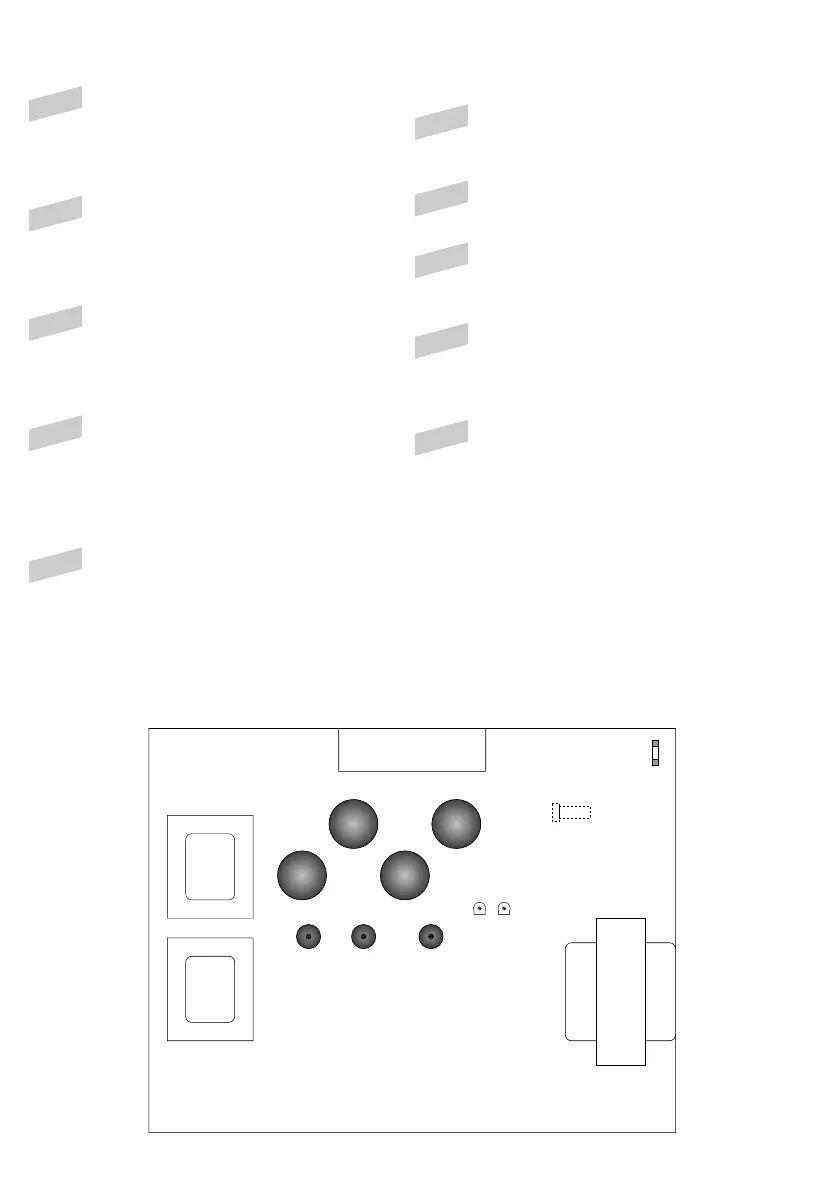

Tube array
V 1 V 2 V 3
V 4 V6
V 5 V 7
power
transformer
fan
right output
transformer
left output
transformer
BIAS
left
right
internal
fuse for
the mains
MIDI
fuse
