INSTALLATION INSTRUCTIONS
ENGLEFIELD
VALENCIA
TM
LED Mirrors
10cm
75cm / 90cm
2.7cm
2.7cm
65cm

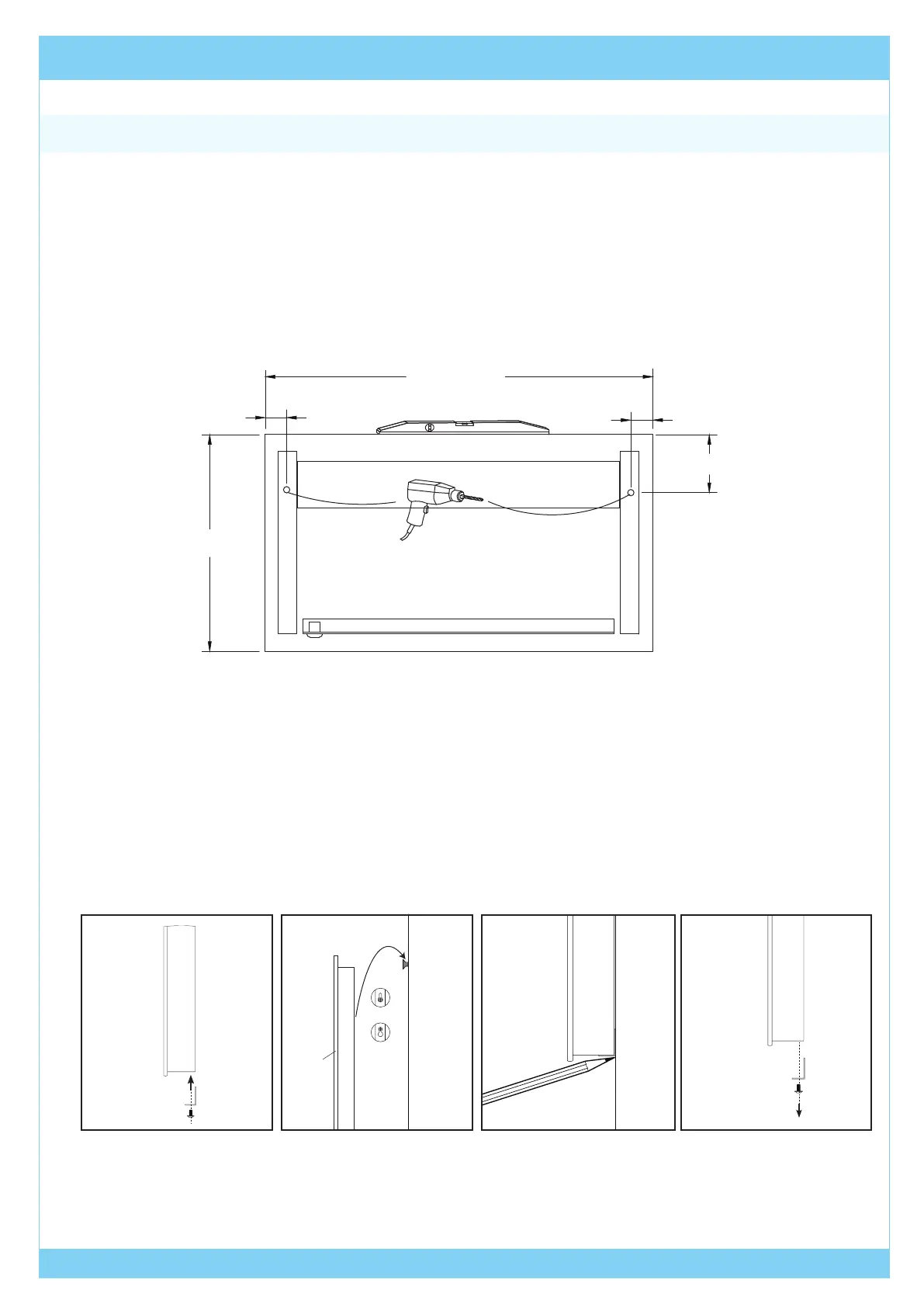

1. Select an appropriate location to install the mirror where it can be fastened to a nog, and where
wiring can be connected without any slack in the wiring.
2. Use a spirit level and refer to the dimensions below to mark the location of the fixing holes with a
sharpened pencil.
3 Pre-drill holes at the marked locations. When drilling holes make sure to do so as accurately as
possible. Install appropriate fasteners.
4. Using the two small screws provided, install the bracket onto the bottom of the mirror.
5. Carefully hang the mirror on the cleats and use a spirit level to check that the mirror is level, make
adjustments as necessary to the position (This may require two people).
6. Mark the location of the bottom bracket on the wall with a pencil. Lift and remove the mirror from the
wall to reveal the pencil mark location of the bracket.
7. Un-install the bracket from the mirror by removing the two small screws previously installed during step 4.
4 5 6
Mirror
Wall
7
8. Using the larger screw provide, mount the bracket to the wall at the marked pencil location, do not
over-tighten. If there is no stud present, use the supplied wall anchor.
