93-02026-01 Rev01 Page 1
Ruggedized Sensor
(SU-5S)
Installation Instructions
Models:
SU-5S-HRW: High Bay, White, Ruggedized Sensor
SU-5S-LRW: Standard Bay, White, Ruggedized Sensor
SU-5S-HRB: High Bay, Bronze, Ruggedized Sensor
SU-5S-LRB: Standard Bay, Bronze, Ruggedized Sensor
FCC ID: AQQ-SU5S
IC: 10138A-SU5S

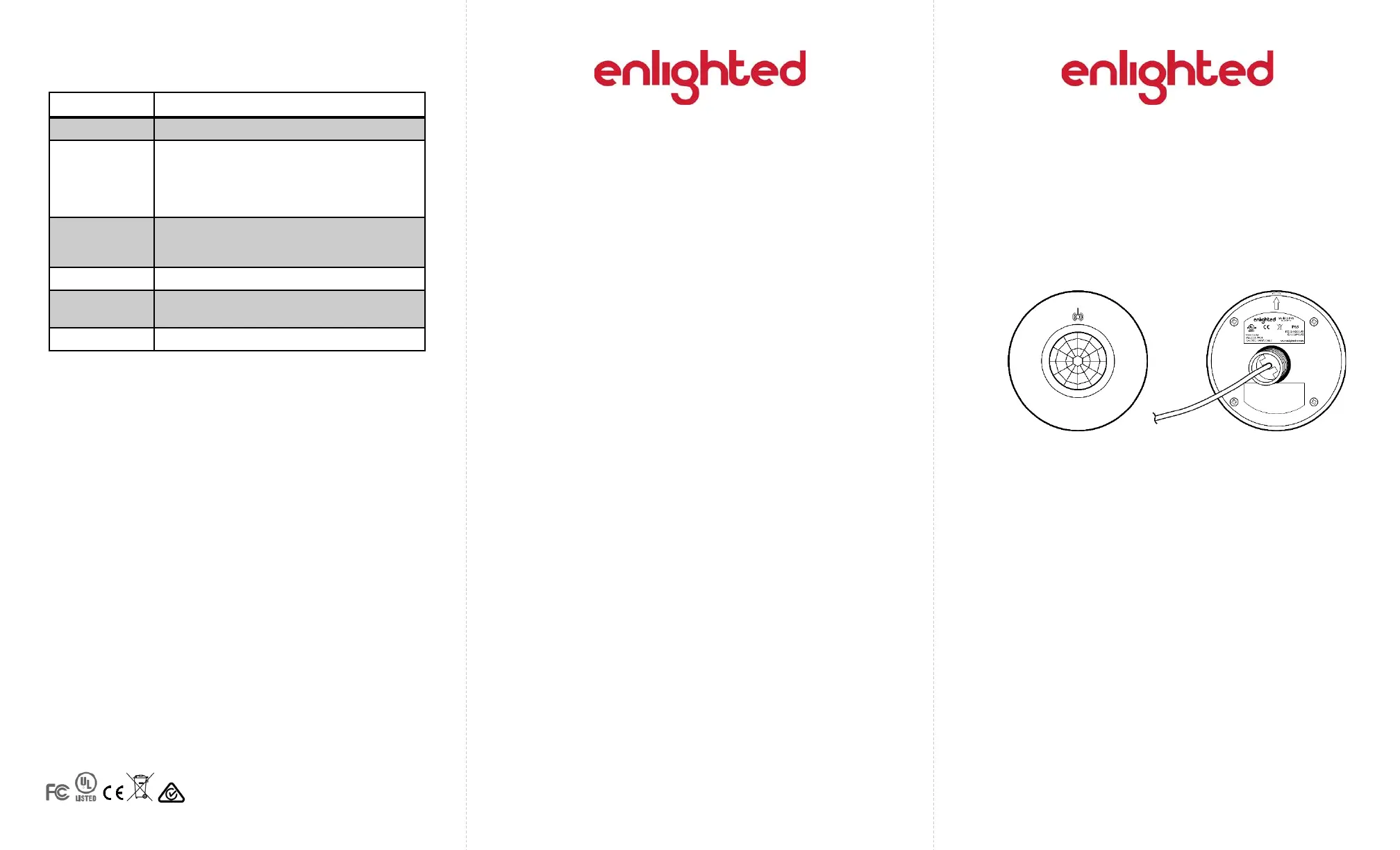

Ruggedized Sensor (Front and Rear)
Shipped Components
• Enlighted Ruggedized Sensor
• ½ inch Lock Nut
Supplemental Components
• ½ inch LB Conduit Body
• ½ inch Chase Nipple
• Enlighted Control Unit
• Enlighted Sensor Cable
• Cable Coupler: CPL-RJ12
Tools you may Need
• ½ inch Knock out tool
Copyright © 2018 Enlighted Inc. All rights reserved.
All other brand or product names are trademarks of their
respective companies or organizations.
LED Description
LED Status Description/Solution
LED not on Check power and wiring
Green blinking Sensor is commissioned, working, and has
detected motion. If there is no motion in the
sensor’s field of view, the blinking will stop.
Wave your hands below the sensor to restart
LED blinking.
Red blinking Sensor is not commissioned and has detected
a wiring issue. Check wiring to the Control Unit
(CU) and LED driver.
Red solid Faulty sensor – replace sensor
Green solid Sensor installed, initialized, and not
commissioned – waiting for discovery
Blue solid Sensor received a request to identify itself
FCC and Industry Canada Compliance Information
This equipment has been tested and found to comply with the limits for
a Class A digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
This device complies with Part 15 of the FCC Rules and Industry Canada
license-exempt RSS standard(s). Operation is subject to the following two
conditions:
• this device may not cause harmful interference, AND
• this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by Enlighted Inc.
could void the user's authority to operate the equipment.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes:
• l'appareil ne doit pas produire de brouillage, ET
• l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
CE
This device complies with the essential requirements and other relevant
requirements of the R&TTE Directive (1999/5/EC) and Radio Equipment
Directive (RED) 2014/53/EU. The equipment is Class 1 radio equipment
which can be placed on the market and be put into service without
restrictions in accordance with article 1(3) of Commission Decision
2000/299/EC (Version July 2014).
Wireless protocol: IEEE802.15.4, Radio Freq: 2400 – 2483.5MHz,
RF TX output power (max): 6dBm
Wireless protocol: IEEE802.15.1, Radio Freq: 2400 – 2483.5MHz,
RF TX output power (max): 6dBm
Company Contact Information
Location: 930 Benecia Ave, Sunnyvale, CA 94085
Phone: +1.650.964.1094
Web: enlightedinc.com
Technical Support: support@enlightedinc.com
