The Enphase Communications Kit 2 (SKU: COMMS-KIT-02) is a crucial component designed to facilitate wired communication between an IQ Gateway, IQ Battery 5P, and IQ System Controller 3/3G within an Enphase Energy System. This kit is specifically required when an IQ Battery 5P is integrated with an IQ Gateway (either standalone or as part of an IQ Combiner 4/4C/3/3C/3-ES/3C-ES), unless an IQ Combiner 5/5C is used, as the latter already incorporates the Communications Kit 2's functionality.

Function Description:

The primary function of the Communications Kit 2 is to establish a reliable wired communication link, enabling the IQ Gateway to monitor and manage the IQ Battery 5P and IQ System Controller 3/3G. This ensures seamless data exchange for optimal system performance, energy management, and diagnostics. The kit comes housed in a NEMA 3R enclosure, providing protection against environmental elements, and includes a control adapter mounted on a lower DIN rail. Communication is achieved via a USB Type-C to Type-A cable (40 cm/15.75 inches) that connects the adapter to the IQ Gateway, also supplying power to the adapter from the Gateway. Control wiring is managed through detachable headers attached to the adapter.

Important Technical Specifications:

Model: COMMS-KIT-02
Enclosure: NEMA 3R, suitable for outdoor installation.
Communication Interface: Wired USB for connection to IQ Gateway.
Control Cable Compatibility: Enphase control cables (SKU: CTRL-SC3-NA-01) are recommended for optimal performance and are certified under UL-1277, UL-3003, and UL-83. Third-party cables are not guaranteed for performance.
Control Cable Torque Details:
- Power cables (18 AWG): 0.2 N m (1.77 lb-in.)
- Ground cables (18 AWG): 0.2 N m (1.77 lb-in.)
- Terminal block cables (6 to 24 AWG): 0.5 N m (4.42 lb-in.)
USB Cable Length: 40 cm (15.75 inches).
IQ Gateway Software Requirement: Version 8.1 or higher for compatibility with other Enphase Energy System components.
Total Control Wiring Length: Should not exceed 250 feet to ensure system specifications are met.
LED Indicators:
- Red: ERROR (Control or BUS error)
- Blinking green: Communications Kit firmware update
- Green: Communications Kit is operational
- Blue: No USB communication
FCC Compliance: Class B digital device, Part 15 of FCC Rules.
Industry Canada Compliance: ICES-003.

Usage Features:

System Integration: Essential for systems incorporating IQ Battery 5P with IQ Gateway (excluding IQ Combiner 5/5C).
Flexible Installation: Can be installed in the same enclosure as the IQ Gateway or in a separate enclosure, depending on system design.

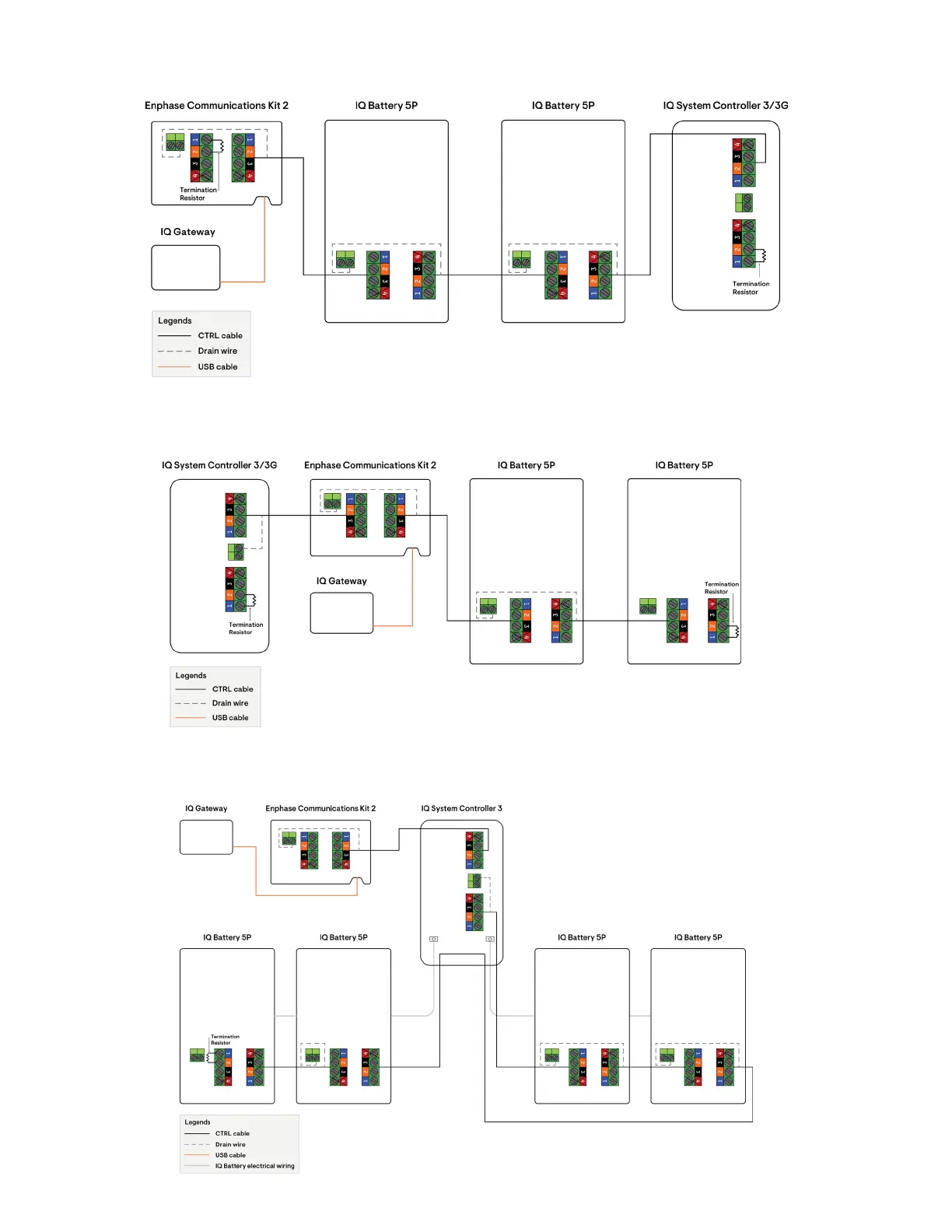

Control Wiring Configurations: Supports various wiring sequences for connecting to IQ System Controller 3/3G and IQ Battery 5P, including non-terminating and terminating node configurations.
Drain Wire Management: The drain wire of the control cable should only be terminated on one end of the control wiring between system components, preferably at the component where the control wiring for that section originates.
CT Installation: Requires installation of an IQ Battery CT on the line 2 power wire for IQ Battery 5P branches, with the CT arrow pointing towards the load.
Jumper Requirement: A shorting jumper is needed for the L2 and L3 power terminals of the IQ Gateway (or B and C ports on Envoy S Metered) to prevent interference with battery CT readings.
Conduit Routing: Control cables and the USB cable can share the same conduit when using Enphase CTRL cable (CTRL-SC3-NA-01). If the Communications Kit 2 is in a separate enclosure from the IQ Gateway/IQ Combiner or Envoy S Metered, power cables for the gateway and the USB cable should be routed through different conduits.
Commissioning: Requires the Enphase Installer App (version 8.1 or higher) to connect to the IQ Gateway, update software, and verify device connectivity.

Maintenance Features:

No User-Serviceable Parts: The Communications Kit 2 is not designed for user repair. In case of equipment failure, contact Enphase customer support for assistance or replacement.
Safety Guidelines: Emphasizes strict adherence to safety instructions, including disconnecting all power sources before servicing, ensuring correct wiring, and avoiding pinched or damaged wires.
Firmware Updates: The blinking green LED indicates a firmware update is in progress, highlighting the kit's ability to receive software enhancements.
Diagnostic LEDs: Provides clear LED indicators for quick status checks, aiding in troubleshooting and system monitoring.
Approved Attachments: Only approved attachments or accessories should be used to prevent damage or injury.
