Entes DTR-20 - Device Specifications and Connections; Physical Dimensions and Mounting; Electrical Connection Diagram; Electrical and Mechanical Features

13
14

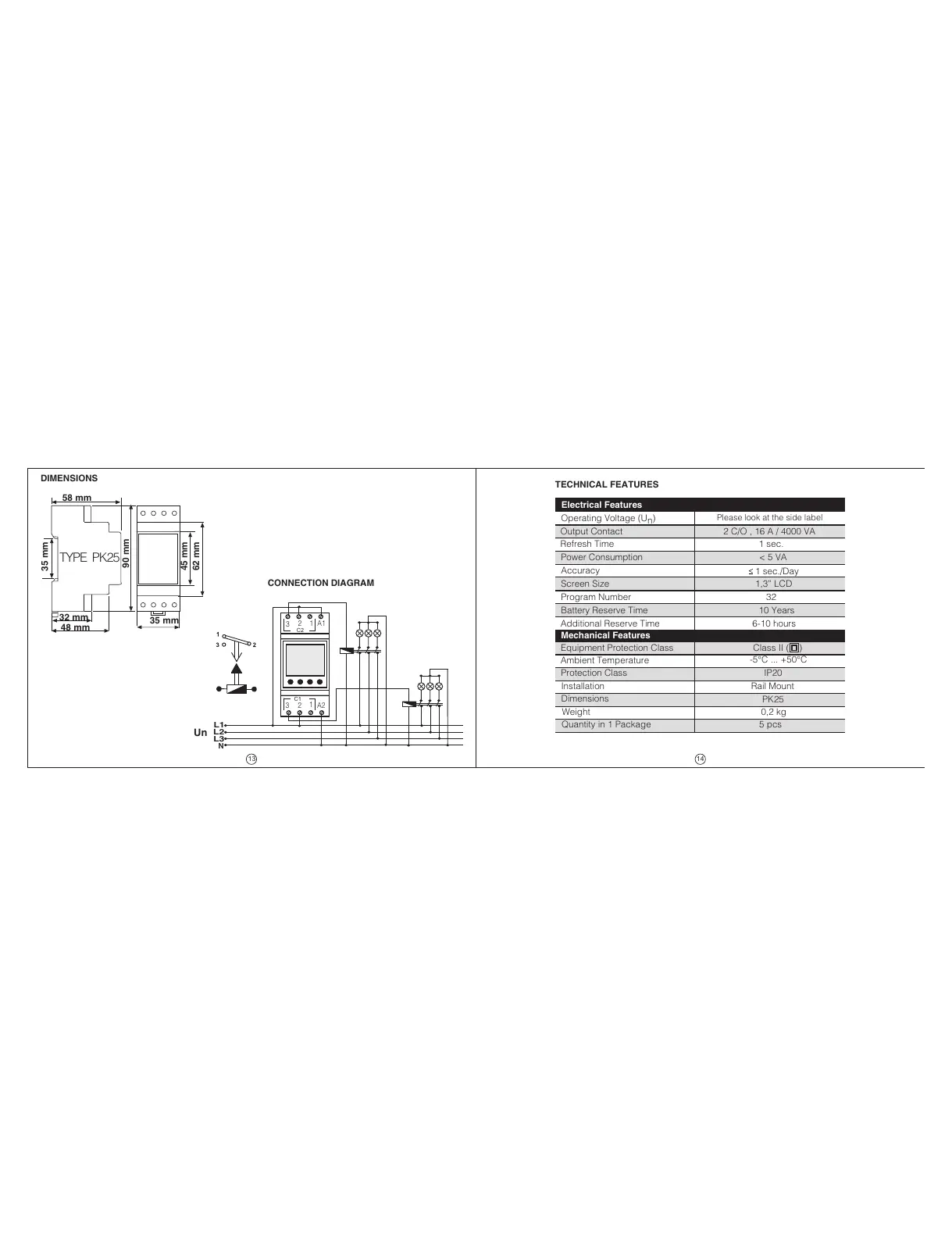

DIMENSIONS
CONNECTION DIAGRAM
L1
N
L2
L3
Un
C1
C2
1
A1
3
2
1
A2
3
2
TYPE PK25
35 mm
90 mm
45 mm 62 mm
58 mm
32 mm
48 mm
35 mm
TECHNICAL FEATURES
Additional Reserve Time
6-10 hours
Program Number
10 Years
Battery Reserve Time
32
Screen Size
Accuracy
Power Consumption
Mechanical Features
Equipment Protection Class
Ambient Temperature
Protection Class
Installation
Dimensions
Weight
Quantity in 1 Package
Refresh Time
Output Contact
Operating Voltage (U
n
)
Electrical Features
1,3 LCD
1 sec./Day
< 5 VA
1 sec.
2 C/O , 16 A / 4000 VA
Class II ( )
-5°C ... +50°C
IP20
Rail Mount
PK25
0,2 kg
5 pcs
Please look at the side label
