5.1.4. THD and Harmonics Screens (MPR-46X, MPR-47X ve MPR-42-OGT)
For models with THD, only current THD and voltage THD screens will be displayed. For models with
harmonics, individual harmonics for current and voltage can be displayed also.

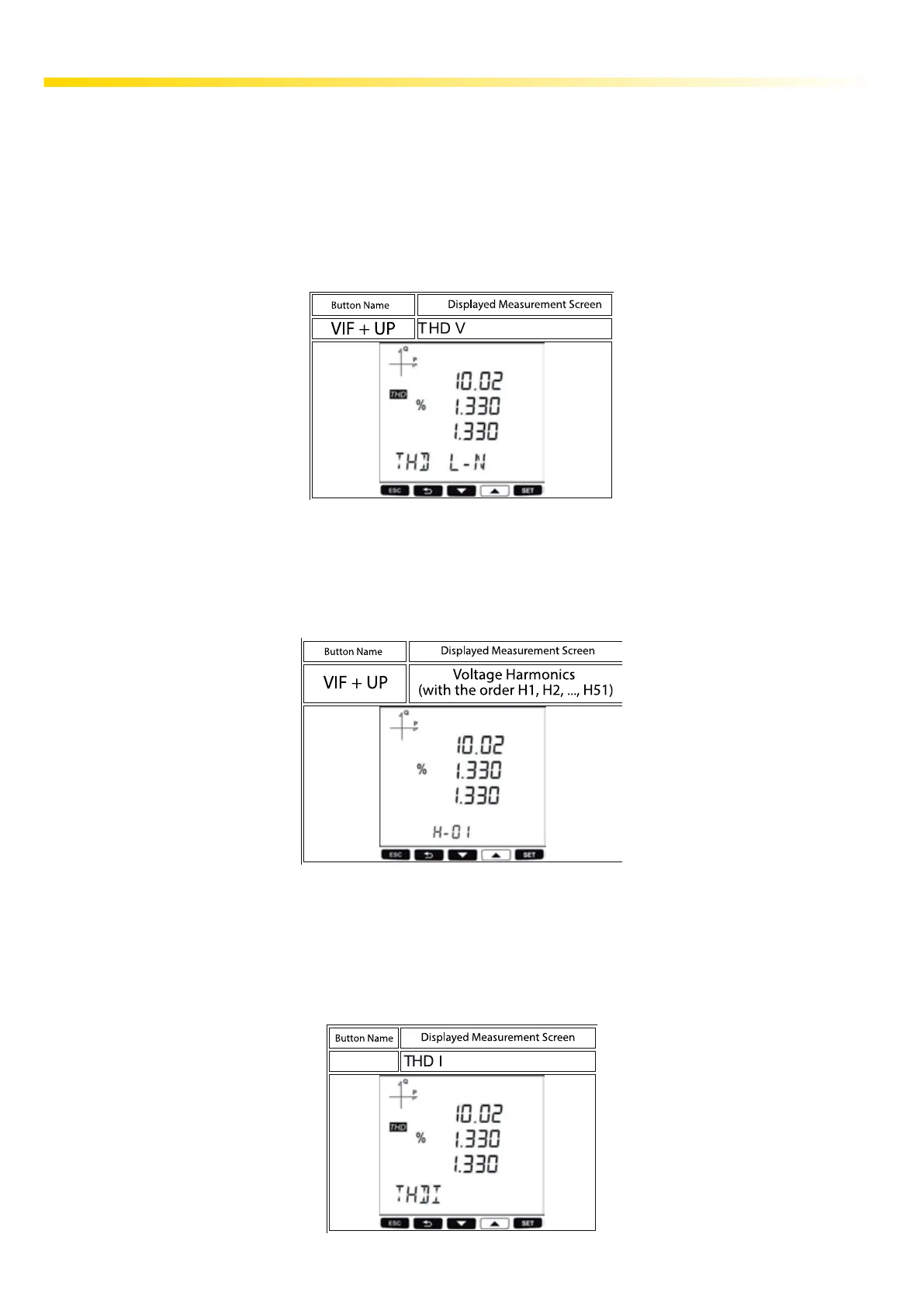

When you press V I F button Phase-Neutral or Phase-Phase Voltage screens will be opened and in
this case if you press THD H(up) button following screens will be displayed.
In this screen you can display Phase – Neutral or Phase – Phase Voltage Harmonic Distortion values
for each phase.
In this screen you can or each phase measured Phase-Neutral or Phase – Phase Voltages with
detailed Total Harmonic Distortion until 51. Harmonics.
You can display Voltage Harmonic values.
When you press V I F button current screen will display and after that if you press THD H button
following screen will be displayed.
In this screen you can display measured Total Current Harmonic Distortion for each phase.
