44

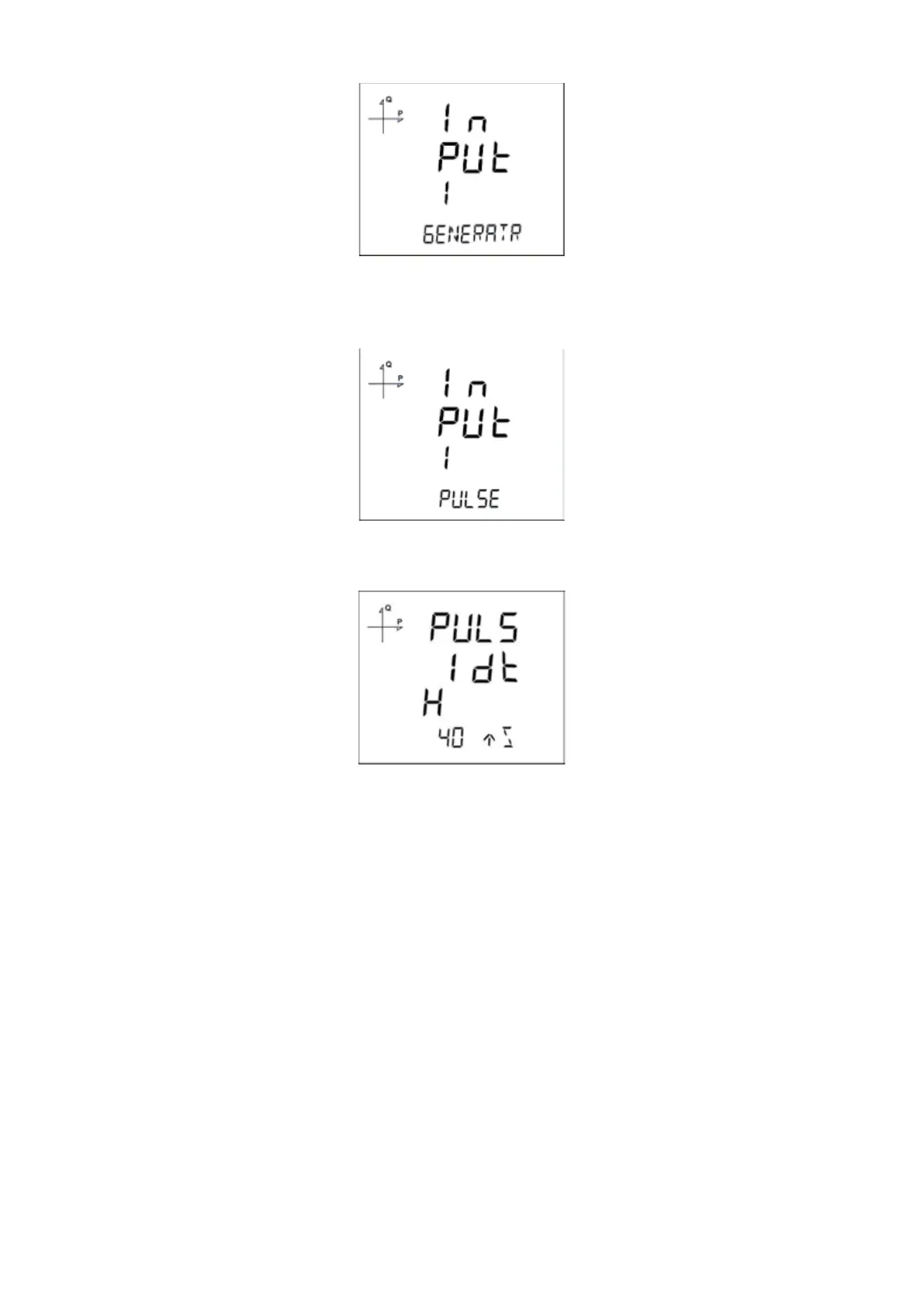

2. Generator Input: When this option is selected, the device records the energy to the generator
register depending on the input state.
3. Pulse Input: When this option is selected, the device can count the pulses that occur on the input.
It can display the pulse count on monitoring screens under “Pulse Cntr C-1” section.
a. Pulse Width Setting
For devices with pulse counting feature, the minimum time necessary for the pulse counting can be
selected from following options:
• 40 milliseconds
• 60 milliseconds
• 80 milliseconds
• 100 milliseconds
• 150 milliseconds
• 200 milliseconds
• 300 milliseconds
• 400 milliseconds
• 500 milliseconds
