4
5
+
+
- Test the good functioning of the installation before leaving the premises.
- The device cannot be used for purposes other than its intended use. All other uses cannot be guaranteed by the manufacturer
of the sensor.
- The manufacturer of the door system is responsible for carrying out a risk assessment and installing the sensor and the door system
in compliance with applicable national and international regulations and standards on door safety.
- The manufacturer of the sensor cannot be held responsible for incorrect installations or inappropriate adjustments of the sensor.
- Only trained and qualified personnel may install and setup the sensor.
- The warranty is void if unauthorized repairs are made or attempted by unauthorized personnel.
- Avoid touching any electronic and optical components, avoid vibrations, do not cover the sensor and avoid proximity to
neon lamps or moving objects.
- It is recommended to clean the optical parts at least once a year or more often if required due to environmental conditions.
PRESETTINGS
ENVIRONMENT RELAY R1 ACTIVATION
SAFETY INSTRUCTIONS
TIP
: Launch an ASSISTED SETUP to verify wiring, position of the
curtains and correct functioning of the sensor.

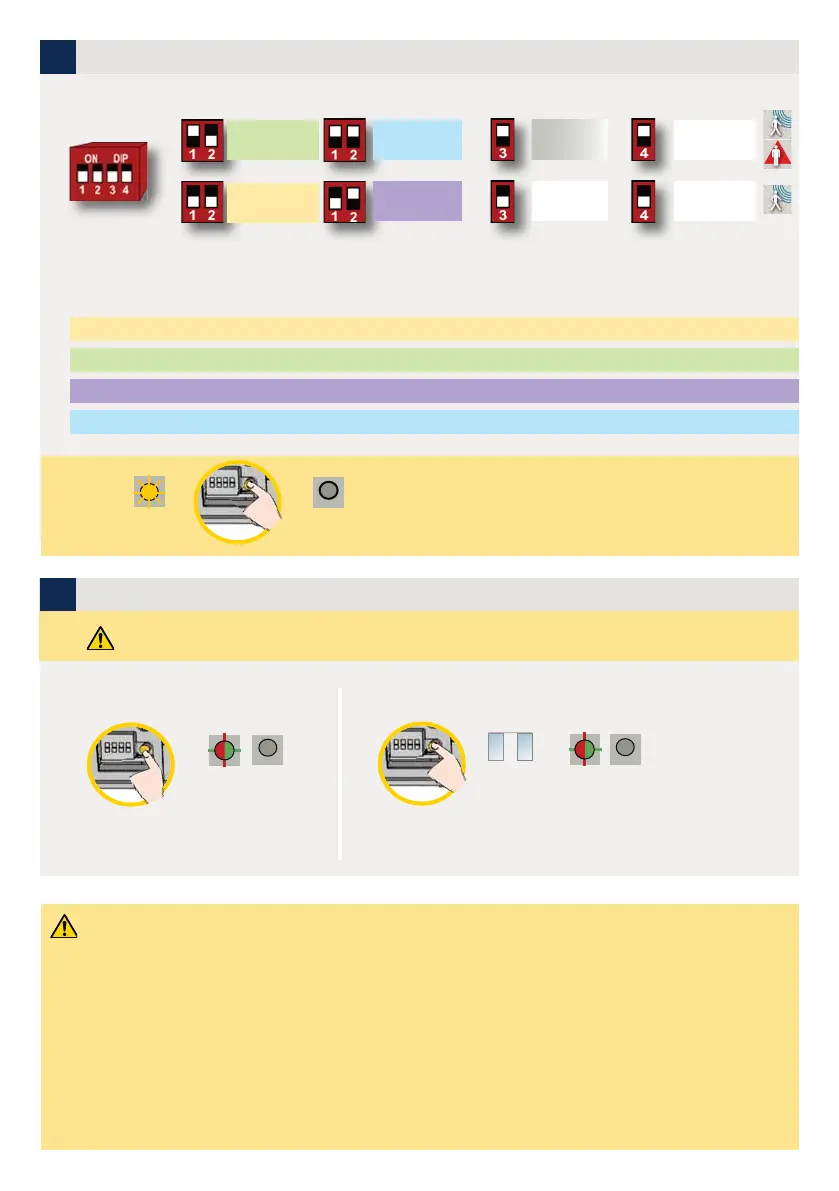

SETTINGS (by DIP-switch)
QUICK SETUP
ASSISTED SETUP
SETUP
Step outside of the infrared field before launching a setup.
LONG (> 3s)
SHORT
standard
critical
environment
shopping
street
1
hospital
2
standard
extreme
3
1
Can only be used if DIP 4 is OFF.
2
Not available on VIO-DT2. If selected, the presetting «standard» is applicable.
3
Enhanced IR-immunity which excludes EN 16005-conformity of the door system.
4
The opening relay (R1) is activated in case of detection in the radar or infrared field.
motion
or
presence
4
motion
After changing a DIP-switch, the orange LED flashes.
A LONG push on the push button confirms the setting.
Always launch a setup after changes of the DIP-settings.
LONG (> 3s)
critical environment: enhanced immunity (rain, snow, lamps...) and only 1 IR-curtain activated.
shopping street: optimized for narrow sidewalks > the opening relay (R1) is activated in case of detection in radar + IR-field.
hospital: optimized for persons with reduced mobility (PRM)
standard: standard environments (factory setting)
OFF
RED-GREEN
RED-GREEN OFF
OFF
OPEN+CLOSE
ORANGE
