PRIMARY AIRFLOW CALIBRATION • CFR
©May, 2006 Environmental Technologies, Inc. • CFR Catalog
9
.015 .03 .05 1.0 > 1.5
0404 43 250 35 250 30 43 55 250 250
0504, 0506 68 350 50 350 48 68 88 350 350
0604, 0606, 0611 75 490 60 550 53 75 97 435 530
0806, 0811, 0818 145 960 115 1000 105 145 190 840 1000
1011, 1018, 1021 235 1545 185 1600 165 235 305 1355 1600
1218, 1221, 1224, 1230 340 2250 285 2300 240 340 440 1975 2300
1421, 1424, 1430 475 3100 390 3100 335 475 615 2750 3100
1630, 1640, 1644 625 4100 520 4100 440 625 805 3595 4100
1844 810 4600 640 4600 580 810 1040 4470 4600
UNIT SIZE
MIN.
MAX.
MIN.
MAX.
400 SERIES (PNEUMATIC)
STANDARD CONTROLLER
7000 SERIES ANALOG
ELECTRONIC
DDC CONSIGNMENT CONTROLS
(See Notes Below)
MIN.
MAX.
Min. transducer
differential pressure
(in. w.g.)
Max. transducer
differential pressure
(in. w.g.)
Airflow Ranges (CFM)
1
Minimum and maximum airflow limits are dependent on the specific DDC controller supplied. Contact the control vendor to
obtain the minimum and maximum differential pressure limits (inches W.G.) of the transducer utilized with the DDC controller.
2
Maximum CFM is limited to value shown in General Selection Data.

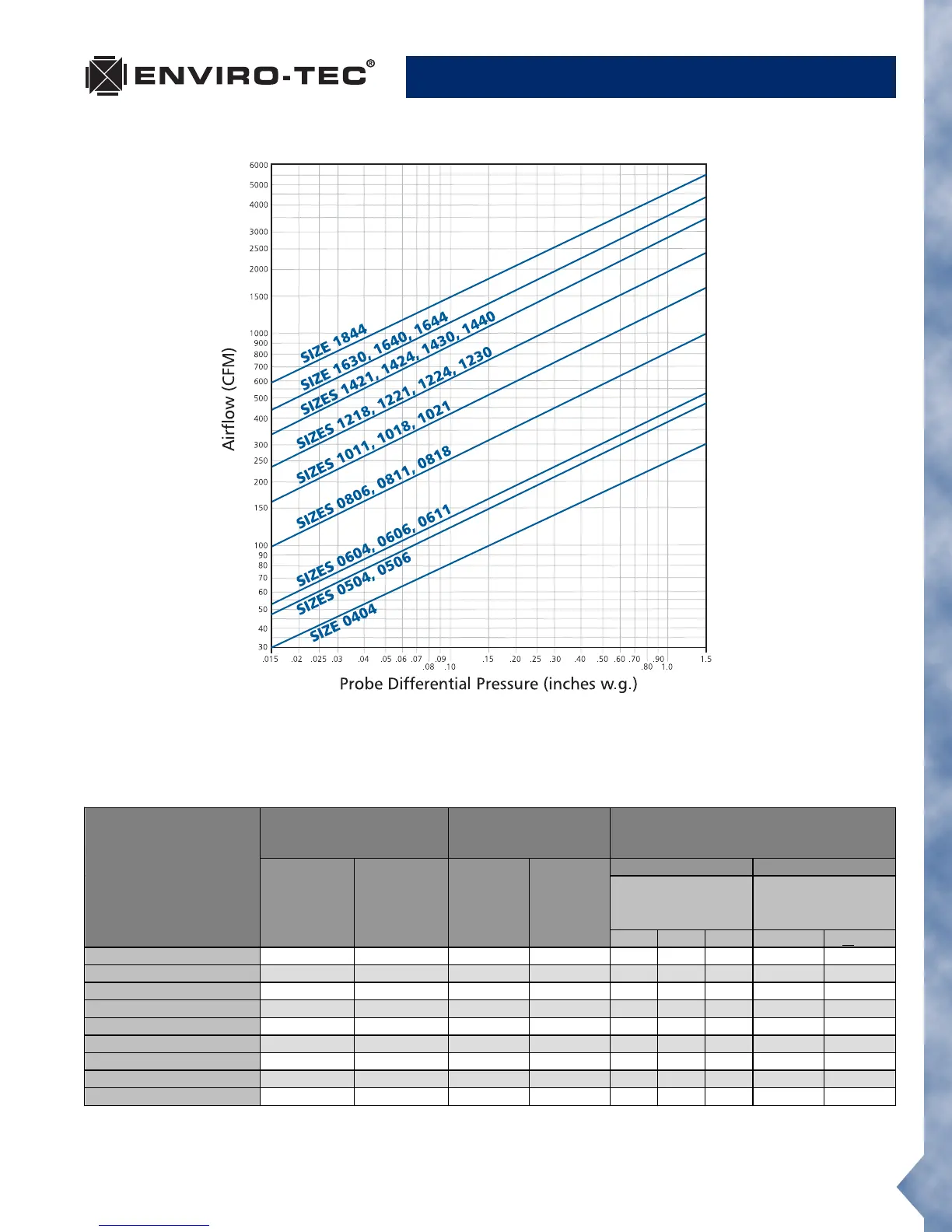

FlowStar™ Calibration Chart
(For dead-end differential pressure transducers)
NOTE: Maximum and minimum CFM limits are dependent on the type of controls that are utilized. Refer to the table below for
specific values. When DDC controls are furnished by others, the CFM limits are dependent on the specific control vendor that is employed.
After obtaining the differential pressure range from the control vendor, the maximum and minimum CFM limits can be obtained from
the chart above (many controllers are capable of controlling minimum setpoint down to .015" w.g.).

Enviro CFR Specifications

General

Brand	Enviro
Model	CFR
Category	Touch terminals
Language	English
