Enwork Expanse - Extrusion Assembly; Extrusion Description and Preparation; C Channel and Bolt Assembly

6TI0075 - Expanse Table Installation Instructions

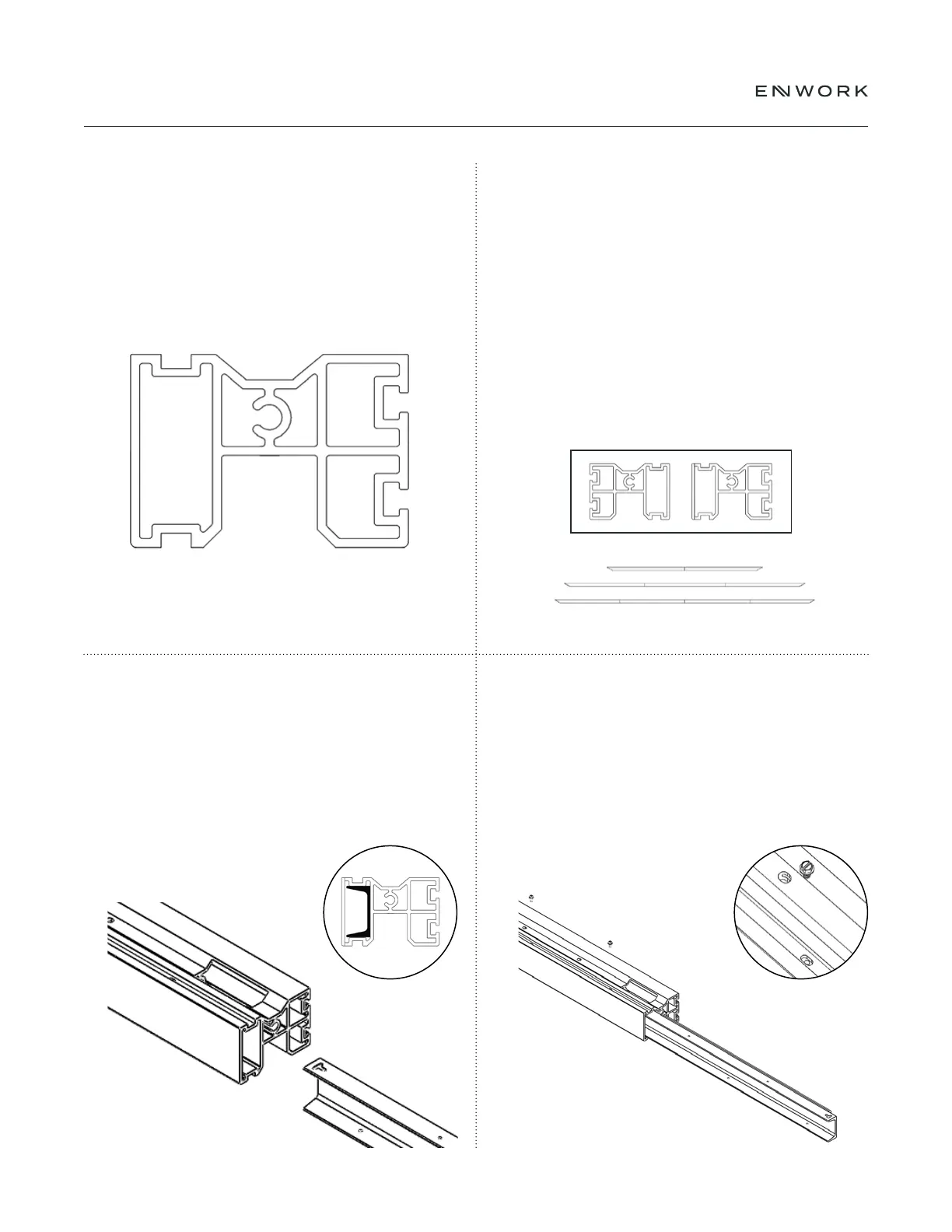

Extrusion Description
Top
Bottom
Outside
Inside
U-Channel
Space
Assemble the C Channels(EAM-1001-xx) into the
outside of the extrusion with the embossed "T"
facing up and the opening of the C facing outside.
Note: Do not tighten the bolts at this time
Place the extrusions in a clear area on a non marring
surface, in an order similar to their completed position.
Note: The Number of extrusions is dependent on table length.
Assemblies with 2 extrusions, assemble
the Left and Right Extrusion
Assemblies with 3 extrusions, skip to
section 5) Table Frame Assembly
Assemblies with 4 extrusions, assembly the Mid Extrusion
4.1
4.3
4.2
4 — EXTRUSION ASSEMBLY
Line up 2 of the threaded holes. Install (2) .25"-20 x
.50". and nger tighten. Repeat for all Extrusion.
Note: Do not tighten the bolts at this time
4.4
