8
INSTALLATION GUIDE

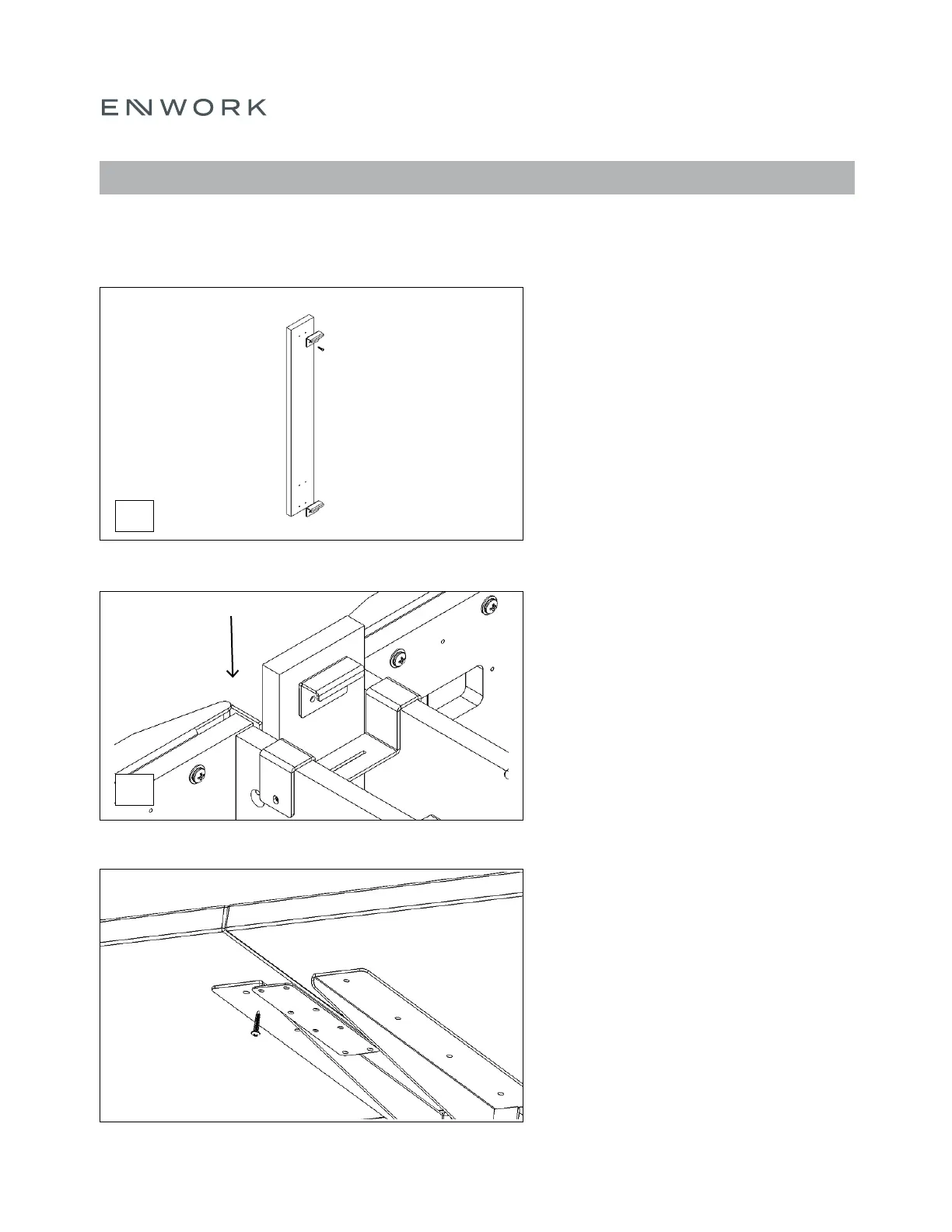

Install Panel Clips to the Side Filler Panel using
the provided #8 x ¾” Pan Head Phillips screws.
Note: Use top most/bottom most holes and
note the orientation of the clips in Figure 4.7.
Slide the Side Filler Panel over the Ganging
Brackets engaging the Panel Clips into the slot top
& bottom.
Note: Side Filler Panels are ONLY added to the
ends of a table run.
For side to side ganging, attach the Flat Plate to
the underside of 2 side to side tables using the
provided #10 x 1” Pan Head Phillips screws.
Note: Place approximately 4” away from the front
edge of the worksurface .
FIGURE 4.7
FIGURE 4.8
FIGURE 4.9
4) ASSEMBLY: GANGING
2x
2x
