INSTALLATION GUIDE

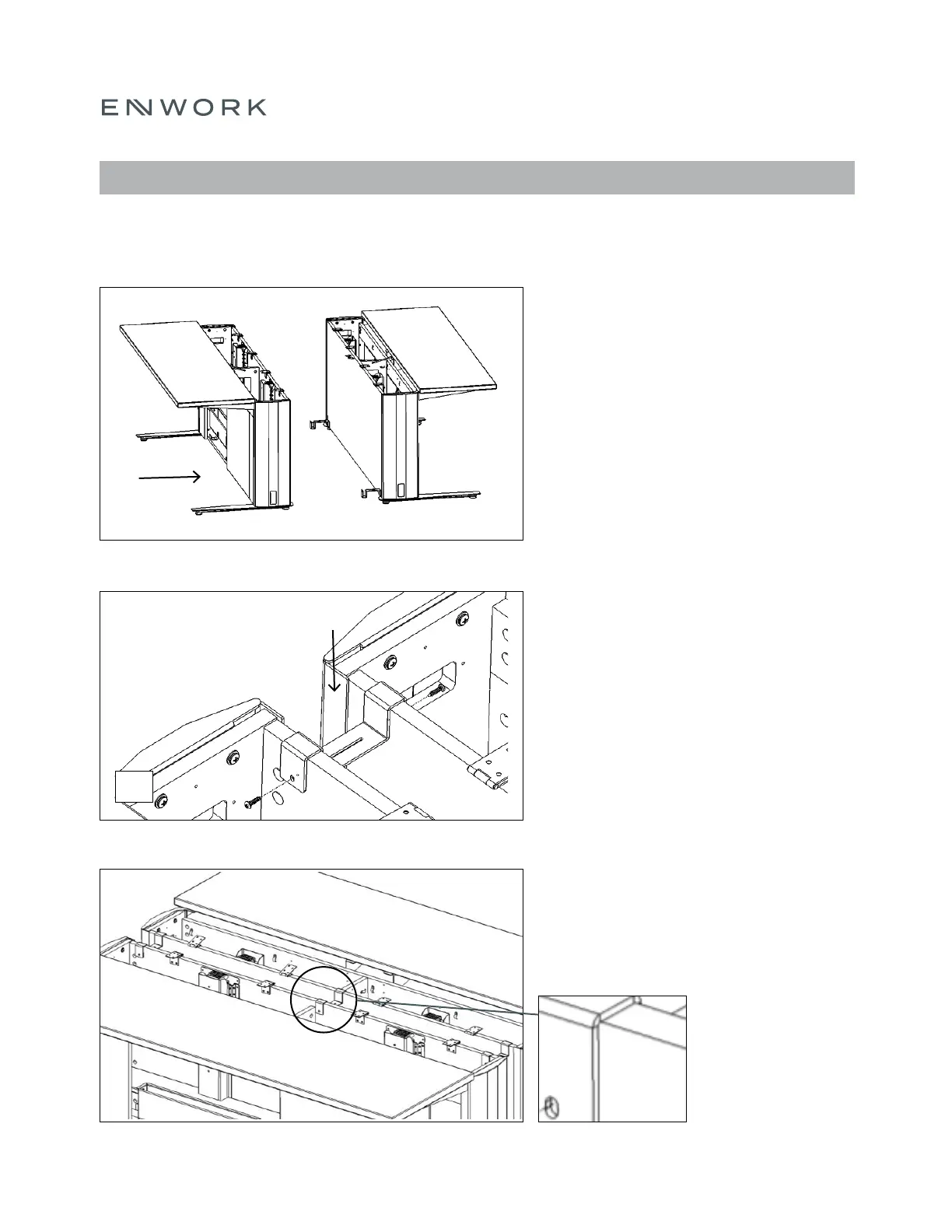

Locate another table over the other end of the
bottom Ganging Bracket, repeating steps 2 & 3
(Figure 4.2 & 4.3).
Locate a Ganging Bracket over the back panels of
the case assemblies and secure both ends using
the provided #8 x ¾” Pan Head Phillips screws.
Note: There is a pilot hole to locate position.
Locate a Ganging Bracket over the back panels of
the case assemblies slightly off center and secure
both ends using the provided #8 x ¾” Pan Head
Phillips screws.
Note: There is NO pilot hole to locate position.
FIGURE 4.4
FIGURE 4.5
FIGURE 4.6
4) ASSEMBLY: GANGING
2x
