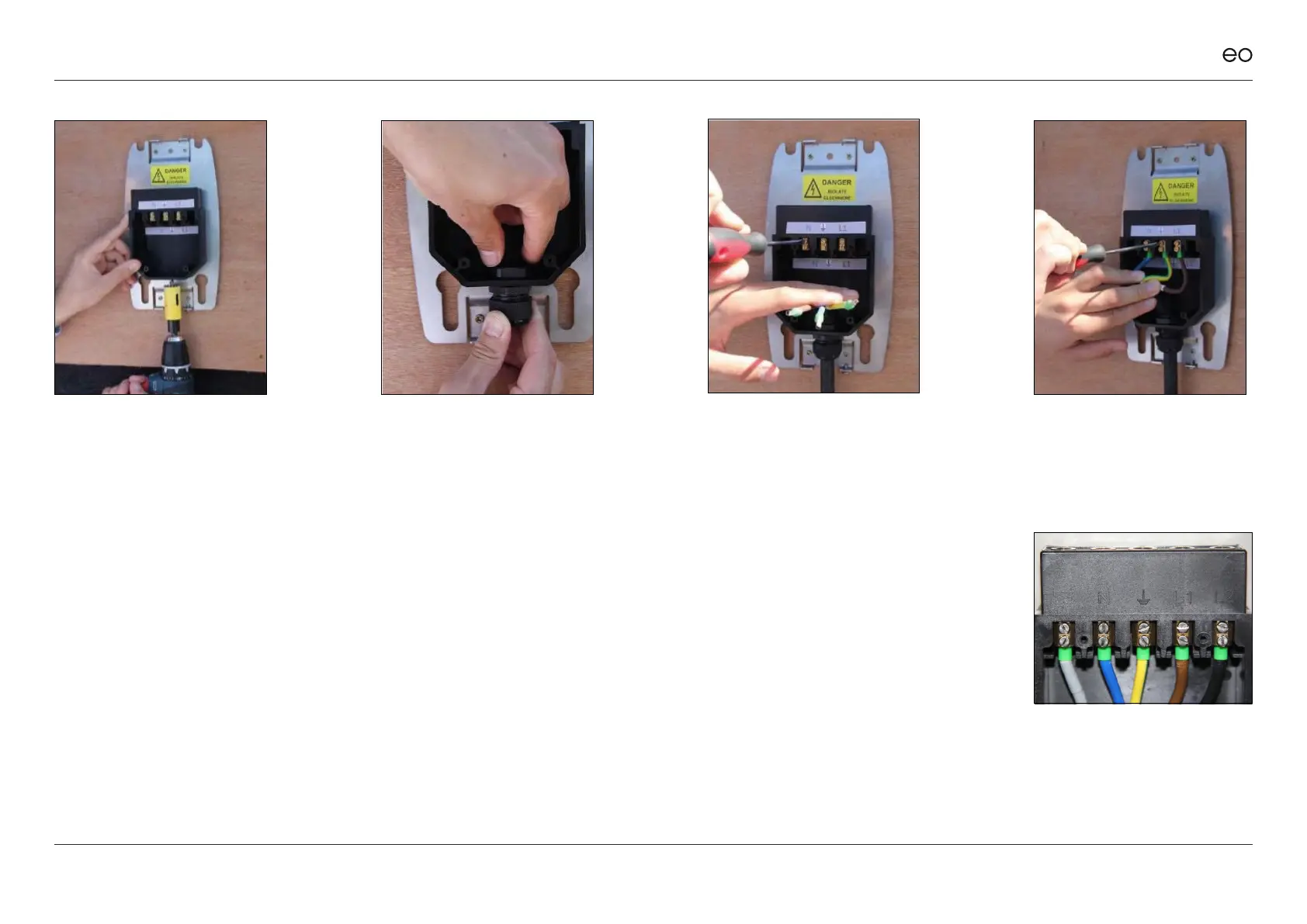

2.05
Using a hole cutter, cut a hole
into the rear plate connector for
the gland.
2.06
Fit the correct sized gland for
your power cable.
EO Genius & EO Hub Installation Guide
© EO Charging 2021 7
2.07
Unscrew the 6 screws (10
screws if installing a 3-phase
unit), feed the cable through the
gland and secure. Prepare the
ends and if stranded or multi-
stranded cable is utilised make
sure to t ferrules.
2.08
Connect the power cables to
the pins as shown – Single
Phase or Three Phase.
To Next Page
