Eonon X20 - Wiring Diagram

Reversing Light
05
A
1 2 3 4 5
6 7 8 9 10 11
12
External Microphone
USB port (Only for charging)

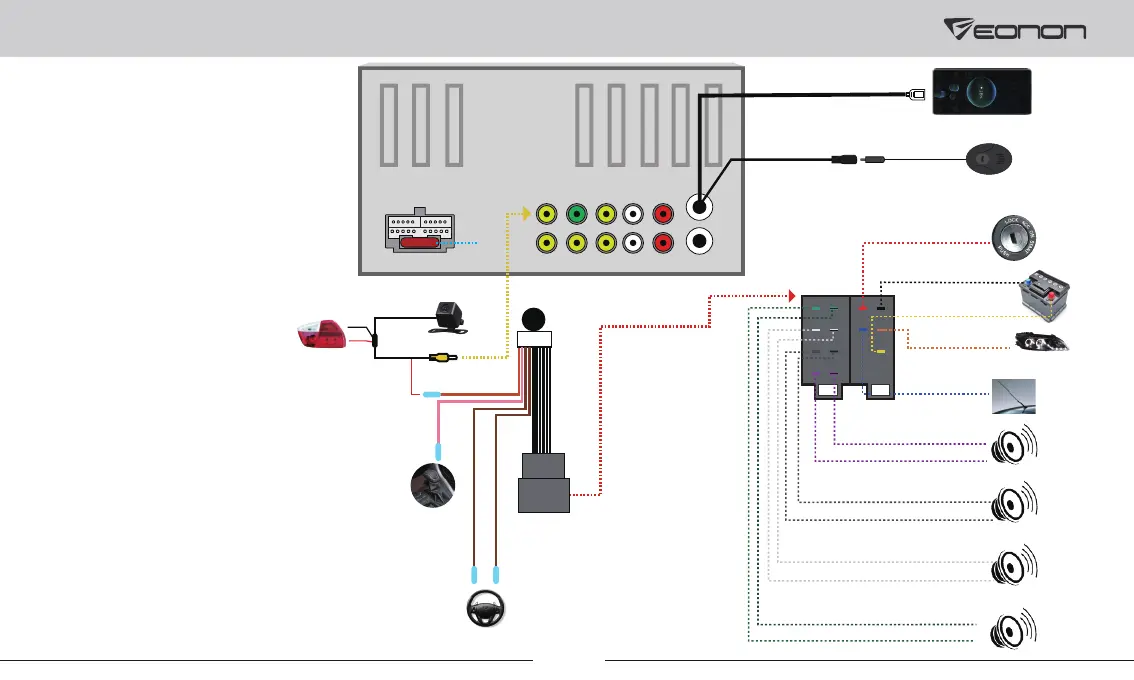

Wiring Diagram
ISO Port
BATT
Illumination Wire
Auto Antenne
GND
ACC
Rear Speaker L -
Front Speaker L +
Rear Speaker L +
Front Speaker L -
Front Speaker R +
Front Speaker R -
Rear Speaker R +
Rear Speaker R -
Reverse Wire
Brake Wire
Key 1
Key 2
ISO Port
A
1. Backup Camera Input
2. Subwoofer Output
3. Video Input
4. Audio Input L
5. Audio Input R
6. Front Camera Input
7. Video Output 2
8. Video Output 1
9. Audio Output L
10. Audio Output R
1 1. Radio Antenna Input
12. Car Stereo Fuse
Brake
Steering wheel
headlight
Rear Camera
