EOS FUTURO-SD4 - Page 3

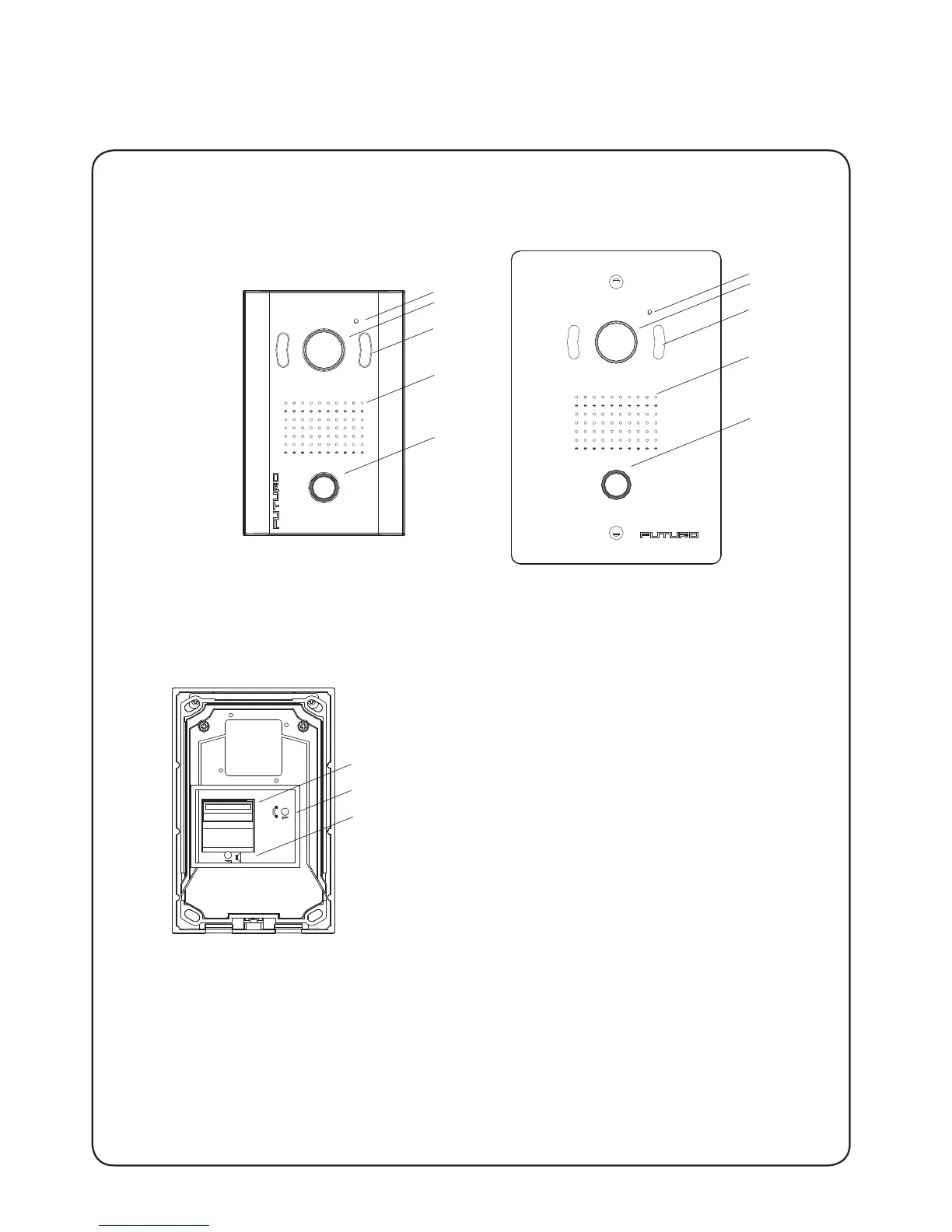

3. Door Station
3.1 Description
2
1. Microphone
2. LEDs for Night vision
3. Speaker
4. Call button
5. Camera
6. Terminals
A : Audio
G : Ground
B : 12V DC from Monitor
V : Video to Monitor
D/O : Door Open
M+ : DC Power for automatic recording
by motion detection
7. Microphone Sensitivity Adjustment
8. Speaker Volume Adjustment
2
4
3
1
5
2
4
3
1
5
6
8
7
FUTURO-CZ4 FUTURO-CP4
