EOS FUTURO-SD4 - Page 6

6

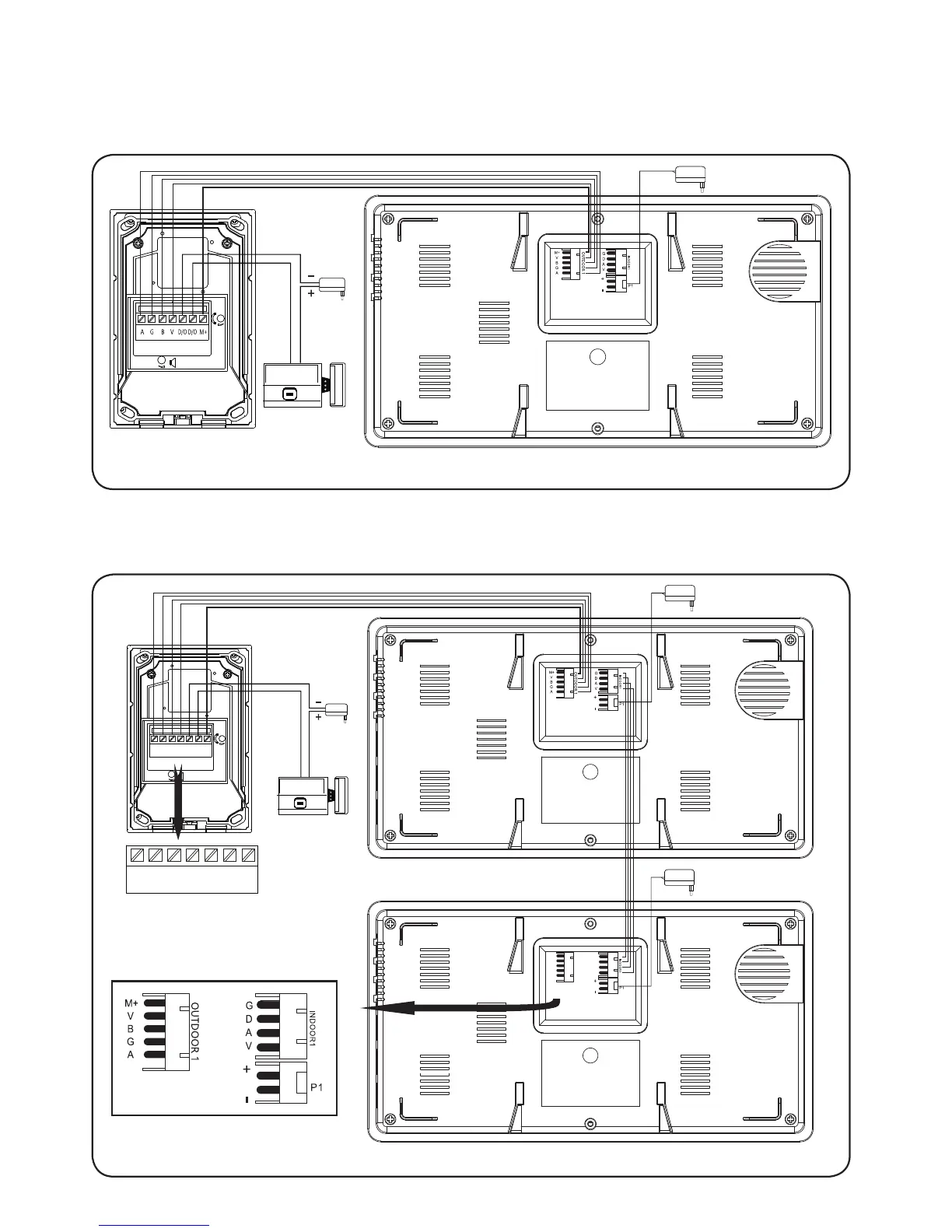

4. Wiring diagrams
4.1. Typical diagram #1: One outdoor station with one monitor(FUTURO-SD4/4B)
Outdoor Station
Monitor
Lock
4.2. Typical diagram #2: One outdoor station with two indoor monitors
Monitor A
Monitor B
Outdoor Station
Lock
Power
Supply
for Lock
OUTDOOR 1
M+
V
B
G
A
G
D
A
V
A G B V D/O D/O MD+
A G B V D/O D/O M+
Power
Supply
for Lock
13V DC 1.2A
13V DC 1.2A
13V DC 1.2A
