7

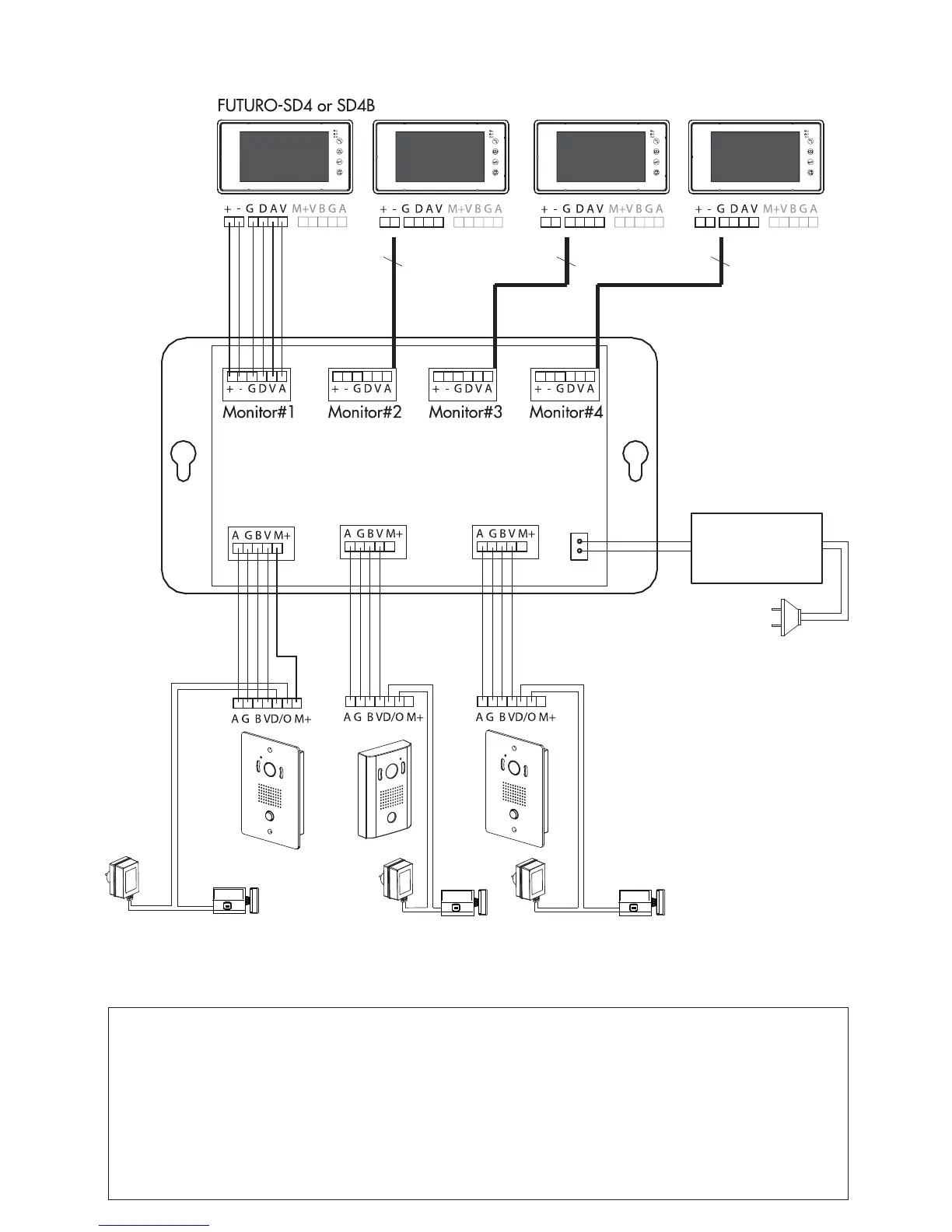

4.3. Typical diagram #3: 3 outdoor stations with 4 monitors
(with FUTURO-CPU4)
-
+
Electric Lock
Power Supply
for Electric Lock
6 wires
4 wires
4 wires
&
M+ wire
4 wires
Futuro-CZ/CP4
Camera#1
Camera#2
Camera#3
DC13V 3Amp
Power Supply for
FUTURO-CPU4
5 wires
Camera Terminal description
A Audio 4.6VDC when standy, 12V DC when Door Open
G Ground 0V
B B+ 12V DC power from Monitor
V Video Composit Video signal to Monitor
D/O Door Open Dry contact output for Electrical Door Strike
M+ Motion+ Optional 12V DC from Monitor for Automatic Recoding
by Motion Detection. Only available to Camera#1
FUTURO-CPU4
6 wires
6 wires 6 wires
To Next Page
