Ephoca HPAC 2.0 Installation Manual

17

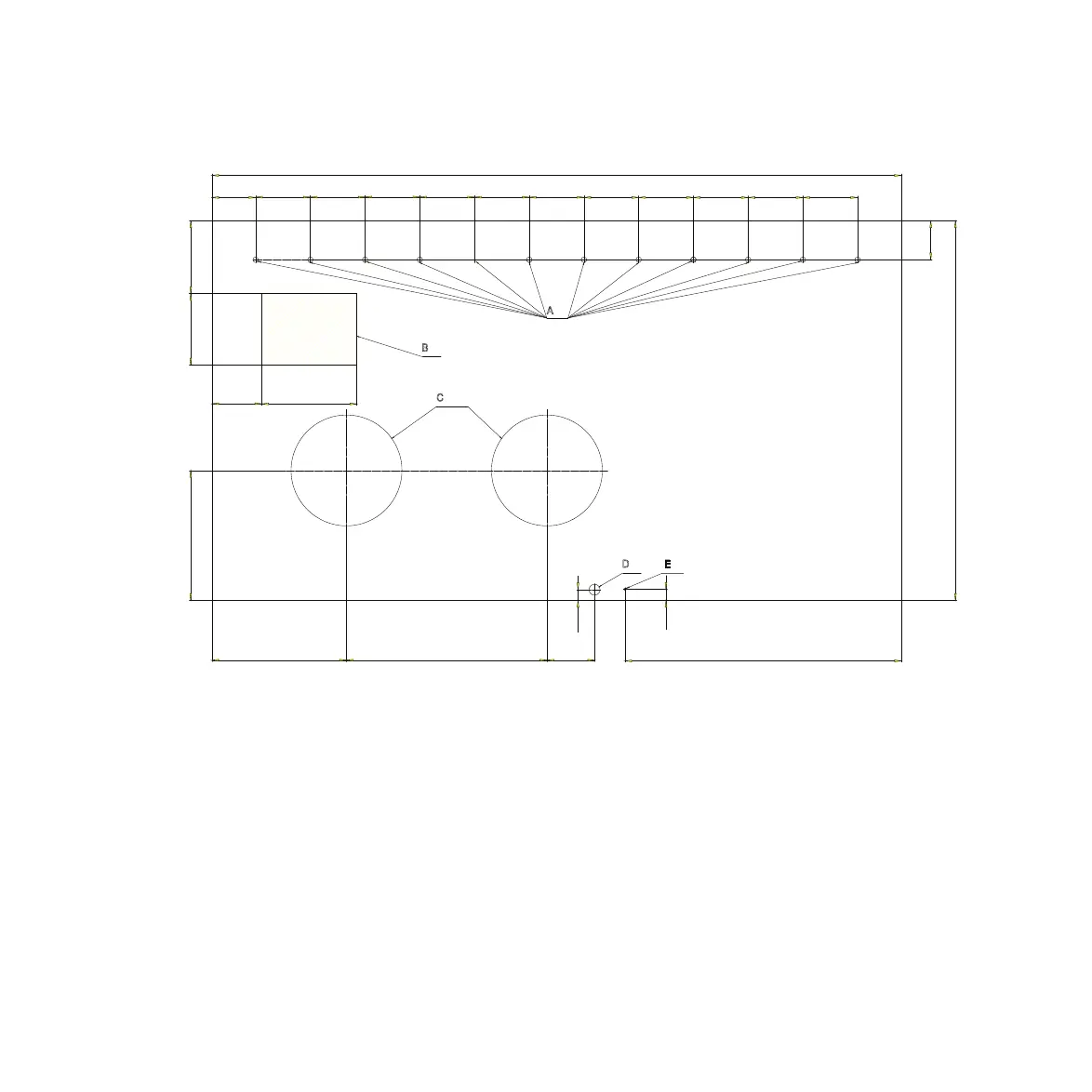

A Holes for fastening wall bracket
B Electrical connection area
C Holes for air vent pipes
D Holes for external condensate drain
E Anti-lifting bracket hole
E
C
A
D
B
⁴¹⁄64"
15 ²⁹⁄32"
³⁹⁄64"
2 ³⁄4"
7 ³¹⁄64"
11 ¹⁷⁄32"7 ³⁄4"
5 ¹⁵⁄32"
2 ⁷⁄8"
4 ⁷⁄64"
4 ³⁄16"
2 ¹⁵⁄64"
1 ⁴⁹⁄64"
39 ¹¹⁄16"
21 ²⁷⁄32"
1 ³¹⁄32"
3 ⁵⁄32"
3 ⁵⁄32" 3 ⁵⁄32"
3 ⁵⁄32"
3 ⁵⁄32" 3 ⁵⁄32" 3 ⁵⁄32" 3 ⁵⁄32" 3 ⁵⁄32"
3 ⁵⁄32"

Ephoca HPAC 2.0 Specifications

General

Brand	Ephoca
Model	HPAC 2.0
Category	Heat Pump
Language	English
