Installation
Page 3-8
Section 3-4
Device Connectors
GND PME
+5V Standby

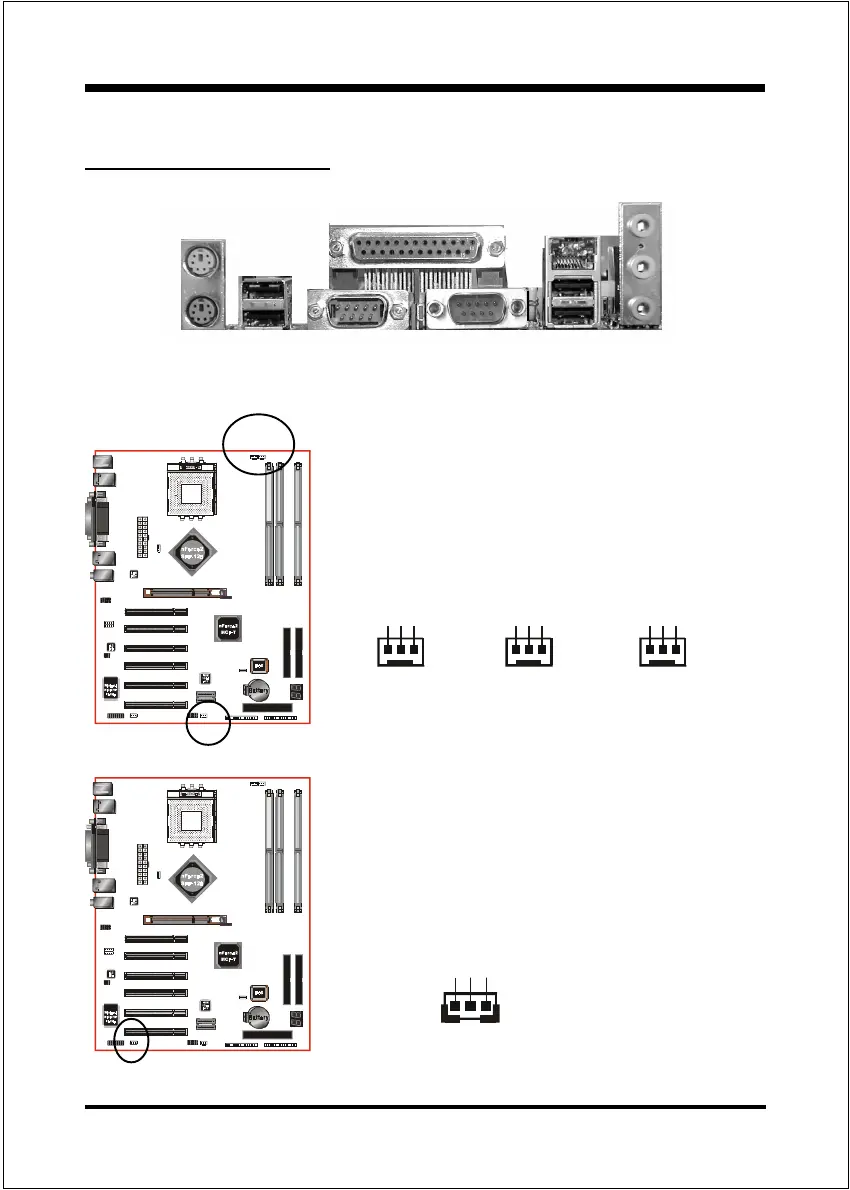

FAN1 / FAN2 / FAN3:
CPU/Power/Chassis Fan Power Connectors
FAN1:
CPU Fan
FAN2:
PW Fan
WOL1:WOL (Wake On LAN) Connector
Reserved for an NIC (Network Inter-
face Card) to wake the system from
power saving mode.
GND +12V Rotation
FAN3:
Chassis Fan
GND +12V Rotation
FAN1
FAN3
Figure 10 - I/O Ports
FAN2
USB2.0 ports
Parallel Port
Mic-in (Pink)
Line-out (Green)
Line-in (Blue)
PS/2 Mouse
PS/2 Keyboard
COM1
COM2
RJ45 LAN
(Optional)
USB2.0 Ports
GND +12V Rotation
