Installation
Page 3-10
#
$
GND
SPDIF_IN
SPDIF: Sony/Philips Digital Interface
This connector is the digital link between
the mainboard and your audio devices, such
as CD player, sampler or DAT recorder. It
allows the digital transmission of audio data
in SPDIF format.

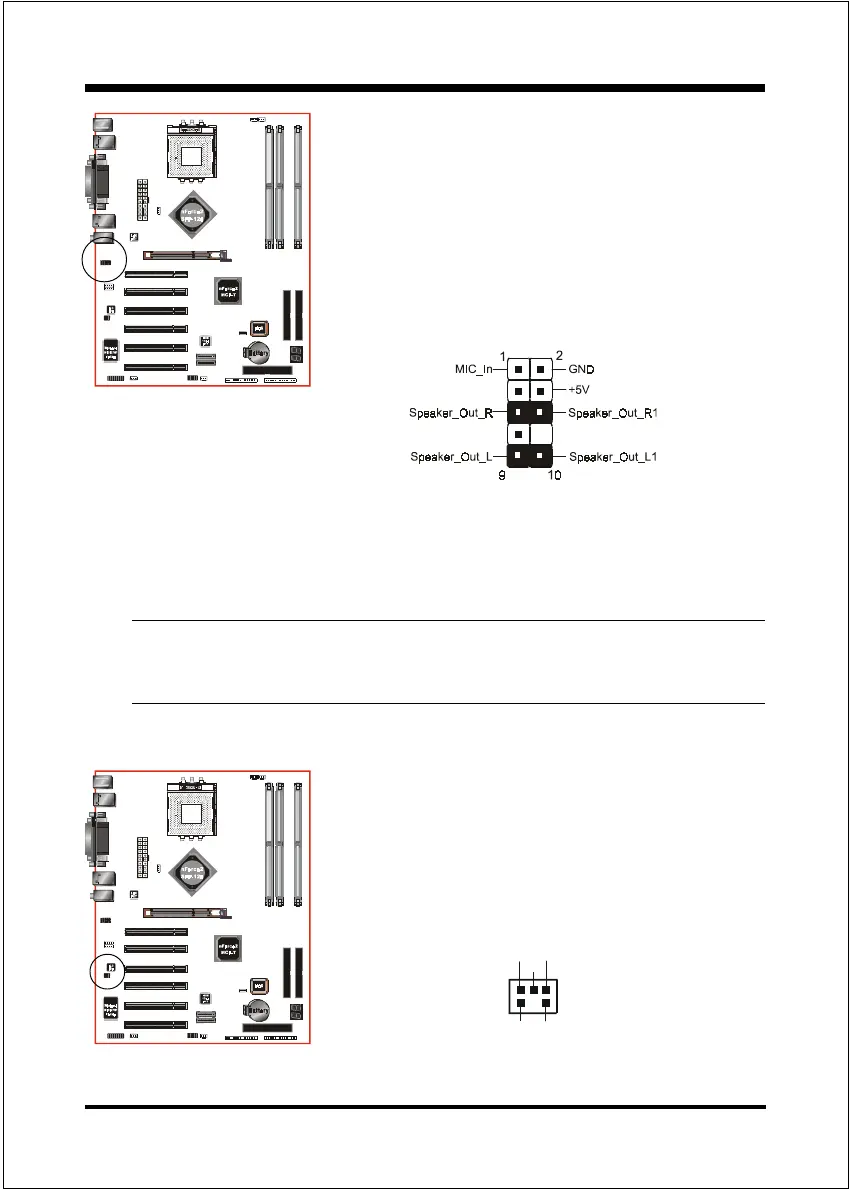

AUD2: Front Panel Audio Connector
When the jumpers are removed and this
connector is used for front panel audio.
The type of front panel line-out phone jack
is normal close. Without phone plug
inserted, the rear panel audio is enabled.
With phone plug inserted, the rear panel
audio is disabled.
Settings
Pins (5-6) & (9-10) Short (default): Only the Onboard
Rear Audio Speaker can be used.
Pins (5-6) & (9-10) Open: Only Front Panel Audio
Speaker can be used.
!!
!!
! In 2-Channel audio mode, Mic-In is shared for both front panel and rear panel.
In 6-Channel audio mode, the Mic-In is dedicated for front panel used, and rear
panel Mic-In function will switch to Center and subwoofer support.
To Next Page
