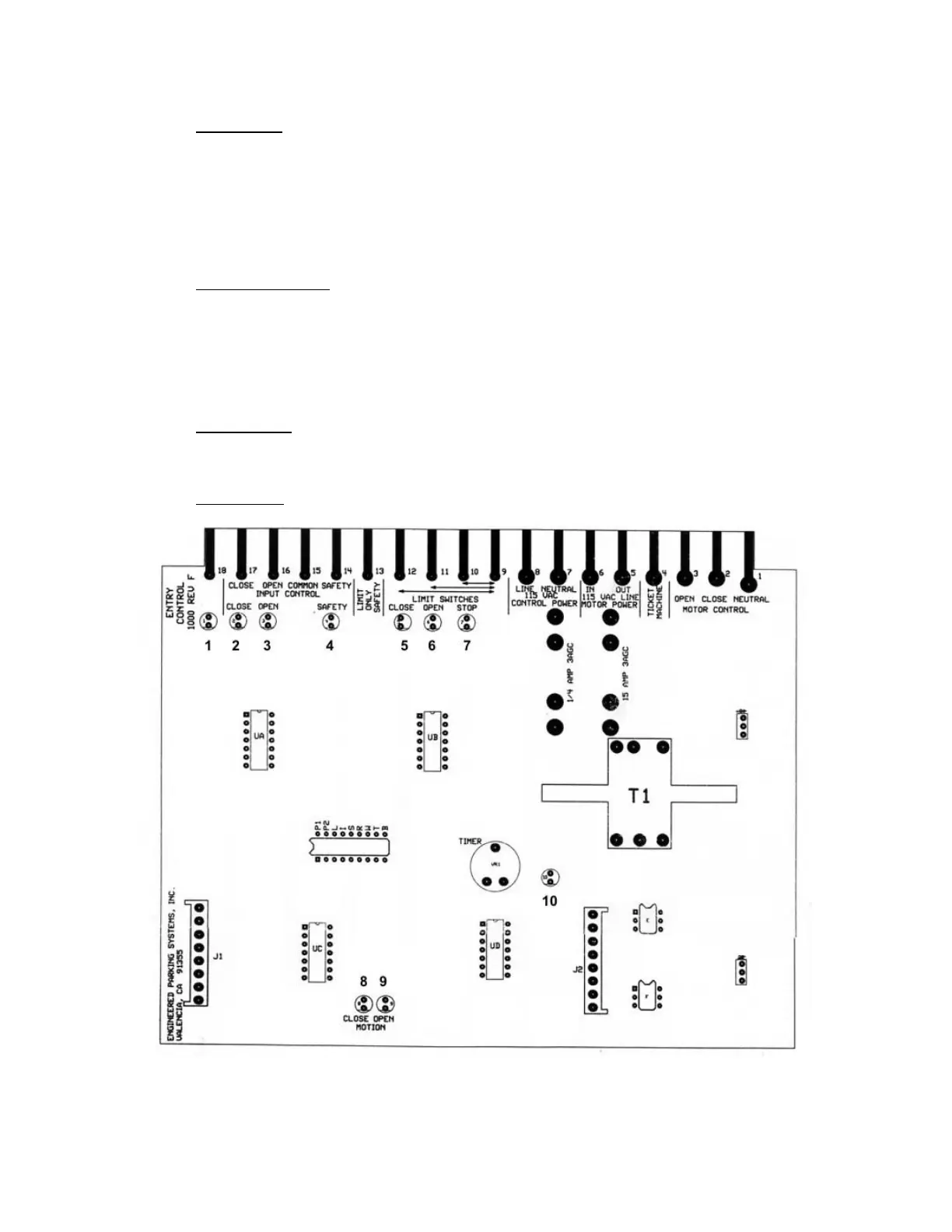

ENTRY CONTROL 1000 CONTROL BOARD
DESCRIPTION OF L.E.D.’s
LED 1:
LED 2:
LED 3:
LED 4:
LED 5:
LED 6:
LED 7:
LED 8:
LED 9:
LED 10:
INPUT LIGHTS
(USED WITH DOUBLE DIRECTION LOGIC ONLY) ILLUMINATES WHEN CLOSING LOOP IS ACTIVATED
WHEN GATE IS WIRED FOR DOUBLE DIRECTION LOGIC.
(CLOSE) ILLUMINATES AS LONG AS CLOSE INPUT IS PRESENT.
(OPEN) ILLUMINATES AS LONG AS OPEN INPUT IS PRESENT.
(SAFETY) ILLUMINATES AS LONG AS SAFETY SIGNAL IS PRESENT OR AS LONG AS CLOSING LOOP IS
ACTIVATED.
LIMIT SWITCH LIGHTS
(CLOSE) ILLUMINATES WHEN GATE IS OPEN. (SHOWING WHAT NEXT FUNCTION IS GOING TO BE) OR
WHEN GATE IS IN MOTION. EXTINGUISHES WHEN GAE IS CLOSED (May be dim).
(OPEN) ILLUMINATES WHEN GATE IS CLOSED. (SHOWING WHAT NEXT FUNCTION IS GOING TO BE)
OR WHEN GATE IS IN MOTION. EXTINGUISHES WHEN GATE IS OPEN (May be dim).
(STOP) ALWAYS ILLUMINATE UNLESS STOP INPUT IS PRESENT. (OPEN CONTACTS ACROSS STOP
INPUT)
MOTOR LIGHTS
(CLOSE) ILLUMINATES WHILE MOTOR IS RUNNING IN CLOSE CYCLE.
(OPEN) ILLUMINATES WHILE MOTOR IS RUNNING IN OPEN CYCLE.
POWER LIGHT
(DC) ALWAYS ILLUMINATED UNLESS POWER IS REMOVED. (EX: BLOWN FUSE, ETC).
