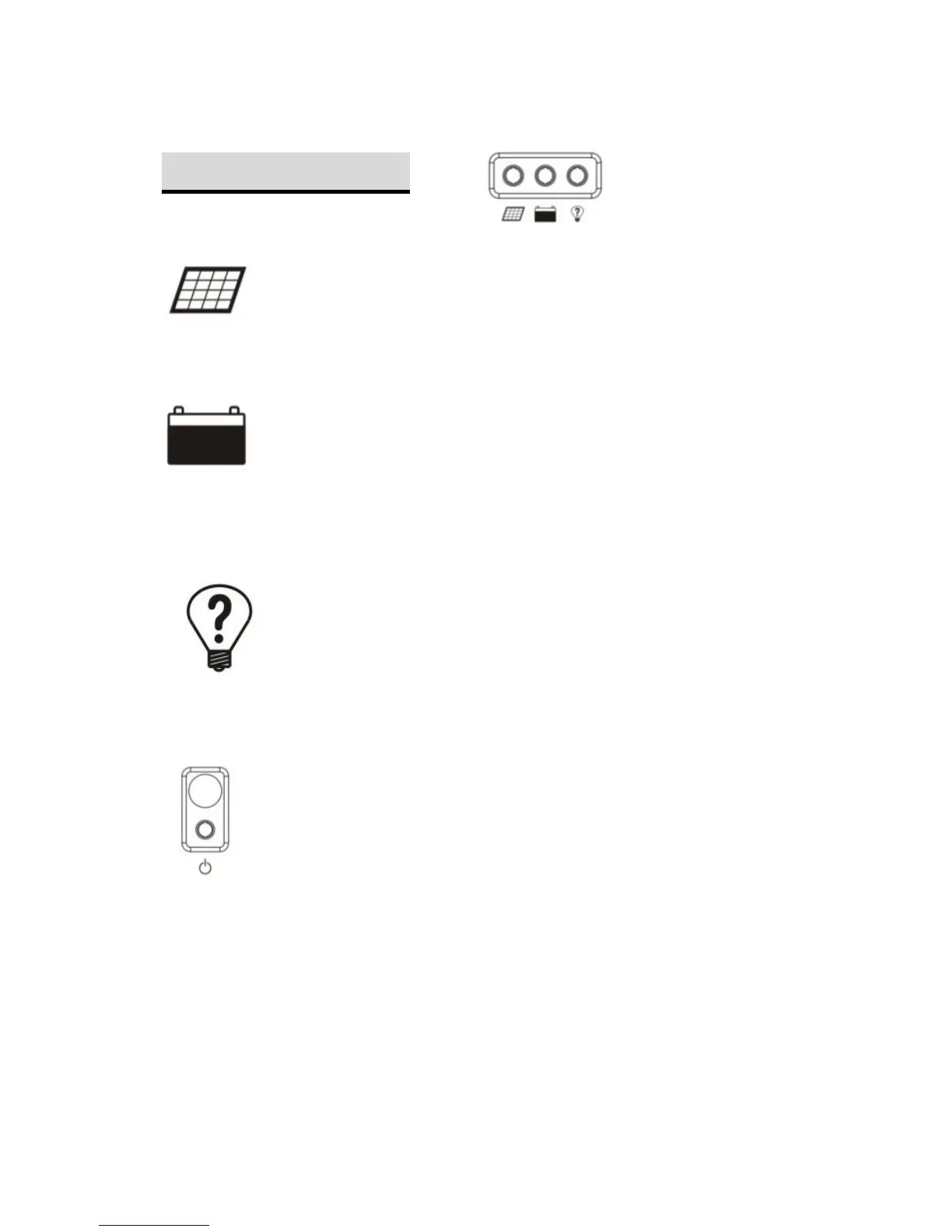

LED indicator
Green ON when solar is charging battery
Green blink when the system over voltage
Green ON when battery level in the right range
Green slowly flashing when battery level full
Yellow ON when battery level low
Red ON when loads cut off
Red slowly flashing when it’s over load
(The load amps is 1.25 times of rated current for 60 seconds,
or the load amps is 1.5 times of rated current for 5 seconds)
Red fast flashing when the load is short-circuit.
Red ON when the switch is ON.
Red OFF when the switch is OFF.
The default status is ON
Please note:
1. The output will be cut off once there is over load or short circuit.
While short circuit occurs, the controller will have 4 automatic loads
reconnect attempts. There will be 10s between the first three attempts and
20s between the 3
rd
and 4
th
attempts. For the fifth short circuit, the load
can be only reconnected after 24hours.Anytime, please check the load and
