Epsolar EPIPDB-COM series - Troubleshooting; Mechanical Drawing

TROUBLESHOOTING:
1. LED blinking, short circuit, check the PV and battery, and make sure that they are in
correct connection.
2. LED slowly flashing, fully charged.
3. LED ON, on charging
4. LED frequent flashing, no charging, and there is battery
5. LED OFF, no battery or over voltage.

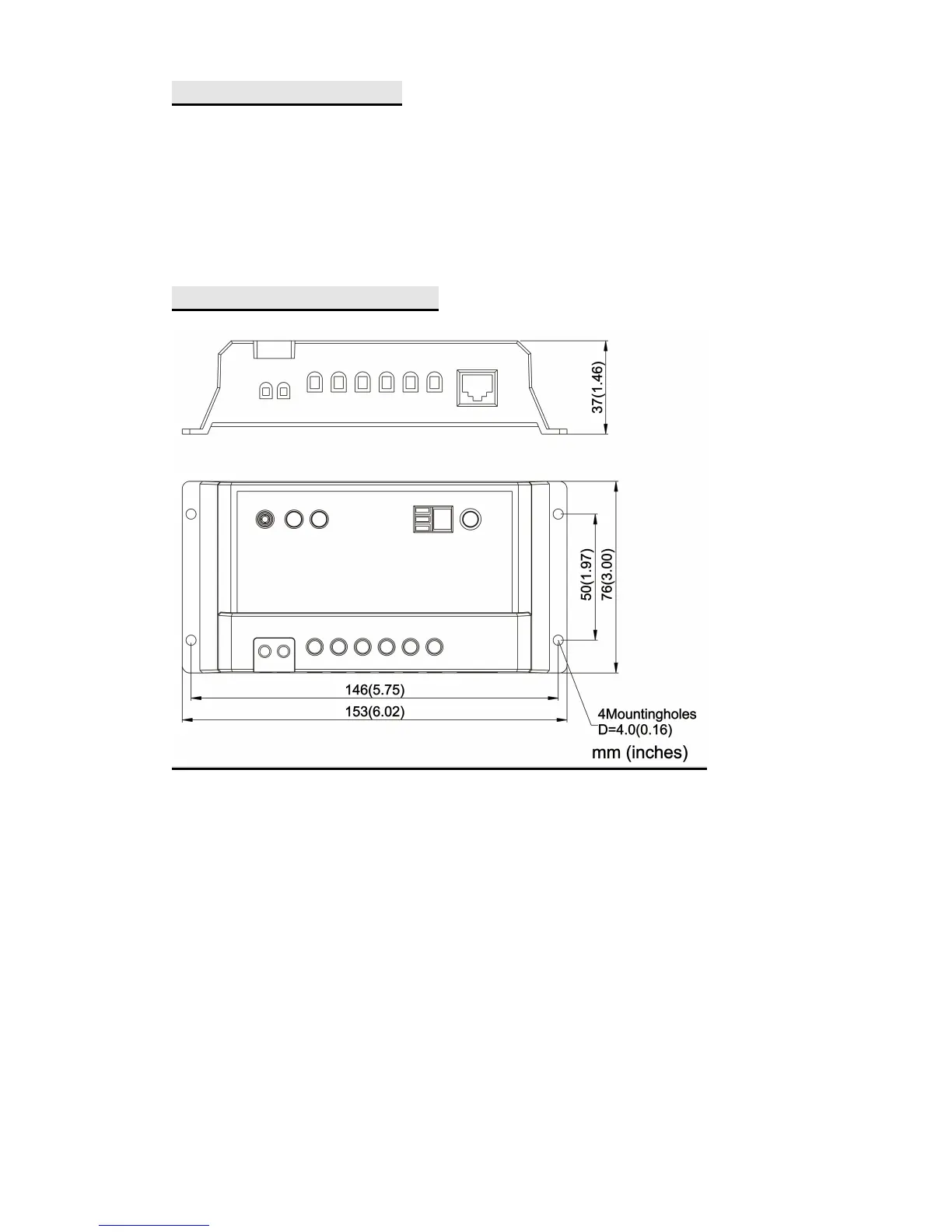

MECHANICAL DRAWING:
