5
Red
Slowly Flashing Overload
Red
Fast Flashing Short circuit
Charging, load and battery indicator
(red)flashing simultaneously
System voltage
error
Charging, load and battery
indicator(orange)flashing simultaneously
Controller
overheating
Switch Button Function
1) Manual Control ON/OFF of the load.
2) Resume to normal work after the fault is cleared up.
4.2
Setting Operation

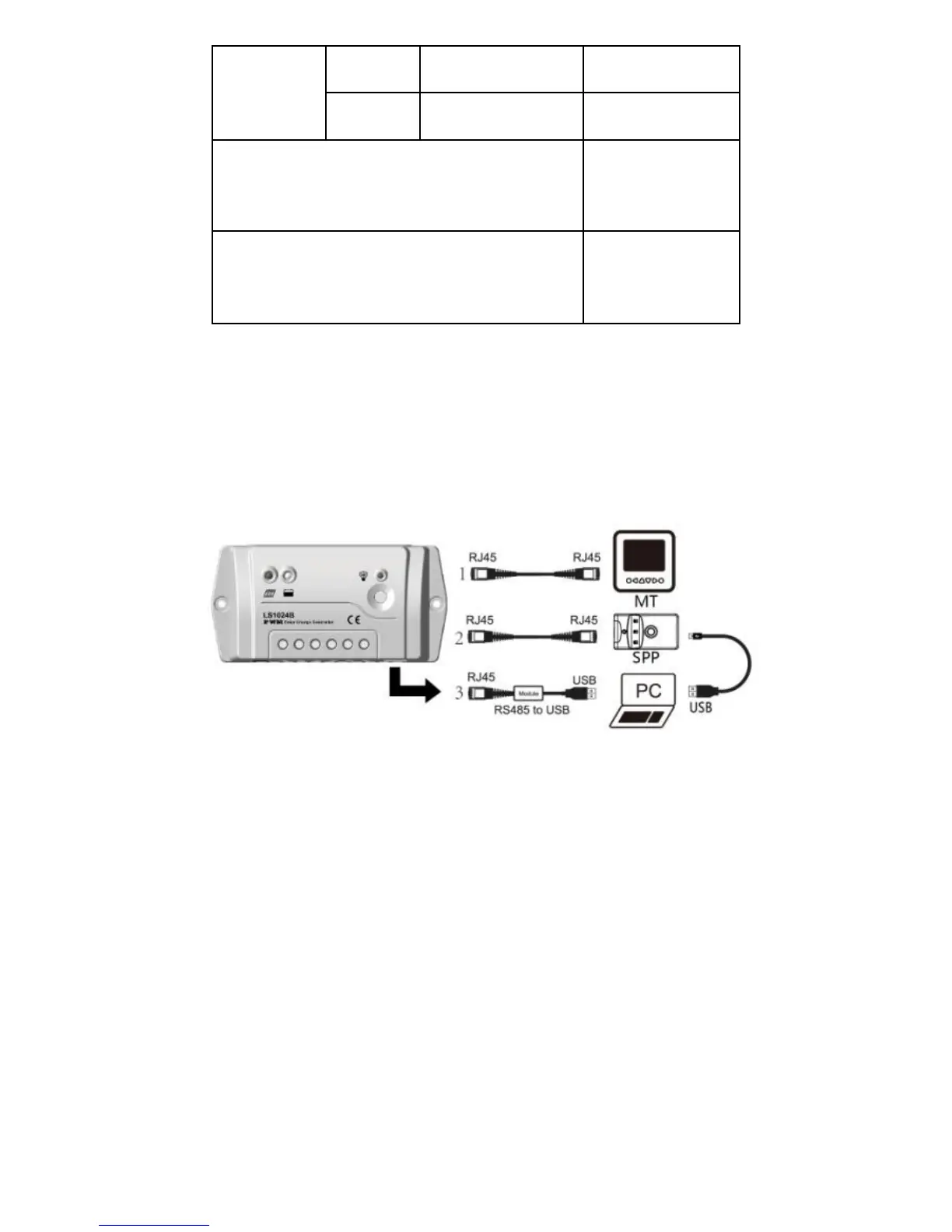

Three methods to program the controller:
1-Remote Meter,MT50/MT100(Use standard network communication
cable with CC-RS485-RS485-200U-MT）
2-Super Parameter Programmer, SPP-01(Use standard network
communication cable with CC-RS485-RS485-200U）
This method can realize one-key setting operation which is suitable for
bulk quantity products setting or applied in the projects..
3–PC monitoring setting software “Solar Station Monitor”（Use
dedicated RS485 to USB communication cable with
CC-USB-RS485-150U）
