Epsolar MT50 - Wall Installation Steps

5
Mechanical
parameter
Parameter
Overall
dimension
114 x 114 x 48.2mm
Mounting
dimension
84x 84mm
Terminal
Φ5

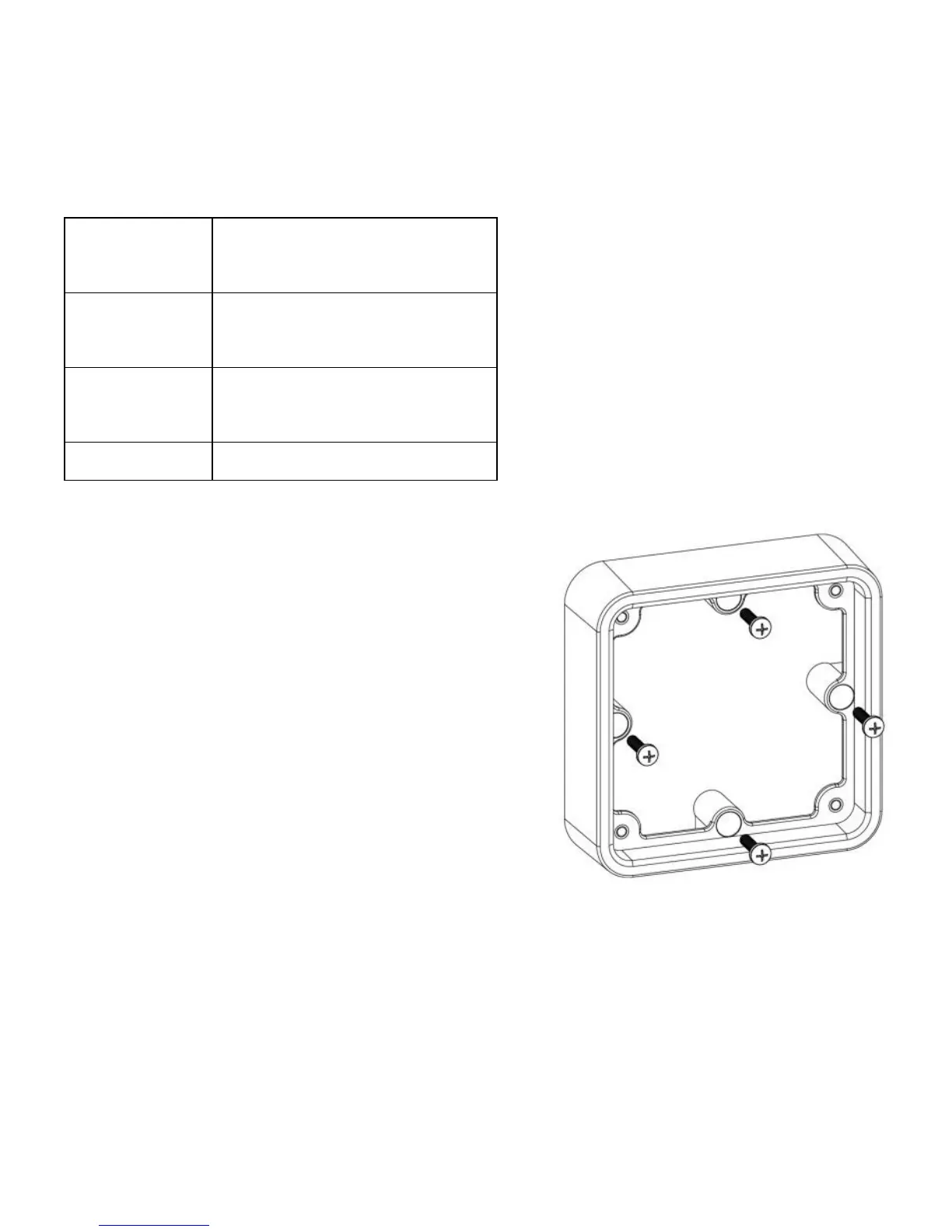

Wall installation steps：
Step1: Locate and drill screw holes
based on the Frame Mounting dimension
of the base, and erect the plastic
expansion bolts;
Step 2: Use four ST4.2×32 self-tapping
screws to fix the Frame;
Frame Mounting
