Epsolar Tracer-1206RN User Manual

8

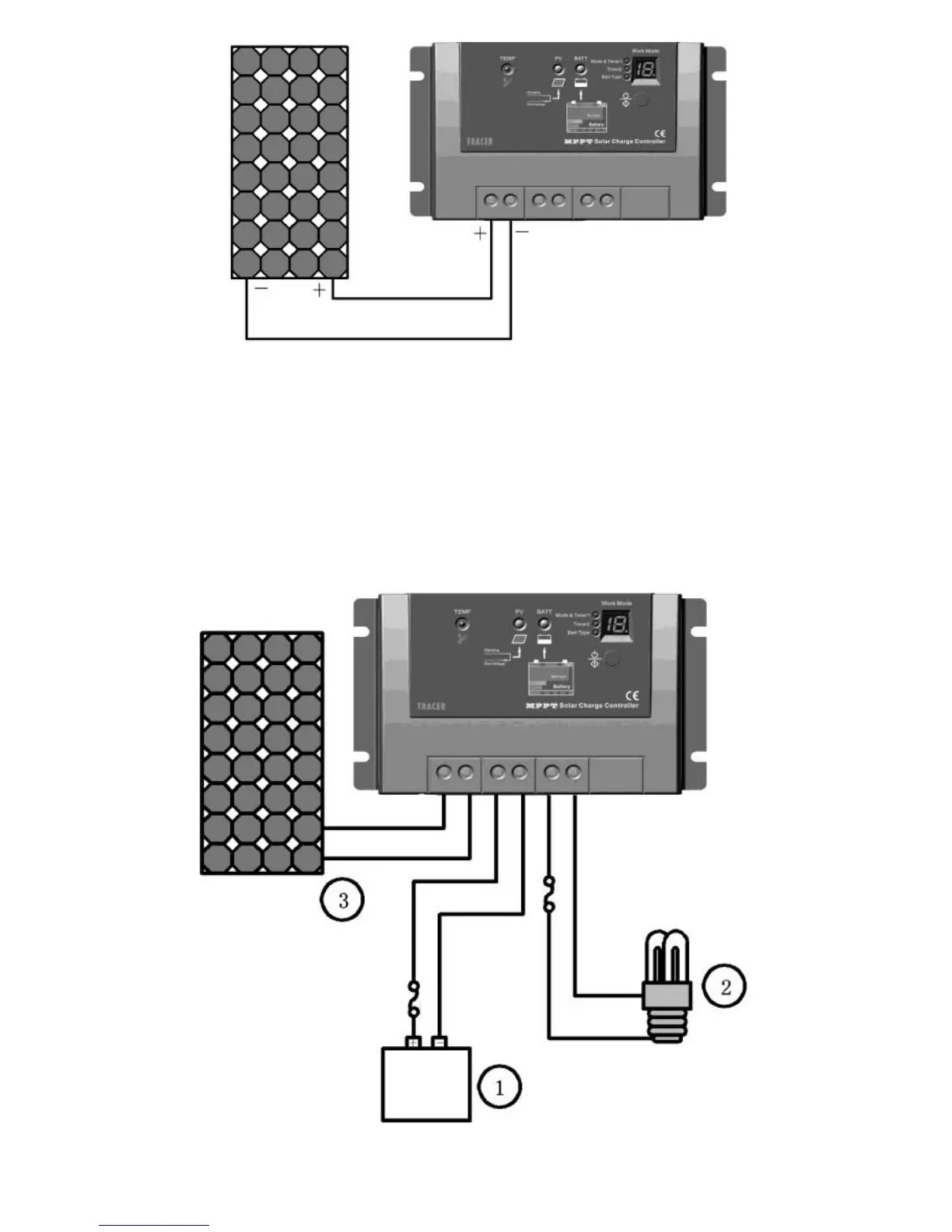

Figure3-4 Solar Module wiring
Step 4: Accessories (option)
Install Remote Meter (purchased separately) if required. Refer to the instructions
provided for detailed installation procedures.
Step 5: Confirm Wiring
Double-check the wiring in step1 through 4. Confirm correct polarity at each
connection. Verify that all six power terminals are tightened.
Figure3-5 System Wiring review
Solar Module
Solar Module
Fuse
Fuse
Load
Battery
