Epsolar Tracer-1215RN User Manual

3
The features of Tracer controller:
1 – Temperature Sensor
Measure ambient temperature and make temperature compensation for charging and
discharging.
2 – Charging Status LED Indicator
An LED indicator that shows charging status and overvoltage of battery.
3 – Battery Status LED Indicator
An LED indicator that shows battery status or system errors.
4 – Setting Indicator
Corresponding indicator will be on when set timer1, timer2 and battery type.
5 – LED Digital Display
Display the load work mode and status.
6 – Setting Button (in manual mode used for load ON/OFF)
Set load work mode and select battery type.
7 – Solar Module Terminals
Connect solar modules.
8 – Battery Terminals
Connect batteries.
9 – Load Terminals
Connect loads.
10 – RJ45 Communication Interface
Communicate with remote meter MT-5.

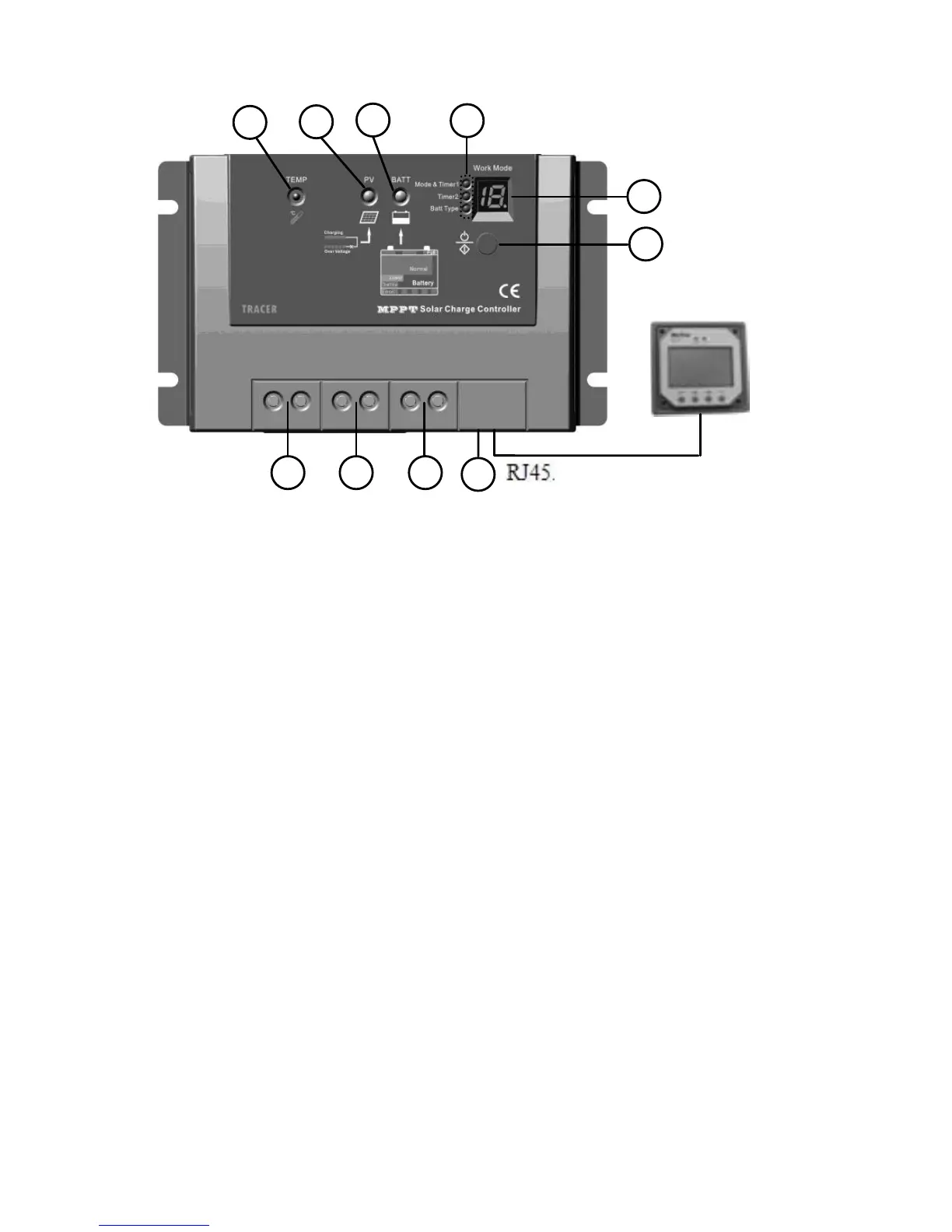

Figure 2-1 Tracer Characteristics
5
6
7
1
5
6
7
6
1
3
1
2
1
5
1
1
1
4
1
10
9
8
7
1
1
1
1
