Epson EB-670 Installation Guide

Installation Guide
7

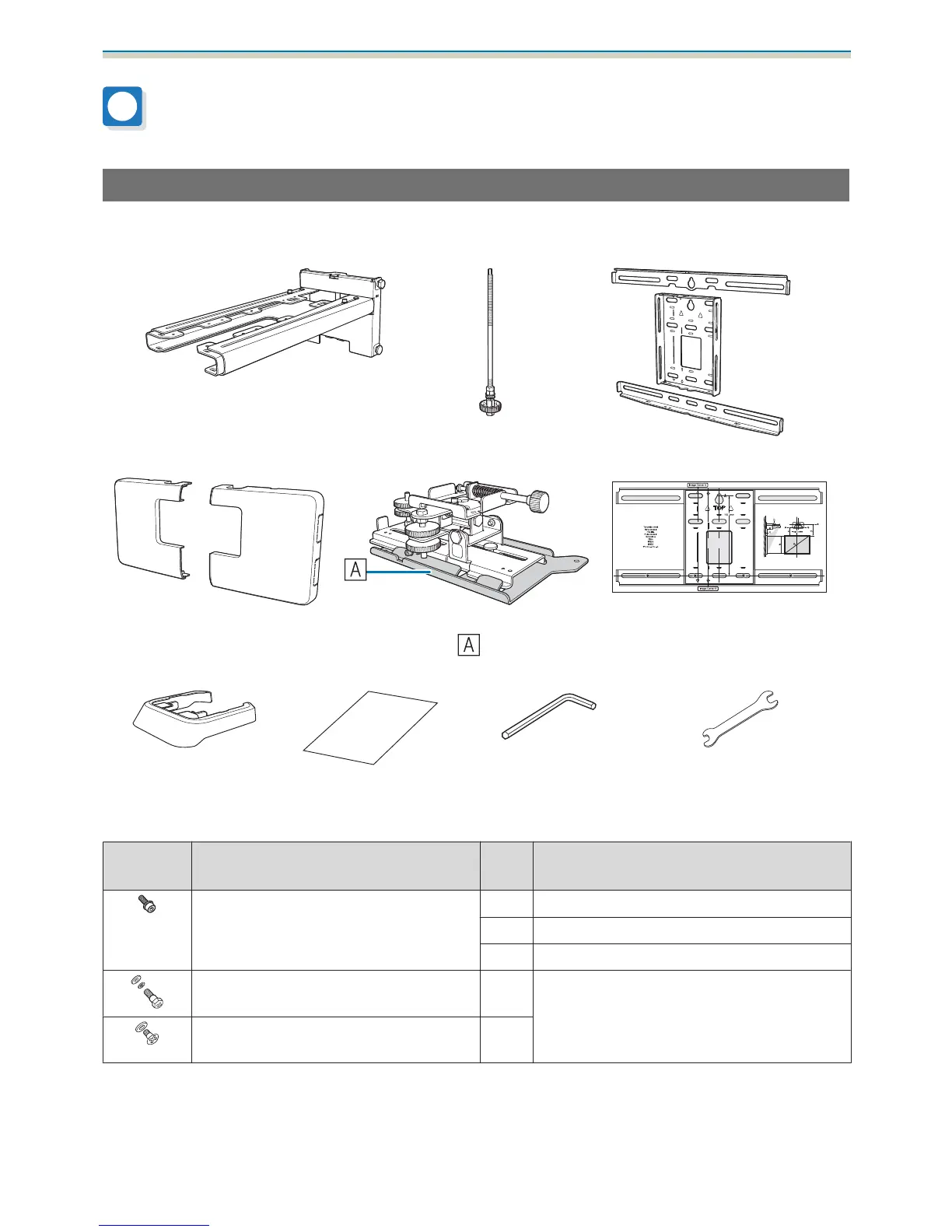

Package Contents
Setting plate
The following supplied items are necessary to mount the projector on a wall. Confirm that you have all items
before beginning.
Setting plate Hexagonal axis Wall plate
Wall plate cover 3-axis adjustment unit
*The slide plate (
) is secured dur-
ing shipping.
Template sheet
(for installing the wall plate)
End cap Masking sticker Hexagon wrench (for M4) Open-ended spanner
13 mm (for M8 and M6),
6 mm (for hexagonal axis)
Shape Name Quan-
tity
Application
M4 x 12 mm hexagon socket head cap bolt
with washer/spring washer
5For wall plate assembly
4 For 3-axis adjustment unit/arm installation
4 For slide plate/projector installation
M6 x 20 mm hexagon shoulder head bolt
with washer/spring washer
1 For setting plate/wall plate installation
M6 x 20 mm cross recessed head shoulder
screws with plastic washers
3
•
Use the bolts or screws supplied with this product to install it as directed in this guide. Do not substitute these bolts
with any other types.
•
You need to use commercially available M10 x 60 mm anchors (at least 4) and one M10 screw to attach the wall plate
to the wall.
•
Gather the tools and parts you need before you begin installation.

Epson EB-670 Specifications

General

Matrix size	0.55 \
Number of colors	1.073 billion colors
Native aspect ratio	4:3
Projection distance	- m
Projection technology	3LCD
Contrast ratio (dynamic)	14000:1
Contrast ratio (typical)	300:1
Screen size compatibility	56 - 93 \
Projection distance (tele)	0 - 32 m
Projection distance (wide)	0 - 0.4 m
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	±3 °
Projector brightness (economic mode)	1800 ANSI lumens
Noise level	35 dB
Country of origin	Philippines
2D/3D frequency image	100 - 120 Hz
On Screen Display (OSD)	Yes
Noise level (economic mode)	28 dB
Mac operating systems supported	Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
RMS rated power	16 W
Number of built-in speakers	1
Focus	Manual
Digital zoom	1.35 x
Focal length range	0 - 3.76 mm
Placement	Wall
Product type	Ultra short throw projector
Product color	Grey, White
Cable lock slot type	Kensington
Built-in display	No
Lamp power	215 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	10000 h
Power source	AC
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.39 W
Power consumption (typical)	311 W
Power consumption (PowerSave)	226 W
Color modes (2D)	Cinema, Dynamic
Video processing	10 bit
Video color modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
Analog signal format system	-
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232C
USB 2.0 ports quantity	2
S-Video inputs quantity	0
VGA (D-Sub) ports quantity	3
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Cables included	USB
Bundled software	EasyMP Monitor, EasyMP Multi PC Projection
Remote control type	IR
Pallet width	800 mm
Pallet height	150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	12 pc(s)
Quantity per pallet layer	2 pc(s)

Weight and Dimensions

Depth	400 mm
Width	367 mm
Height	149 mm
Weight	5700 g
Package depth	730 mm
Package width	490 mm
Package height	335 mm
Package weight	18752 g
