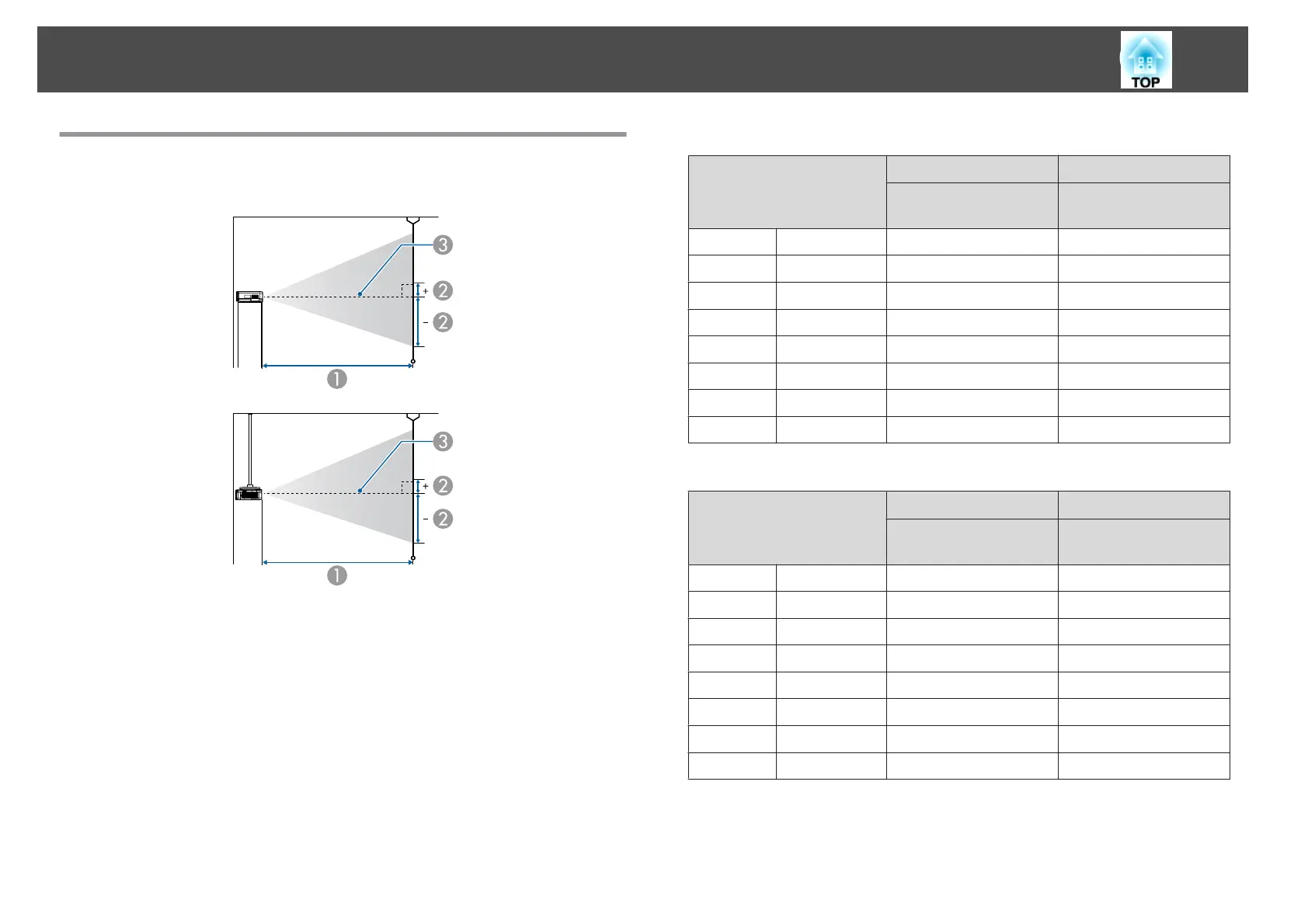

Projection Distance for EB-L1755U/EB-L1750U/EB-
L1505UH/EB-L1500UH
A
Projection distance
B
is the distance from the center of the lens to the base of the screen. This
changes depending on the setting for vertical lens shift.
C
Center of lens
ELPLM15/ELPLM09/ELPLS04
This section shows the projection distances for models equipped with
standard lenses.
Unit: cm
4:3 Screen Size
AB
Minimum (Wide) to
Maximum (Tele)
Vertical Lens Shift
Bottom to Top
60" 122x91 226 to 370 -101 to +9
80" 163x122 304 to 497 -134 to +12
100" 203x152 383 to 623 -168 to +15
120" 244x183 461 to 749 -201 to +18
150" 305x229 578 to 938 -252 to +23
200" 406x305 773 to 1253 -335 to +31
250" 508x381 969 to 1569 -419 to +38
440" 894x671 1711 to 2767 -738 to +67
Unit: cm
16:9 Screen Size
AB
Minimum (Wide) to
Maximum (Tele)
Vertical Lens Shift
Bottom to Top
60" 133x75 205 to 336 -87 to +13
80" 177x100 276 to 450 -116 to +17
100" 221x125 347 to 565 -145 to +21
120" 266x149 417 to 679 -174 to +25
150" 332x187 524 to 851 -218 to +31
200" 443x249 701 to 1137 -291 to +42
250" 553x311 879 to 1423 -363 to +52
440" 974x548 1552 to 2511 -640 to +92
Screen Size and Projection Distance
241
