Epson EB-S05 User Manual

Projector Parts and Functions
13
Name Function
D
Front adjustable foot When the projector is set up on a surface such as a
desk, extend the foot to adjust the position of the
image.
gg Related Links
• "Installing a Security Cable" p.77

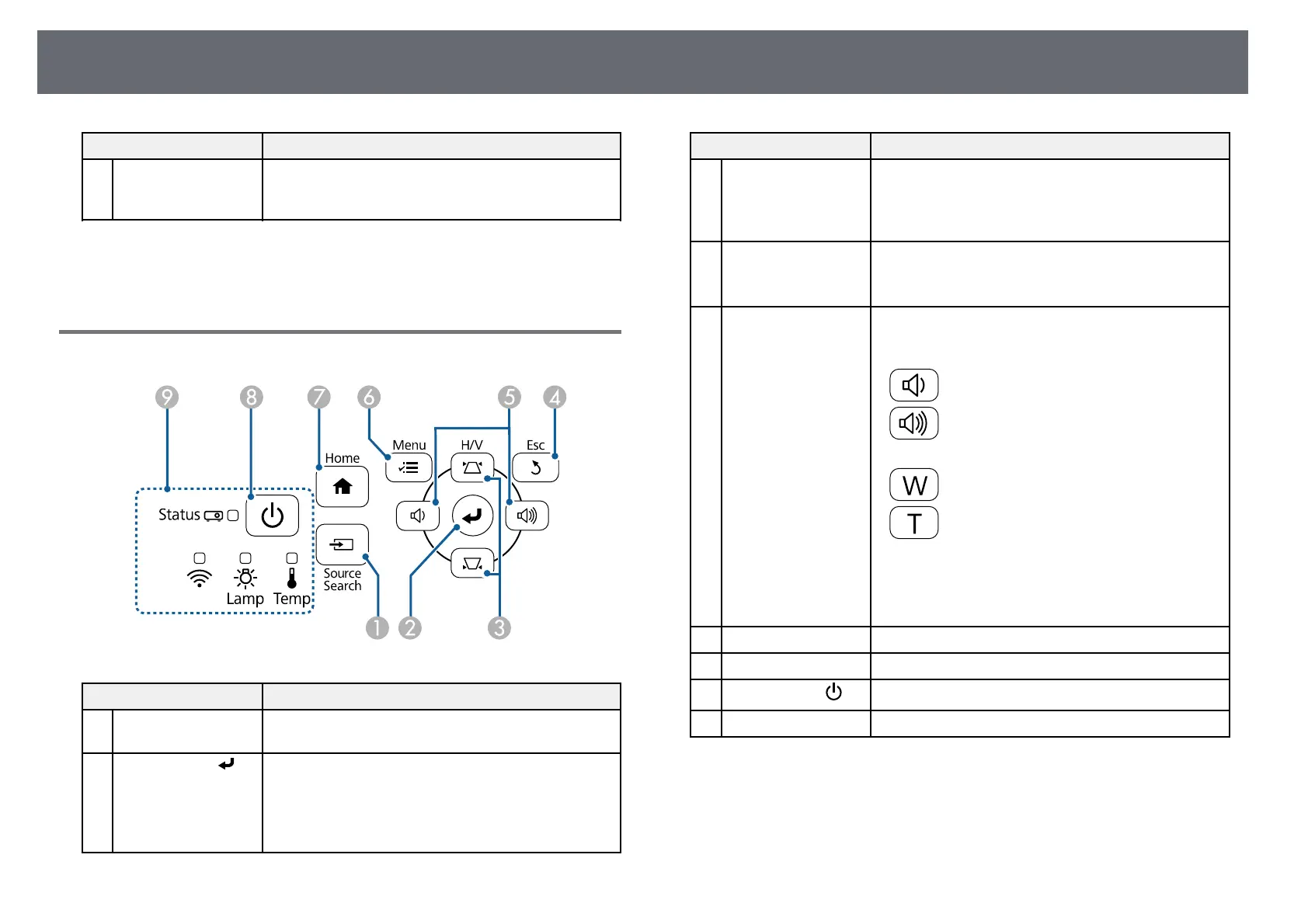

Projector Parts - Control Panel
Name Function
A
[Source Search]
button
Swithces to the next input source.
B
[Enter] button [ ] Enters the current selection and moves to the next level
while displaying the projector's menu or help.
Optimizes Tracking, Sync., and Position in the
projector's Signal menu while projecting an analog
RGB signal from the Computer port.
Name Function
C
Keystone adjustment
buttons and arrow
buttons
Displays the Keystone screen allowing you to correct
keystone distortion.
Selects menu items while displaying the projector's
menu or help.
D
[Esc] button Stops the current function.
Moves back to the previous menu level while
displaying the projector's menu.
E
Volume buttons and
arrow buttons
Wide/Tele buttons
• EB‑U42/EB‑W42/EB‑W41/EB‑X41/EB‑U05/EB‑W05/
EB‑X05/EB‑U140/EB‑W140/EB‑X140/EB‑X450/EB‑X
400:
: Decreases the volume.
: Increases the volume.
• EB‑S41/EB‑S05/EB‑S140/EB‑S400:
: Enlarges the size of the projected image.
: Reduces the size of the projected image.
Corrects keystone distortion in the horizontal direction
when the Keystone screen is displayed.
Selects menu items while displaying the projector's
menu or help.
F
[Menu] button Displays and closes the projector's menu.
G
[Home] button Displays and closes the Home screen.
H
Power button [ ]
Turns the projector on or off.
I
Indicators Indicates the projector's status.
gg Related Links
• "Input Signal Settings - Signal Menu" p.102
• "Home Screen" p.31
• "Projector Indicator Status" p.137
• "Correcting the Image Shape with the Keystone Buttons" p.39
• "Resizing the Image with the Buttons" p.44

Epson EB-S05 Specifications

General

Matrix size	0.55 \
Number of colors	1.073 billion colors
Native aspect ratio	4:3
Projection distance	1.77 - 2.4 m
Vertical scan range	100 - 120 Hz
Projection technology	3LCD
Contrast ratio (typical)	15000:1
Screen size compatibility	30 - 350 \
Projector native resolution	SVGA (800x600)
Keystone correction, vertical	-30 - 30 °
Projector brightness (economic mode)	1985 ANSI lumens
Lamp type	UHE
Lamp power	210 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	6000 h
Service life of light source (economic mode)	10000 h
Full HD	No
Color modes (2D)	Cinema, Dynamic
Video processing	10 bit
Video color modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
Analog signal format system	-
Focus	Manual
Throw ratio	1.45 - 1.96:1
Zoom capability	Yes
Fixed focal length	16.7 mm
Focal length range	- mm
Aperture range (F-F)	1.44 - 1.44
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	282 W
Power consumption (economy mode)	203 W
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	28 dB
Ethernet LAN (RJ-45) ports	0
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
HDMI connector type	Full-size
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 2.0 Type-B ports quantity	1
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Market positioning	Presentation
Cable lock slot type	Kensington
RMS rated power	2 W
Pallet width	800 mm
Pallet height	3440 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	84 pc(s)
Quantity per pallet layer	6 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	237 mm
Width	302 mm
Height	82 mm
Weight	2400 g
Package depth	375 mm
Package width	145 mm
Package height	335 mm
Package weight	3.46 g
